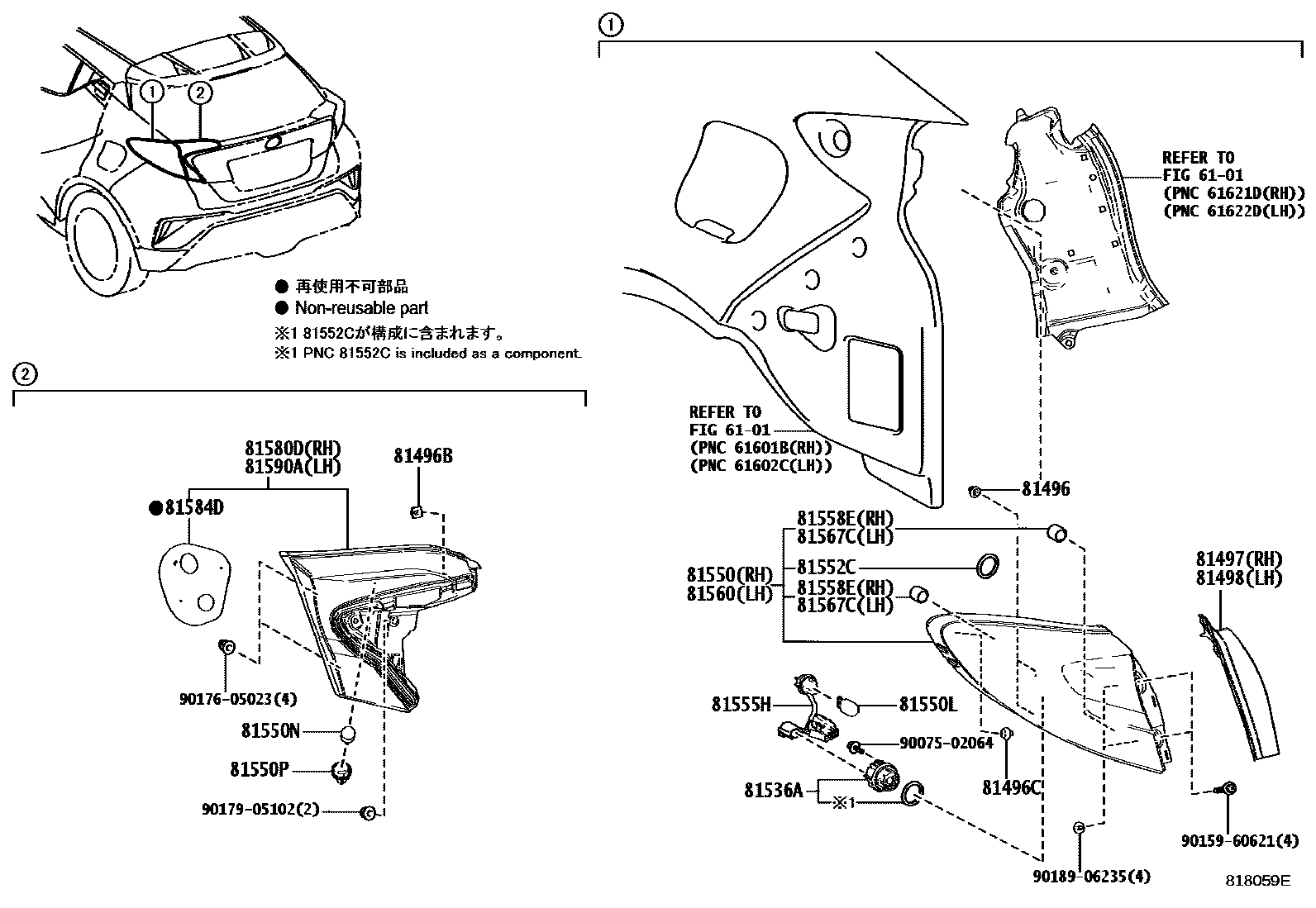

REAR COMBINATION LAMP

0001 1BULB TYPE(TURN SIGNAL LAMP) 0002 1LED TYPE(TURN SIGNAL LAMP) 0003 1LED TYPE(TURN SIGNAL LAMP)

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-52020iNGX10,50201612-201910

81496BGUIDE, REAR LAMP

main76817-26040iNGX10,50201612-201910

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010iNGX10,50201612-201910

81497COVER, REAR COMBINATION LAMP, RH

main81497-10010iNGX10,50201612-201910

81498COVER, REAR COMBINATION LAMP, LH

main81498-10010iNGX10,50201612-201910

81536ALED, REAR COMBINATION LAMP

main81536-52C80iNGX10,50,ZYX10..ACTV201612-201910

81550LAMP ASSY, REAR COMBINATION, RH

main81550-10410iNGX10,50,ZYX10..LUX201910

main81551-10380iNGX10,50201612-201910

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021iNGX10,50201612-201910

12V 21W,AMBER

81550NBULB, BACK UP LAMP

main90981-11059iNGX10,50201612-201910

12V 16W

81550PSOCKET, BACK UP LAMP

main90075-60001iNGX10,50201612-201910

81552CGASKET, REAR COMBINATION LAMP

main90075-68010iNGX10,50201612-201910

81555HSOCKET & WIRE, REAR COMBINATION LAMP

main81555-10380iNGX10,50,ZYX10..ACTV201612-201910

81558ECOVER, REAR COMBINATION LAMP, RH

main90075-15512iNGX10,50201612-201910

81560LAMP ASSY, REAR COMBINATION, LH

main81560-10410iNGX10,50,ZYX10..LUX201910

main81561-10380iNGX10,50201612-201910

81567CCOVER, REAR COMBINATION LAMP, LH

main90075-15512iNGX10,50201612-201910

81580DLAMP ASSY, REAR, RH

main81580-10030iNGX10,50,ZYX10..LUX201910

main81581-10010iNGX10,50201612-201711

sub81581-10011

main81581-10011iNGX10,50201711-201910

81584DGASKET, REAR LAMP

main81584-10010iNGX10,50201612-201910

81590ALAMP ASSY, REAR, LH

main81590-10030iNGX10,50,ZYX10..LUX201910

main81591-10010iNGX10,50201612-201711

sub81591-10011

main81591-10011iNGX10,50201711-201910

9007502064

main90075-02064

9015960621

main90159-60621

9017605023

main90176-05023

9017905102

main90179-05102

9018906235

main90189-06235

24 parts on this diagram · 3 diagrams in section
