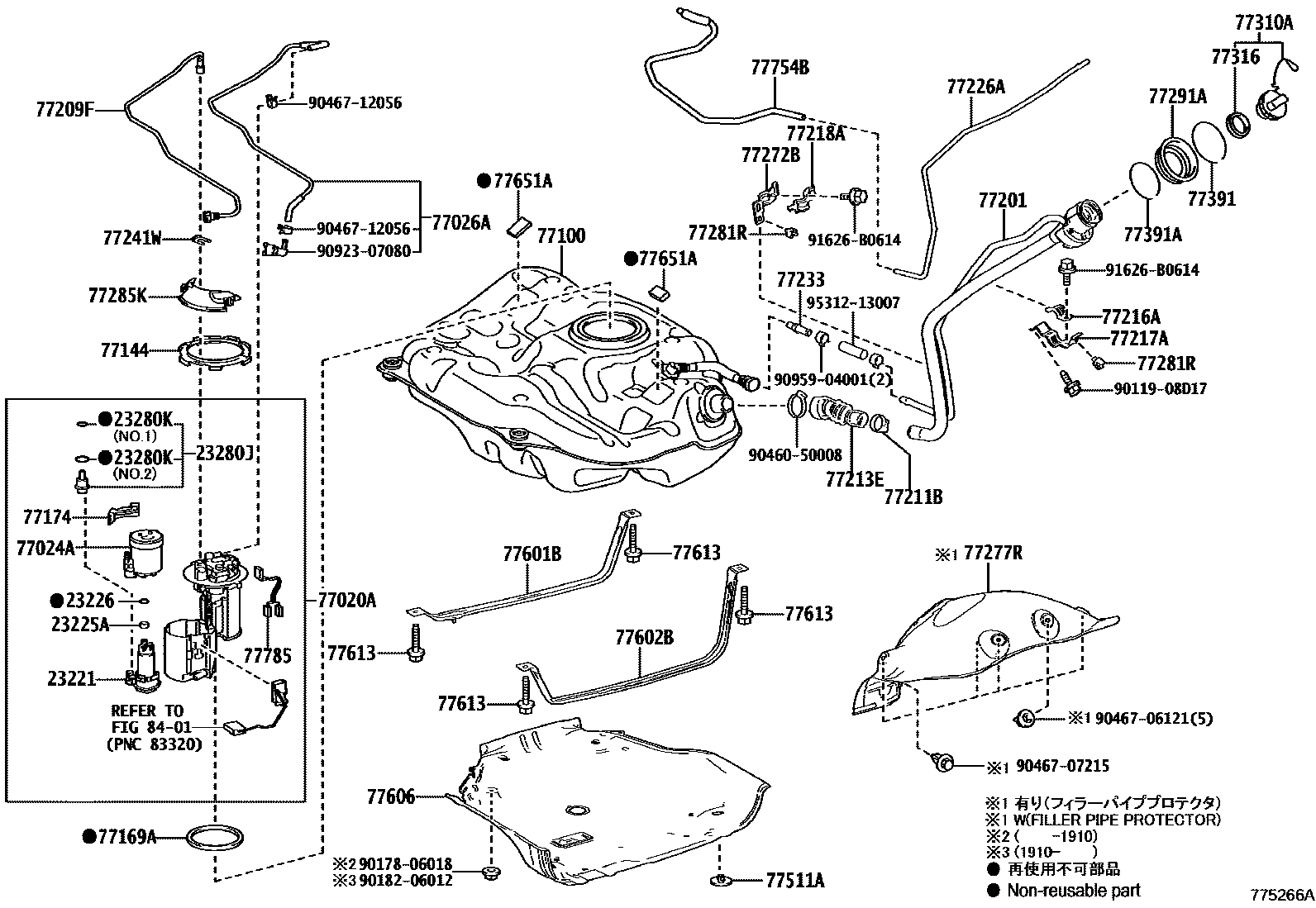

FUEL TANK & TUBE
23225ASPACER, FUEL PUMP
23226RING, O(FOR FUEL PUMP)
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024APLATE SUB-ASSY, FUEL SUCTION
77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77201PIPE SUB-ASSY, FUEL TANK INLET
77211BCLAMP (FOR FUEL FILLER PIPE)
77213EHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3
77226ATUBE, FUEL TANK BREATHER, NO.6
77233JOINT, FUEL HOSE
77272BSUPPORT, BREATHER TUBE, NO.1
77277RPROTECTOR, FUEL TANK FILLER PIPE
77281RCLAMP, FUEL FILLER PIPE, NO.2
77291ASHIELD, FUEL TANK FILLER PIPE
77316GASKET, FUEL TANK CAP
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77511ABRACKET, FUEL TANK
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77613BOLT, FUEL TANK BAND SET
77651ACUSHION, FUEL TANK, NO.1
77754BHOSE, CHARCOAL CANISTER OUTLET
8401
9011908D17
main90119-08D17
9017806018
main90178-06018
9018206012
main90182-06012
9046050008
main90460-50008
9046706121
main90467-06121
9046707215
main90467-07215
9046712056
main90467-12056
9092307080
main90923-07080
9095904001
main90959-04001
91626B0614
main91626-B0614
9531213007
main95312-13007
51 parts on this diagram · 6 diagrams in section
