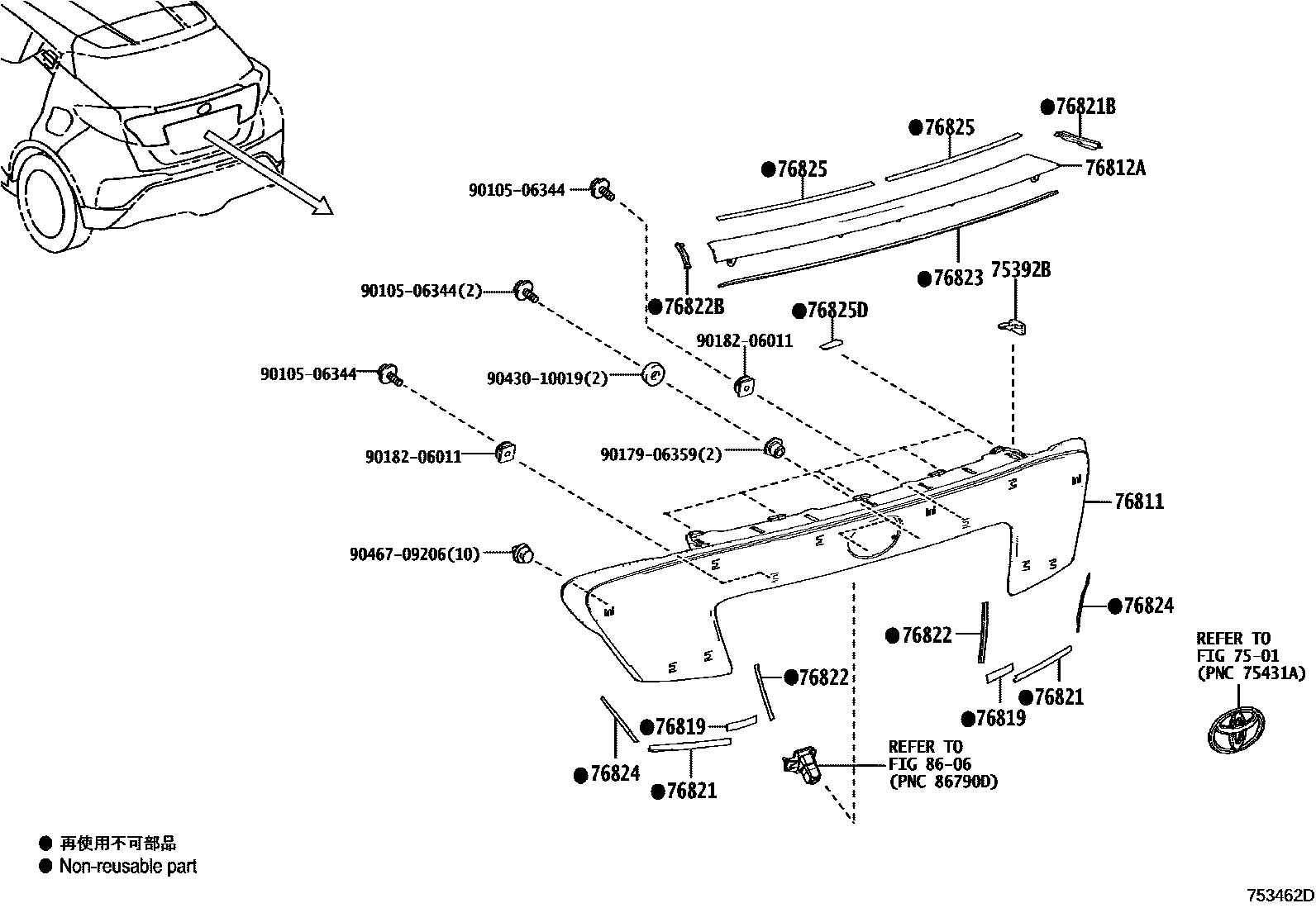

REAR MOULDING

0001 1 0002 1

7501

75392BRETEINER, OUTSIDE MOULDING, NO.1

main75392-35200iNGX10,50¥130201612-201910

76811GARNISH, BACK DOOR, OUTSIDE

main76811-10900iNGX10,50,ZYX10201612-201910

76812AGARNISH, BACK DOOR, OUTSIDE NO.2

main76812-10050iNGX10,50,ZYX10..LUX¥13,700201910

main76812-10900iNGX10,50201612-201910

main76812-10901iNGX10,50,ZYX10..ACTV201910

76819SEAL, BACK DOOR OUTSIDE GARNISH

main76819-10010iNGX10,50,ZYX10¥570201612-202008

76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER

main76821-10010iNGX10,50¥470201612-201910

76821BPROTECTOR, BACK DOOR GARNISH SIDE, RH

main76841-10010iNGX10,50¥470201612-201910

main76841-10020iNGX10,50,ZYX10..LUX¥470201910

76822PROTECTOR, BACK DOOR GARNISH MOULDING, LOWER

main76822-10010iNGX10,50¥470201612-201910

76822BPROTECTOR, BACK DOOR GARNISH SIDE, LH

main76841-10020iNGX10,50,ZYX10..LUX¥470201910

main76842-10010iNGX10,50¥470201612-201910

76823PROTECTOR, BACK DOOR GARNISH MOULDING, RH

main76823-10020iNGX10,50¥720201612-201910

main76823-10030iNGX10,50,ZYX10..ACTV¥600201910

main76823-10040iNGX10,50,ZYX10..LUX¥600201910

76824PROTECTOR, BACK DOOR GARNISH MOULDING, LH

main76824-10020iNGX10,50¥320201612-201910

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-10040iNGX10,50¥470201612-201910

76825DPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.1

main76835-10020iNGX10,50¥320201612-201910

8606

9010506344

main90105-06344¥60

9017906359

main90179-06359¥80

9018206011

main90182-06011¥100

9043010019

main90430-10019¥80

9046709206

main90467-09206¥80

19 parts on this diagram · 2 diagrams in section
