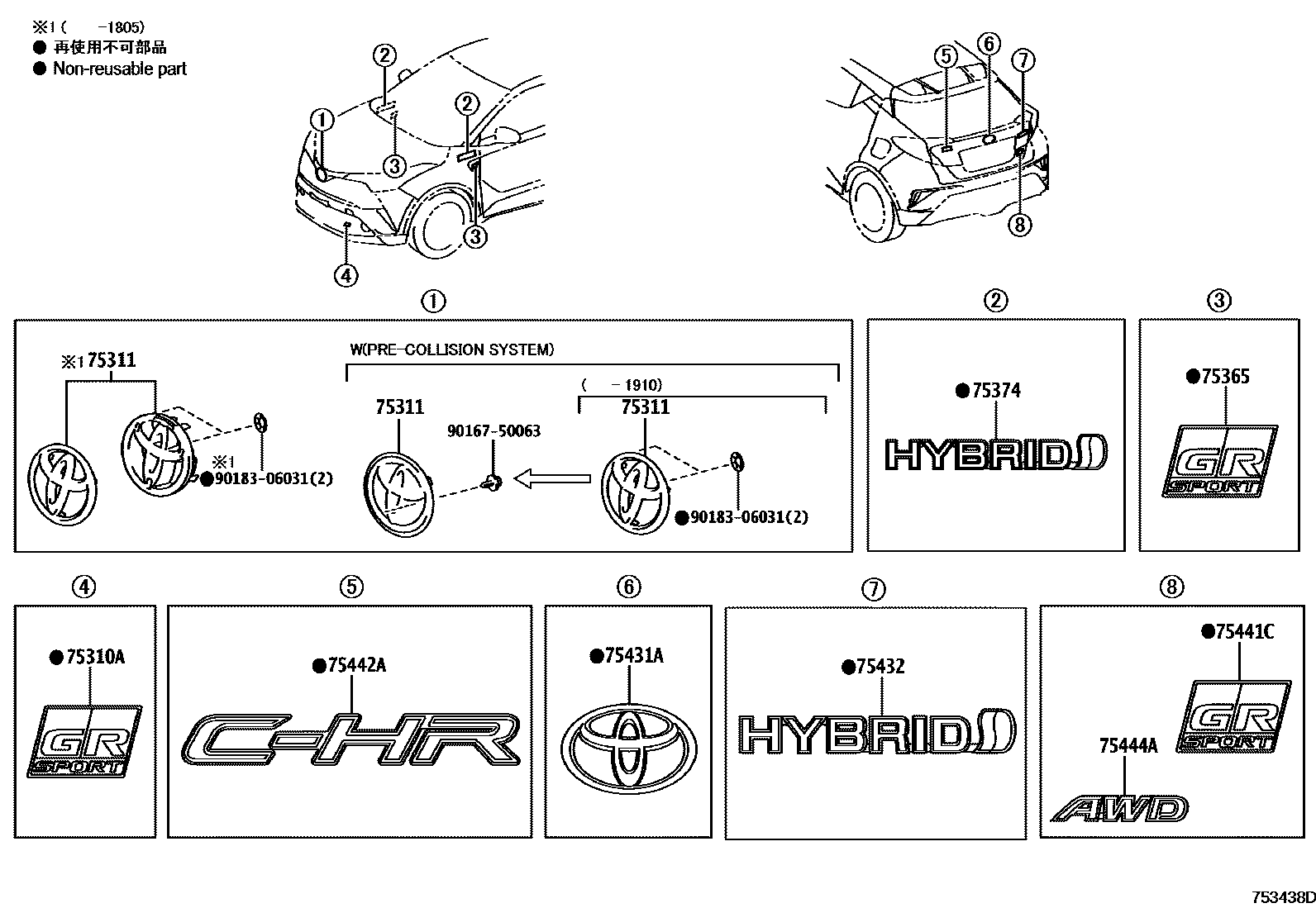

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

75310AEMBLEM ASSY, RADIATOR GRILLE

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main53141-42020iNGX10,50201612-201910

sub53141-42021

main90975-02160iNGX10,50201910

main90975-02161iZYX10201910

75365EMBLEM, FRONT FENDER

main75374-10030

75374EMBLEM, SIDE PANEL

main75374-10010iZYX10201910

RH

main75374-10020iZYX10201910

LH

75431AEMBLEM, BACK DOOR, NO.1

main75403-30020iZYX10201910

main90975-02062iNGX10,50201612-201910

main90975-02070iNGX10,50201910

75432EMBLEM, BACK DOOR, NO.2

main75443-F4021iZYX10201910

HYBRID

75441CPLATE, BACK DOOR NAME

75442APLATE, BACK DOOR NAME, NO.2

main75442-10340iNGX10,50201612-201910

C-HR

75444APLATE, BACK DOOR NAME, NO.4

main75444-F4010iNGX50201612-201910

AWD

9016750063

main90167-50063

9018306031

main90183-06031

11 parts on this diagram · 1 diagram in section
