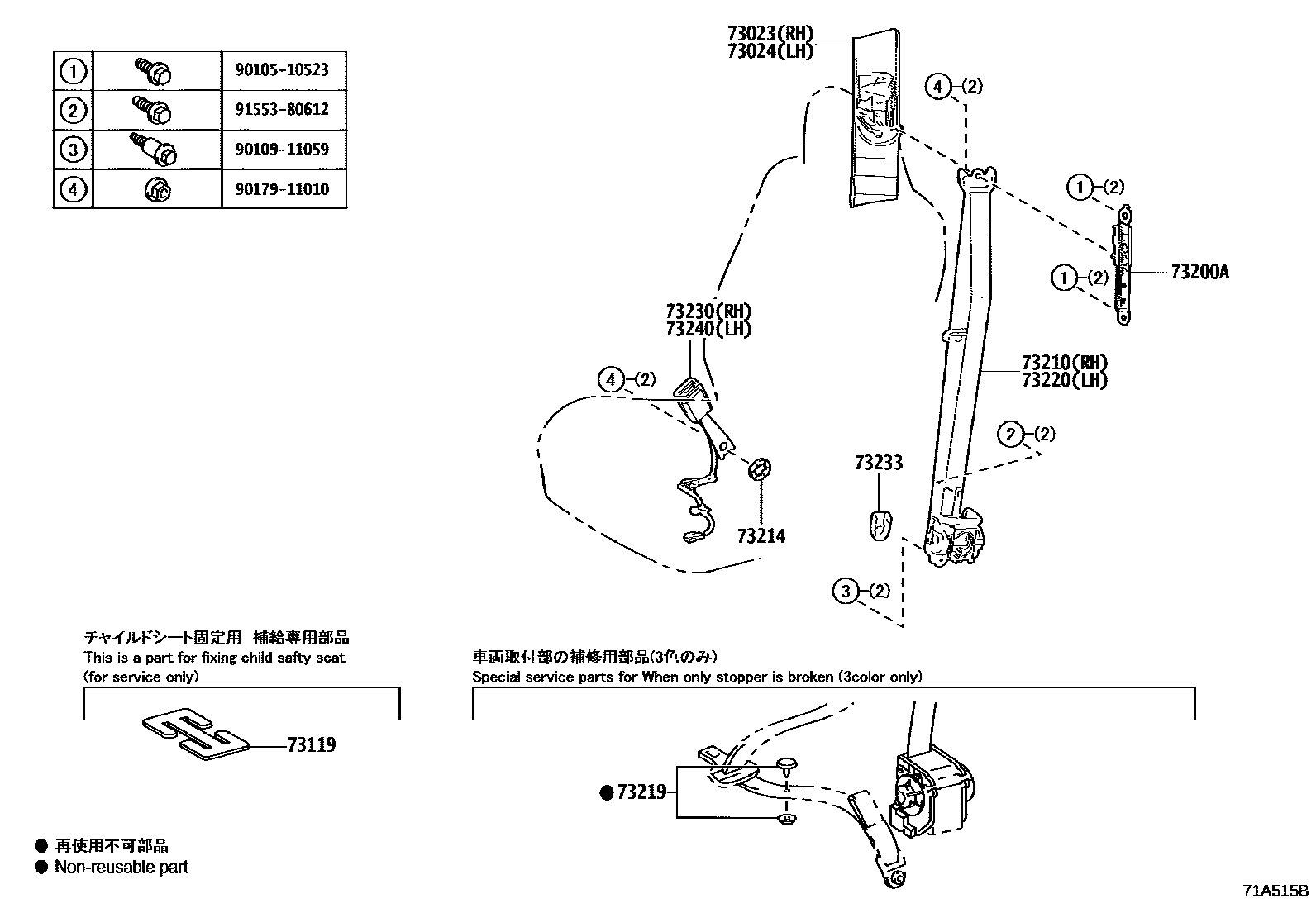

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT BELT 0002 1REAR SEAT BELT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-58010-C1iNGX10,50,ZYX10..ACTV201910

BLACK,TRIM2#,4#

main73023-58010-C1iNGX10,50,ZYX10..ACTV201612-201910

BLACK,TRIM2#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-58010-C1iNGX10,50,ZYX10..LUX201910

BLACK,TRIM2#,4#

sub73024-58010

main73024-58010-C1iNGX10,50201612-201910

BLACK,TRIM2#

sub73024-58010

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iNGX10,50201612-201910

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070iNGX10,50201612-201910

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-10860-C0iNGX10,50201612-201712

BLACK,TRIM2#

main73210-10860-C1iNGX10,50201801-201910

BLACK,TRIM2#

main73210-10860-C1iNGX10,50,ZYX10..LUX201910

BLACK,TRIM2#,4#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010iNGX10,50,ZYX10201612-201910

73219STOPPER, TONGUE PLATE

main73219-33010iNGX10,50,ZYX10201612-201910

BLACK

main73219-33020iNGX10,50201612-201910

GRAY

main73219-33030iNGX10,50,ZYX10201612-201910

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-10720-C0iNGX10,50201612-201712

BLACK,TRIM2#

main73220-10720-C1iNGX10,50,ZYX10..ACTV201801-201910

BLACK,TRIM2#

main73220-10720-C1iNGX10,50,ZYX10..LUX201910

BLACK,TRIM2#,4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-10410-C1iNGX10,50201612-201910

BLACK,TRIM2#

main73230-10410-C1iNGX10,50,ZYX10..LUX201910

BLACK,TRIM2#,4#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C1iNGX10,50,ZYX10..ACTV201910

BLACK,TRIM2#,4#

sub73233-60020

sub73233-35010

main73233-60020-C1iNGX10,50201612-201910

BLACK,TRIM2#

sub73233-60020

sub73233-35010

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-10420-C1iNGX10,50201612-201910

BLACK,TRIM2#

main73230-10420-C1iNGX10,50,ZYX10..LUX201910

BLACK,TRIM2#,4#

9010510523

main90105-10523

9010911059

main90109-11059

9017911010

main90179-11010

9155380612

main91553-80612

15 parts on this diagram · 2 diagrams in section
