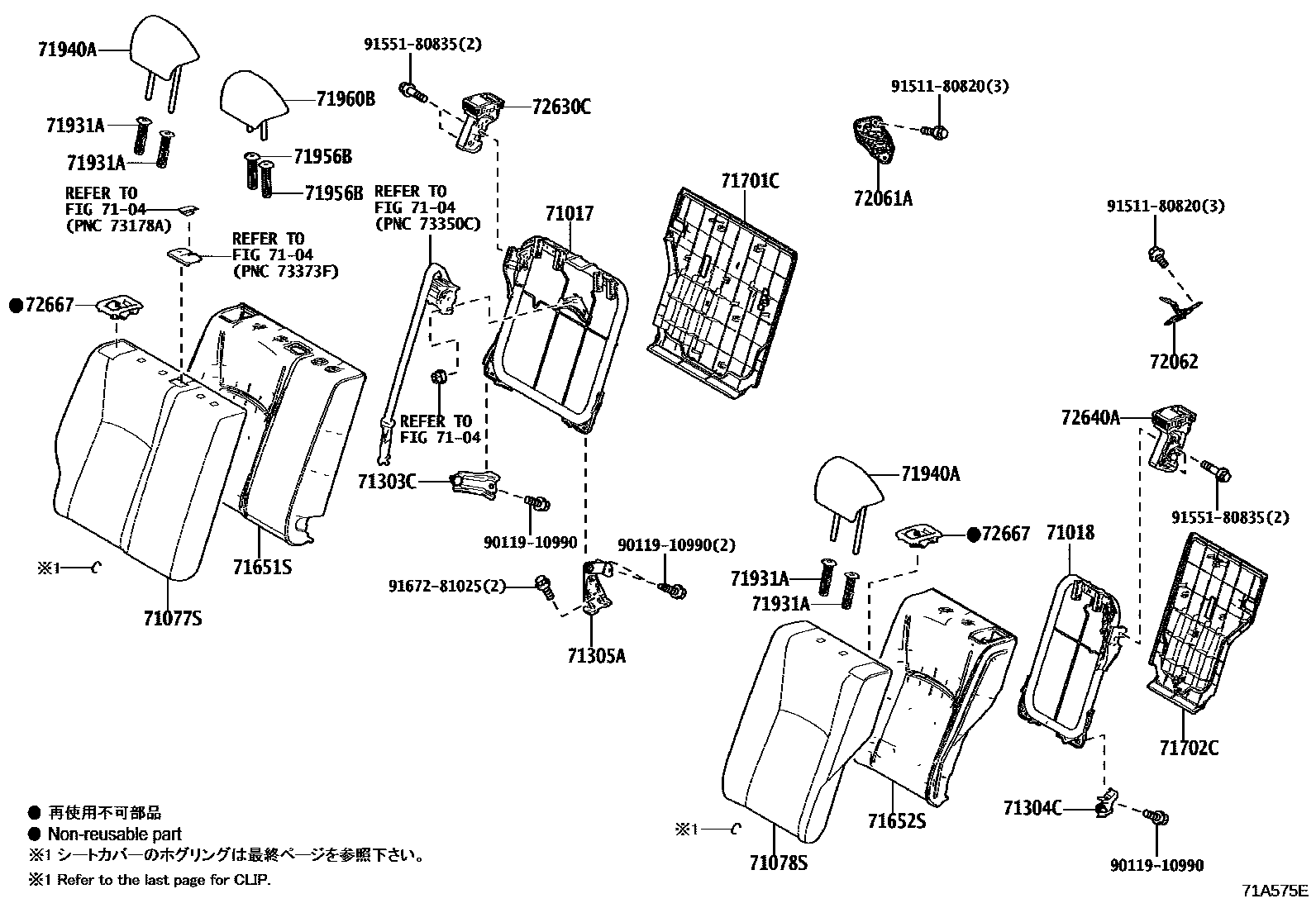

REAR SEAT & SEAT TRACK

0001 1SEAT BACK 0002 1SEAT CUSHION 0003 1SEAT CUSHION 0004 1SEAT CUSHION 0005 1CLIP

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-10120iNGX10,50¥25,600201612-201807

sub71017-47150¥18,500

main71017-47150iNGX10,50¥18,500201808-201910

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-10060iNGX10,50¥14,700201612-201807

sub71018-47100¥11,100

main71018-47100iNGX10,50¥11,100201808-201910

7104

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-10A00-C1iNGX10,50..ACTV201906-201910

BLACK,TRIM2#

main71077-10A00-C2iNGX10,50..ACTV201612-201906

BLACK,TRIM2#

main71077-10A10-C2iNGX10,50..LUX201612-201906

LICORICE,TRIM2#

main71077-10A10-C3iNGX10,50..LUX201906-201910

LICORICE,TRIM2#

main71077-10B10-C4iNGX10,50,ZYX10..ACTV201910

BLACK,TRIM2#

main71077-10B30-C3iNGX10,50,ZYX10..LUX201910-202202

BLACK,TRIM2#

main71077-10B30-C4iNGX10,50,ZYX10..LUX202202-202303

BLACK,TRIM2#

main71077-10B31-C4iNGX10,50,ZYX10..LUX202303

BLACK,TRIM2#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-10A00-C1iNGX10,50..ACTV201906-201910

BLACK,TRIM2#

main71078-10A00-C3iNGX10,50..ACTV201612-201805

BLACK,TRIM2#

main71078-10A00-C4iNGX10,50..ACTV201805-201906

BLACK,TRIM2#

main71078-10A10-C2iNGX10,50..LUX201805-201906

LICORICE,TRIM2#

sub71078-10A10¥24,600

main71078-10A10-C5iNGX10,50..LUX201906-201910

LICORICE,TRIM2#

sub71078-10A10¥24,600

main71078-10A10-E1iNGX10,50..LUX201612-201805

LICORICE,TRIM2#

sub71078-10A10¥24,600

main71078-10A80-B4iNGX10,50,ZYX10..ACTV201910

DARK GREY,TRIM2#

main71078-10B00-C3iNGX10,50,ZYX10..LUX201910

BLACK,TRIM2#

71303CHINGE SUB-ASSY, REAR SEATBACK, RH

main71303-10060iNGX10,50¥1,080201612-201910

71304CHINGE SUB-ASSY, REAR SEATBACK, LH

main71304-10100iNGX10,50¥1,080201612-201910

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-10060iNGX10,50¥3,490201612-201910

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-10310iNGX10,50,ZYX10¥11,200201612-201910

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-10230iNGX10,50¥7,400201612-201910

71701CBOARD SUB-ASSY, REAR SEATBACK, RH

main71701-10010iNGX10,50¥9,300201612-201910

71702CBOARD SUB-ASSY, REAR SEATBACK, LH

main71702-10010iNGX10,50¥7,600201612-201910

71931ASUPPORT, REAR SEAT HEADREST

main71930-47050-C5iNGX10,50,ZYX10..ACTV201612-201910

W(LOCK),BLACK,TRIM2#

main71930-47050-C5iNGX10,50,ZYX10..LUX201910

W(LOCK),BLACK,TRIM2#,4#

main71931-47030-C4iNGX10,50,ZYX10..LUX201910

W/O(LOCK),BLACK,TRIM2#,4#

main71931-47030-C4iNGX10,50201612-201910

W/O(LOCK),BLACK,TRIM2#

71940AHEADREST ASSY, REAR SEAT

main71940-10090-C2iNGX10,50..ACTV201612-201805

BLACK,TRIM2#

sub71940-10090¥22,900

main71940-10090-C4iNGX10,50..ACTV201805-201906

BLACK,TRIM2#

sub71940-10090¥22,900

main71940-10090-C5iNGX10,50..ACTV201906-201910

BLACK,TRIM2#

sub71940-10090¥22,900

main71940-10150-C3iNGX10,50..LUX201612-201711

BLACK,TRIM20

main71940-10150-E1iNGX10,50..LUX201711-201805

LICORICE,TRIM2#

main71940-10150-E1iNGX10,50..LUX201612-201711

LICORICE,TRIM20

main71940-10152iNGX10,50..LUX¥22,900201805-201906

main71940-10152-E6iNGX10,50..LUX201906-201910

LICORICE,TRIM2#

sub71940-10152¥22,900

main71940-10220-B4iNGX10,50,ZYX10..ACTV201910

DARK GREY,TRIM2#

main71940-10230-C4iNGX10,50,ZYX10..LUX201910

BLACK,TRIM2#

71956BSUPPORT, REAR SEAT HEADREST

main71930-47050-C5iNGX10,50,ZYX10..ACTV201910

W(LOCK),BLACK,TRIM2#,4#

main71930-47050-C5iNGX10,50201612-201910

W(LOCK),BLACK,TRIM2#

main71931-47030-C4iNGX10,50201612-201910

W/O(LOCK),BLACK,TRIM2#

main71931-47030-C4iNGX10,50,ZYX10..LUX201910

W/O(LOCK),BLACK,TRIM2#,4#

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-10010-C2iNGX10,50201612-201805

BLACK,TRIM2#

sub71960-10010¥18,400

main71960-10010-C3iNGX10,50201805-201906

BLACK,TRIM2#

sub71960-10010¥18,400

main71960-10010-C4iNGX10,50201906-201910

BLACK,TRIM2#

sub71960-10010¥18,400

main71960-10040-C4iNGX10,50,ZYX10..ACTV201910-202001

DARK GREY,TRIM2#

sub71960-10041¥15,300

main71960-10041-C4iNGX10..ACTV202002-202307

BLACK,TRIM2#

main71960-10050-C4iNGX10,ZYX10..LUX201910-202307

BLACK,TRIM2#

72061ABASE SUB-ASSY, REAR SEATBACK LOCK, RH

main72061-10010iNGX10,50¥3,330201612-201910

72062BASE SUB-ASSY, REAR SEATBACK LOCK, LH

main72062-10010iNGX10,50¥3,010201612-201910

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-47050-C2iNGX10,50,ZYX10..ACTV201910

BLACK,TRIM2#,4#

sub72630-47050¥3,210

main72630-47050-C2iNGX10,50,ZYX10..ACTV201612-201910

BLACK,TRIM2#

sub72630-47050¥3,210

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-47050-C2iNGX10,50,ZYX10..LUX201612-201910

BLACK,TRIM2#

sub72640-47050¥3,210

main72640-47050-C2iNGX10,50,ZYX10..LUX201910

BLACK,TRIM2#,4#

sub72640-47050¥3,210

72667BEZEL, REAR SEATBACK LOCK, UPPER

main72667-47010-C1iNGX10,50201612-201910

BLACK,TRIM2#

main72667-47010-C1iNGX10,50,ZYX10..LUX201910

BLACK,TRIM2#,4#

9011910990

main90119-10990¥100

9151180820

main91511-80820¥80

9155180835

main91551-80835¥80

9167281025

main91672-81025¥120

25 parts on this diagram · 5 diagrams in section
