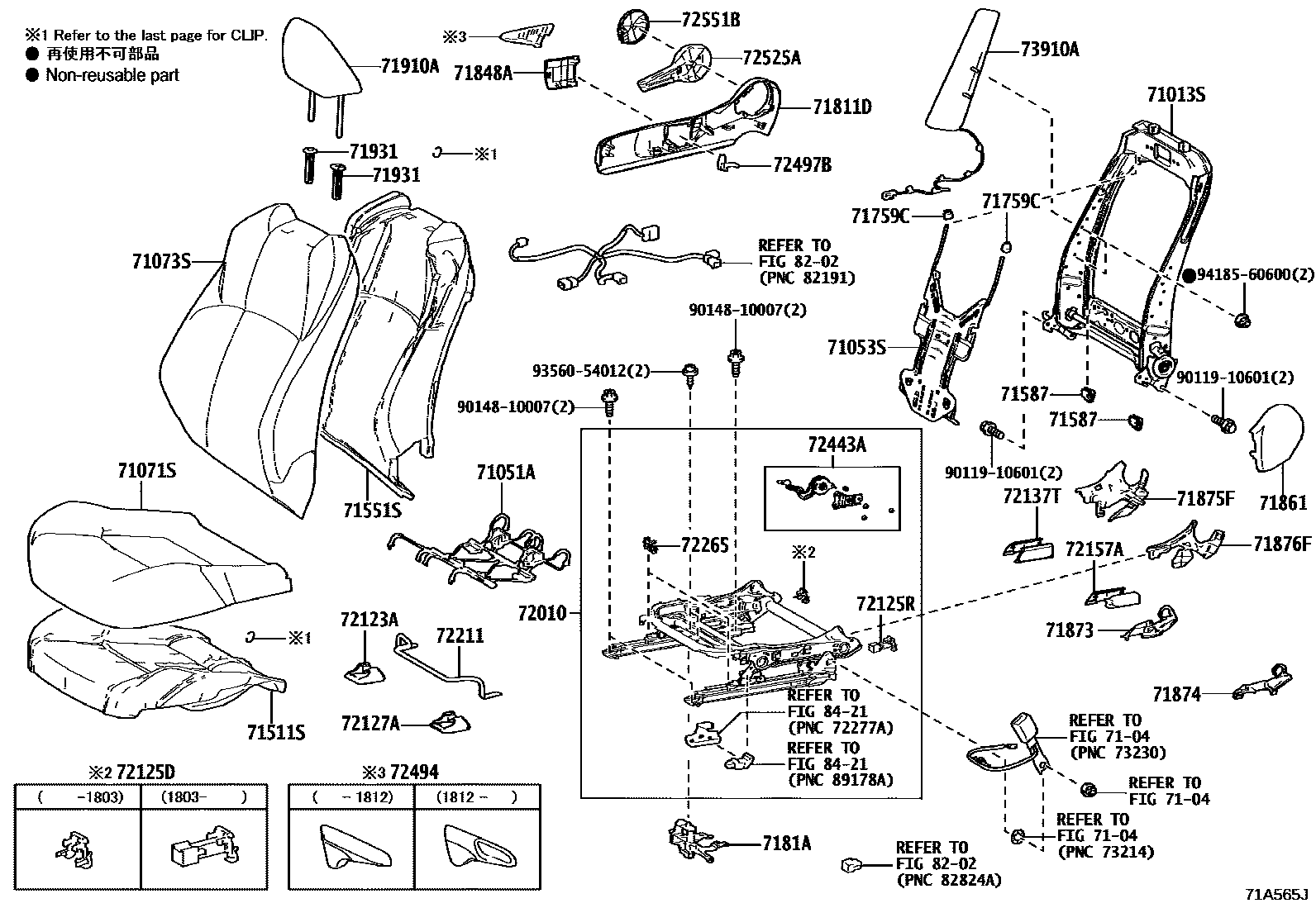

FRONT SEAT & SEAT TRACK

0001 1DRIVER SEAT:W/O(SEAT HEATER) 0002 1DRIVER SEAT:W/O(SEAT HEATER) 0003 1PASSENGER SEAT:W/O(SEAT HEATE0004 1DRIVER SEAT:W(SEAT HEATER) 0005 1PASSENGER SEAT:W(SEAT HEATER)0006 1CLIP

71013SFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-47130iNGX10,50¥17,200201612-201805

sub71013-47150¥17,100

main71013-47150iNGX10,50¥17,100201805-202307

7104

71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH

main71051-47090iNGX50..ACTV¥4,110201612-201910

71053SSPRING SUB-ASSY, FRONT SEATBACK, RH

main71053-47050iNGX10,50..ACTV¥5,200201612-202307

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-10A00-B2iNGX10,50..ACTV201612-201805

BLACK,TRIM2#

main71071-10A01-B4iNGX10,50..ACTV201805-201906

BLACK,TRIM2#

main71071-10A01-B5iNGX10,50..ACTV201906-201910

BLACK,TRIM2#

main71071-10A10-E3iNGX10,50..LUX201612-201805

LICORICE,TRIM2#

main71071-10A11-E5iNGX10,50..LUX201805-201910

LICORICE,TRIM2#

main71071-10A80-C6iNGX10,50,ZYX10..ACTV201910-202008

BLACK,TRIM2#

main71071-10A80-C9iNGX10,50,ZYX10..ACTV202008

BLACK/DK.GRAY/WATER WHITE,TRIM2#

main71071-10B20-C5iNGX10,50,ZYX10..LUX201910-202008

BLACK,TRIM2#

main71071-10B20-C6iNGX10,50,ZYX10..LUX202008

BLACK/BLACK/DK.GRAY,TRIM2#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-10A00-B2iNGX10,50..ACTV201612-201805

BLACK,TRIM2#

sub71073-10A00¥30,900

main71073-10A00-B4iNGX10,50..ACTV201805-201812

BLACK,TRIM2#

sub71073-10A00¥30,900

main71073-10A00-B5iNGX10,50..ACTV201812-201910

BLACK,TRIM2#

sub71073-10A00¥30,900

main71073-10A10-E2iNGX10,50..LUX201612-201712

LICORICE,TRIM2#

sub71073-10A10¥51,900

main71073-10A10-E3iNGX10,50..LUX201712-201805

LICORICE,TRIM2#

sub71073-10A10¥51,900

main71073-10A11-E5iNGX10,50..LUX201805-201812

LICORICE,TRIM2#

sub71073-10A11¥51,900

main71073-10A11-E6iNGX10,50..LUX201812-201910

LICORICE,TRIM2#

sub71073-10A11¥51,900

main71073-10B20-C5iNGX10,50,ZYX10..ACTV201910

BLACK,TRIM2#

main71073-10B60-C5iNGX10,50,ZYX10..LUX201910

BLACK,TRIM2#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-10310iNGX10,50¥9,100201612-201910

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-10240iNGX10,50,ZYX10¥9,100201612-201910

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-47010iNGX10;ZYX10..LUX¥200201612-202307

71759CHOOK, FRONT SEATBACK, NO.1

main71759-50040iNGX10,ZYX10..LUX¥130201910-202307

main71759-52050iNGX10,50..LUX¥130201612-202208

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-47140-C1iNGX10,50..ACTV201612-201910

BLACK,TRIM2#

sub71811-47140¥3,700

main71811-47170-C1iNGX10,50..LUX201612-201910

BLACK,TRIM2#

sub71811-47170¥2,460

main71811-47170-C1iNGX10,50,ZYX10..LUX201910

BLACK,TRIM2#,4#

sub71811-47170¥2,460

7181AHOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH

main7181A-47010iNGX10,50¥1,220201612-201910

71848ACAP, SEAT ADJUSTER COVER, RH

main71848-10020-C0iNGX10,50,ZYX10202101

BLACK,TRIM2#

main71848-47040-C1iNGX10,50,ZYX10..LUX201910-202101

BLACK,TRIM2#,4#

sub71848-47040¥600

sub71848-10020¥370

main71848-47040-C1iNGX10,50201612-202101

BLACK,TRIM2#

sub71848-47040¥600

sub71848-10020¥370

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-47070-C1iNGX10,50201612-201910

BLACK,TRIM2#

sub71861-47070¥1,090

main71861-47070-C1iNGX10,50,ZYX10..LUX201910

BLACK,TRIM2#,4#

sub71861-47070¥1,090

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-47070iNGX10,50¥740201612-201910

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71873-47080iNGX10,50¥920201612-201910

71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

main71875-47040-C1iNGX10,50201612-201910

BLACK,TRIM2#

sub71875-47040¥1,860

main71875-47040-C1iNGX10,50,ZYX10..LUX201910

BLACK,TRIM2#,4#

sub71875-47040¥1,860

71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

main71875-47070-C1iNGX10,50201612-201910

BLACK,TRIM2#

sub71875-47070¥1,760

main71875-47070-C1iNGX10,50,ZYX10..LUX201910

BLACK,TRIM2#,4#

sub71875-47070¥1,760

71910AHEADREST ASSY, FRONT SEAT

main71910-10450-C0iNGX10,50..ACTV201612-201805

BLACK,TRIM2#

sub71910-10450

main71910-10450-C3iNGX10,50..ACTV201805-201906

BLACK,TRIM2#

sub71910-10450

main71910-10450-C5iNGX10,50..ACTV201906-201910

BLACK,TRIM2#

sub71910-10450

main71910-10460-C0iNGX10,50..LUX201612-201805

BLACK,TRIM20

main71910-10460-E0iNGX10,50..LUX201612-201805

LICORICE,TRIM20

main71910-10461-E1iNGX10,50..LUX201805-201910

LICORICE,TRIM2#

main71910-10500-B4iNGX10,50,ZYX10..ACTV201910-202008

DARK GREY/BLACK,TRIM2#

main71910-10510-C3iNGX10,50,ZYX10..LUX201910-202008

BLACK,TRIM2#

main71910-10510-C4iNGX10,50,ZYX10..LUX202008

BLACK/DK.GRAY,TRIM2#

main71910-10540-B0iNGX10,50,ZYX10..ACTV202008

DARK GREY,TRIM2#

71931SUPPORT, FRONT SEAT HEADREST

main71930-47050-C5iNGX10,50,ZYX10..ACTV201910

W(LOCK),BLACK,TRIM2#,4#

main71930-47050-C5iNGX10,50201612-201910

W(LOCK),BLACK,TRIM2#

main71931-47030-C4iNGX10,50201612-201910

W/O(LOCK),BLACK,TRIM2#

main71931-47030-C4iNGX10,50,ZYX10..LUX201910

W/O(LOCK),BLACK,TRIM2#,4#

72010ADJUSTER ASSY, FRONT SEAT, RH

main72010-10320iNGX10,50201806-201905

sub72010-10321

main72010-10321iNGX10,50201906-201910

main72010-47370iNGX10,50201612-201805

sub72010-47371¥27,700

72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH

main72123-10100iNGX10,50¥340201612-201910

72125DCOVER, SEAT TRACK, UPPER REAR NO.2

main72125-47010iNGX10,50¥450201803-201910

main72125-47020iNGX10,50¥160201612-201803

sub72125-47010¥450

72125RCOVER, SEAT TRACK, UPPER REAR NO.1

main72125-47010iNGX10,50,ZYX10¥450201612-201910

72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH

main72123-10100iNGX10,50¥340201612-201910

72137TCOVER, SEAT TRACK BRACKET, OUTER REAR RH

main72137-47060iNGX10,50¥430201612-201910

72157ACOVER, SEAT TRACK BRACKET, INNER RH

main72157-10090iNGX10,50¥540201612-201910

72211HANDLE, SEAT TRACK ADJUSTING

main72211-47050iNGX50..ACTV¥990201612-201910

72265COVER, SEAT TRACK UPPER RAIL, RH

main72265-47010iNGX50..ACTV¥160201612-201910

72443AGEAR, VERTICAL ADJUSTER, RH

main72443-10010iNGX10,50¥9,700201612-201903

sub72443-10011¥8,000

main72443-10011iNGX10,50¥8,000201904-201910

72494HANDLE, VERTICAL ADJUSTING, RH

main72494-10020-C0iNGX10,50201812-202101

BLACK,TRIM2#

sub72494-10021¥590

main72494-10020-C0iNGX10,50,ZYX10..LUX201910-202101

BLACK,TRIM2#,4#

sub72494-10021¥590

main72494-10021-C0iNGX10,50,ZYX10202101

BLACK,TRIM2#

main72494-47030-C1iNGX10,50201612-201812

BLACK,TRIM2#

sub72494-47030¥1,020

72497BCOVER, VERTICAL ADJUSTER BRACKET, RH

main72498-47010iNGX10,50,ZYX10¥90201612-201910

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-10070-C0iNGX10,50,ZYX10..LUX201812-201910

BLACK,TRIM2#

main72525-10070-C0iNGX10,50,ZYX10..LUX201910

BLACK,TRIM2#,4#

main72525-47040-C1iNGX10,50201612-201812

BLACK,TRIM2#

sub72525-47040¥2,400

72551BCOVER, RECLINING HINGE, RH

main72551-47030-C1iNGX10,50,ZYX10..LUX201910

BLACK,TRIM2#,4#

sub72551-47030¥650

main72551-47030-C1iNGX10,50201612-201910

BLACK,TRIM2#

sub72551-47030¥650

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-10010iNGX10,50¥22,100201612-201910

8202

8421

9011910601

main90119-10601¥90

9014810007

main90148-10007¥60

9356054012

main93560-54012¥60

9418560600

main94185-60600¥70

41 parts on this diagram · 6 diagrams in section
