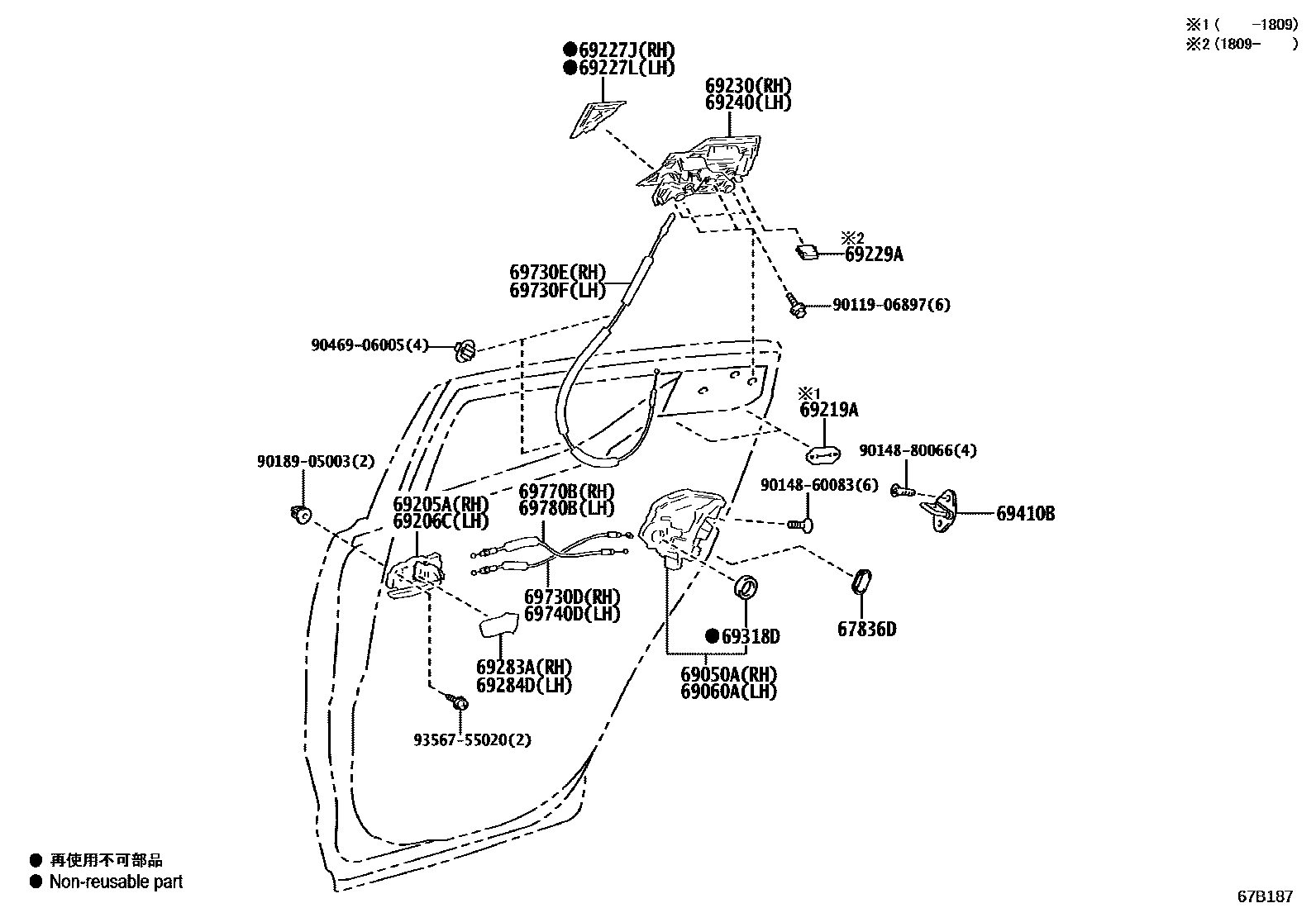

REAR DOOR LOCK & HANDLE
67836DCOVER, REAR DOOR LOCK CHILD PROTECTION
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM2#
BLACK,TRIM2#,4#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM2#,4#
BLACK,TRIM2#
69219ASEAL, REAR DOOR OUTSIDE HANDLE
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
BLACK
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
BLACK
69229ACAP, DOOR OUTSIDE HANDLE, NO.3
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
WHITE PEARL CS.,070 ,2NA
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
PLATINUM WHITE PEARL MC.,089 ,2VP
METAL STREAM ME,1K0 ,2NK
METAL STREAM ME,1K0
GRAY ME.,1G3
GRAY ME.,1G3 ,2NB
CEMENT GRAY ME.,1H5
BLACK MC.,209
BLACK MC.,209 ,2ND
BLACK MC.,209 ,2TA
SPARKLING BLACK PEARL CS.,220
RED MC.,2NE ,2NF ,3T3
RED MC.,3T3
EMOTIONAL RED 2,3U5
EMOTIONAL RED 2,2TB ,3U5
DK. BROWN M.M.,4U3
DK. BROWN M.M.,2NC ,4U3
ORANGE ME.,2TC ,4R8
ORANGE ME.,4R8
YELLOW,2JU ,2PQ ,5A3
YELLOW,5A3
YELLOW,2PQ ,5A3
RADIANT GREEN ME.,6W9
RADIANT GREEN ME.,2NJ ,6W9
OXIDE BRONZE ME.,6X1
OXIDE BRONZE ME.,2TD ,6X1
NEBULA BLUE ME.,2NG ,2NH ,8X2
NEBULA BLUE ME.,2NH ,8X2
NEBULA BLUE ME.,8X2
DK.BLUE M.M.,2VT ,8W7
DK.BLUE M.M.,8W7
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
WHITE PEARL CS.,070
WHITE PEARL CS.,070 ,2NA
PLATINUM WHITE PEARL MC.,089
PLATINUM WHITE PEARL MC.,089 ,2VP
METAL STREAM ME,1K0 ,2NK
METAL STREAM ME,1K0
GRAY ME.,1G3
GRAY ME.,1G3 ,2NB
CEMENT GRAY ME.,1H5
BLACK MC.,209 ,2ND
BLACK MC.,209
BLACK MC.,209 ,2TA
SPARKLING BLACK PEARL CS.,220
RED MC.,3T3
RED MC.,2NE ,2NF ,3T3
EMOTIONAL RED 2,3U5
EMOTIONAL RED 2,2TB ,3U5
DK. BROWN M.M.,4U3
DK. BROWN M.M.,2NC ,4U3
ORANGE ME.,4R8
ORANGE ME.,2TC ,4R8
YELLOW,2PQ ,5A3
YELLOW,5A3
YELLOW,2JU ,2PQ ,5A3
RADIANT GREEN ME.,6W9
RADIANT GREEN ME.,2NJ ,6W9
OXIDE BRONZE ME.,2TD ,6X1
OXIDE BRONZE ME.,6X1
NEBULA BLUE ME.,2NG ,2NH ,8X2
NEBULA BLUE ME.,2NH ,8X2
NEBULA BLUE ME.,8X2
DK.BLUE M.M.,2VT ,8W7
DK.BLUE M.M.,8W7
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730ECABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, NO.1
69730FCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, NO.2
9011906897
main90119-06897
9014860083
main90148-60083
9014880066
main90148-80066
9018905003
main90189-05003
9046906005
main90469-06005
9356755020
main93567-55020
27 parts on this diagram · 1 diagram in section
