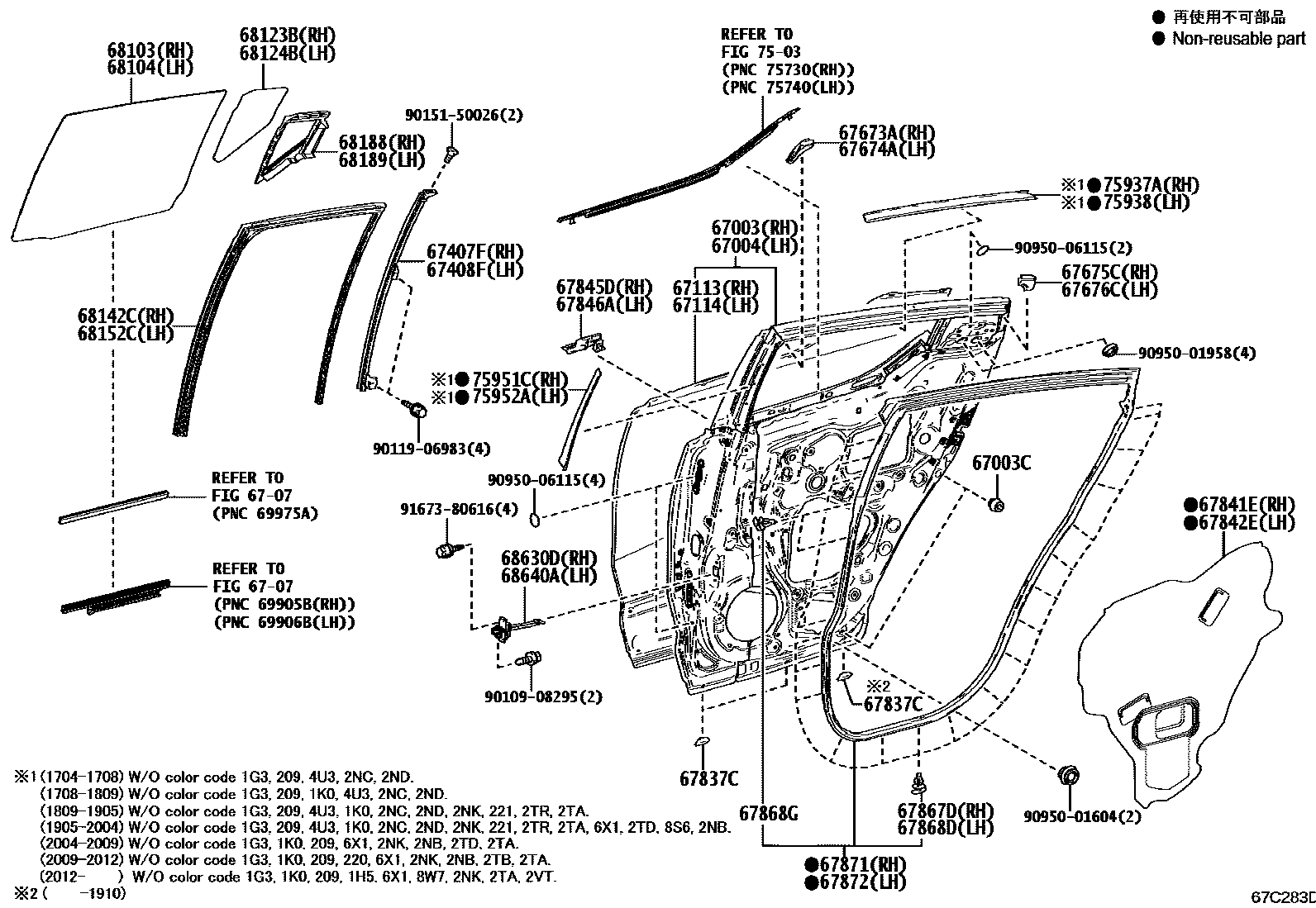

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
6707
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH
67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH
67673AGARNISH, REAR DOOR FRAME, RH
67674AGARNISH, REAR DOOR FRAME, LH
67675CGARNISH, REAR DOOR FRAME, NO.2 RH
67676CGARNISH, REAR DOOR FRAME, NO.2 LH
67837CSEAL, REAR DOOR DUST PROOF
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67845DSEAL, REAR DOOR FRONT OUTSIDE, RH
67846ASEAL, REAR DOOR FRONT OUTSIDE, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67868GRETAINER, DOOR WEATHERSTRIP
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
REAR SIDE GLASS-PRIVACY
68104GLASS SUB-ASSY, REAR DOOR, LH
REAR SIDE GLASS-PRIVACY
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
REAR SIDE GLASS-PRIVACY
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
REAR SIDE GLASS-PRIVACY
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
7503
75937ATAPE, BLACK OUT, INNER UPPER RH
0 OR 1PIECE,REF.ILL.
75938TAPE, BLACK OUT, INNER UPPER LH
0 OR 1PIECE,REF.ILL.
75951CTAPE, BLACK OUT, INNER FRONT RH
0 OR 1PIECE,REF.ILL.
75952ATAPE, BLACK OUT, INNER FRONT LH
0 OR 1PIECE,REF.ILL.
9010908295
9011906983
9015150026
9095001604
9095001958
9095006115
9167380616
44 parts on this diagram · 2 diagrams in section
