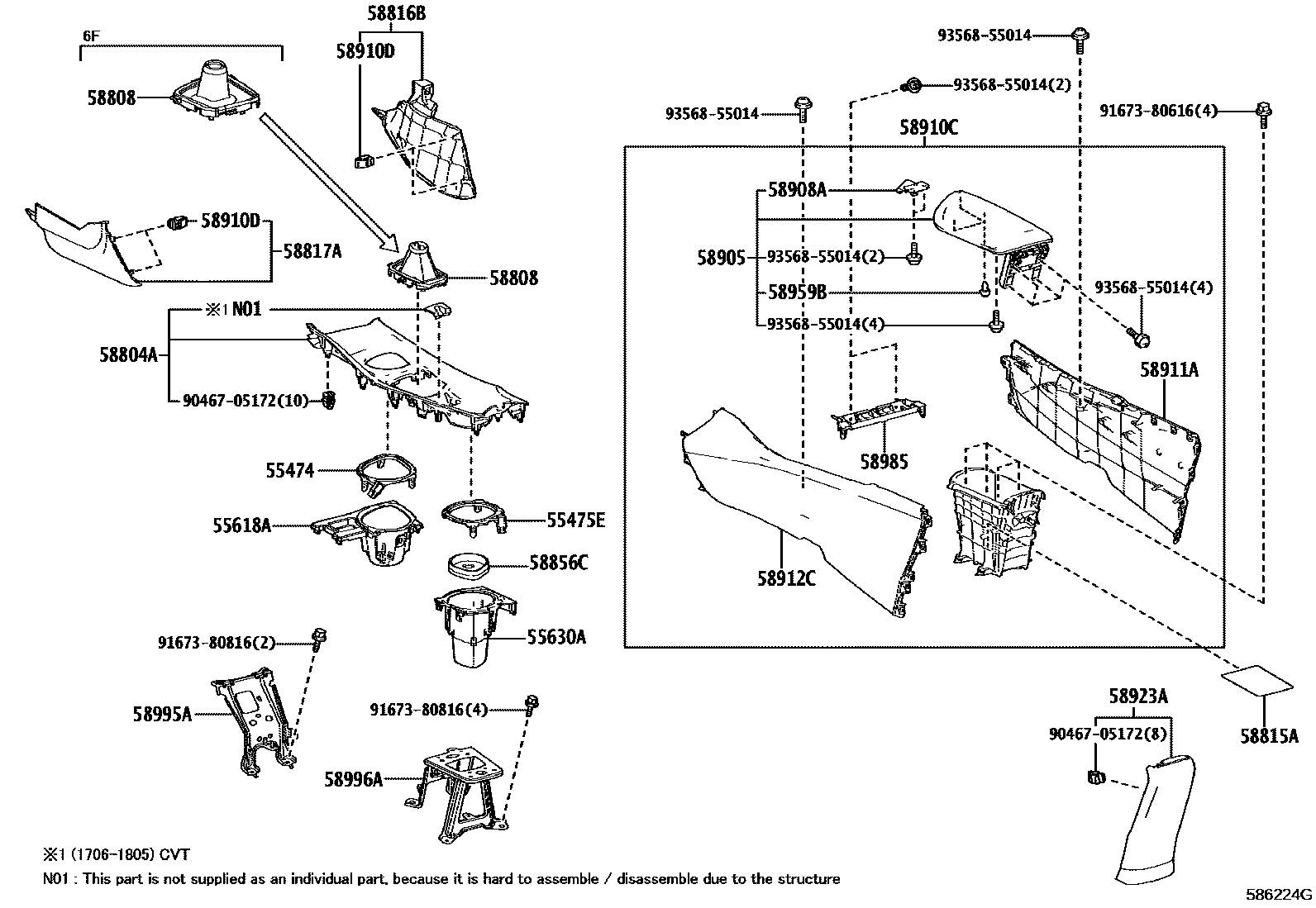

CONSOLE BOX & BRACKET

0001 1 0002 1

55474GARNISH, INSTRUMENT CLUSTER FINISH PANEL, CENTER

main55474-10110iNGX10,50..LUX201612-201910

main55474-10130iNGX10,50,ZYX10..ACTV201612-201910

55475EGARNISH, INSTRUMENT CLUSTER FINISH PANEL, CENTER

main55475-10140iNGX10,50,ZYX10..LUX201612-201910

main55475-10160iNGX10,50,ZYX10..ACTV201612-201910

55618AHOLDER, CONSOLE BOX CUP

main55618-10010iNGX10,50201612-201910

55630AHOLDER, REAR CONSOLE BOX, CUP

main55630-10010iNGX10,50201612-201910

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-10010iNGX10,50..CVT..LUX201612-201705

sub58804-10011

main58804-10011iNGX10,50..CVT..LUX201706-201804

sub58804-10070

main58804-10020iNGX10,50..CVT..ACTV201612-201705

sub58804-10021

main58804-10021iNGX10,50..CVT..ACTV201706-201804

sub58804-10060

main58804-10060iNGX10,50,ZYX10..ACTV201805-201910

main58804-10070iNGX10,50..CVT..LUX201805-201910

main58804-10080iNGX10,50,ZYX10..LUX201910

main58804-F4060iNGX10..6F..ACTV201612-201707

sub58804-F4061

main58804-F4061iNGX10..6F..ACTV201708-201910

main58804-F4080iNGX10..6F..LUX201612-201707

sub58804-F4081

main58804-F4081iNGX10..6F..LUX201708-201910

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-10110-C2iNGX10,50..CVT201612-201706

BLACK,TRIM2#

sub58808-10111

main58808-10111-C2iNGX10,50..CVT201707-201804

BLACK,TRIM2#

sub58808-10130

main58808-10130-C0iNGX10,50,ZYX10..LUX201805-201910

BLACK,TRIM2#

main58808-F4020-C1iNGX10..6F201612-201910

BLACK,TRIM2#

main58808-10160-C1iZYX10..ACTV202008

GR SPORT,BLACK,TRIM2#

58815ACARPET, CONSOLE BOX

main58815-10050iNGX10,50201612-201910

58816BINSERT, CONSOLE BOX

main58816-10010-C1iNGX10,50,ZYX10..LUX201612-201910

BLACK,TRIM2#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-10010-C1iNGX10,50,ZYX10..LUX201612-201910

BLACK,TRIM2#

58856CHOLDER, CONSOLE

main58856-10010iNGX10,50201612-201804

main58856-10020iNGX10,50201805-201910

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-10020-C1iNGX10,50..ACTV201612-201910

BLACK,TRIM2#

main58905-10020-E0iNGX10,50..LUX201612-201910

LICORICE,TRIM2#

main58905-10020-E1iNGX10,50,ZYX10..LUX201910

ORCHID BROWN,TRIM2#,4#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-10010iNGX10,50201612-201910

58910CBOX ASSY, CONSOLE, REAR

main58910-10040-C3iNGX10..LUX201612-201910

LICORICE,TRIM2#

main58910-10040-C4iNGX10..ACTV201612-201910

BLACK,TRIM2#

main58910-10040-C6iNGX10,ZYX10..LUX201910

BLACK/ORCHID BROWN,TRIM2#,4#

main58910-10050-C3iNGX50..LUX201612-201910

LICORICE,TRIM2#

main58910-10050-C4iNGX50..ACTV201612-201910

BLACK,TRIM2#

main58910-10050-C6iNGX50..LUX201910

BLACK/ORCHID BROWN,TRIM2#,4#

58910DCLIP(FOR CONSOLE BOX)

main90467-05172iNGX10,50,ZYX10201612-201910

58911APANEL, BOX SIDE, NO.1

main58911-10060-C1iNGX10,ZYX10..LUX201612-201910

BLACK,TRIM2#

main58911-10070-C1iNGX50..LUX201612-201910

BLACK,TRIM2#

58912CPANEL, BOX SIDE, NO.2

main58912-10010-C1iNGX10,ZYX10..LUX201612-201910

BLACK,TRIM2#

main58912-10020-C1iNGX50..LUX201612-201910

BLACK,TRIM2#

58923APANEL, CONSOLE REAR END

main58923-10030-C1iNGX10,ZYX10..LUX201612-201910

BLACK,TRIM2#

main58923-10040-C1iNGX50..LUX201612-201910

BLACK,TRIM2#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-35010iNGX10,50201612-201910

58985RETAINER, CONSOLE BOX

main58985-10020iNGX10,50201612-201910

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-10070iNGX10,50201612-201910

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-10070iNGX10201612-201910

main58996-10080iNGX50201612-201910

main58996-10090iNGX10,ZYX10201910

main58996-10100iNGX50201910

9046705172

main90467-05172

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

25 parts on this diagram · 2 diagrams in section
