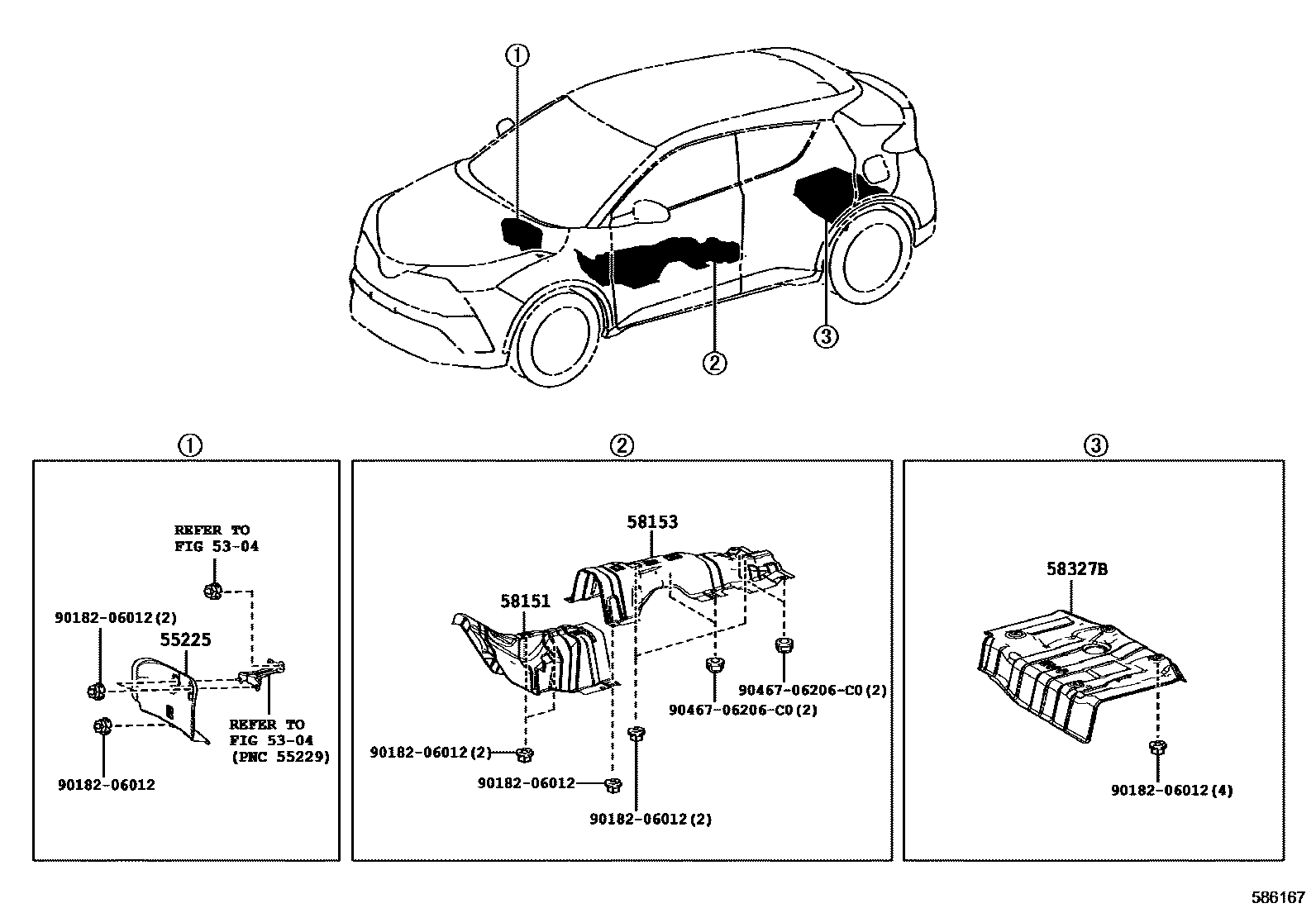

FLOOR INSULATOR

0001 1 0002 1 0003 1

5304

55225INSULATOR, DASH PANEL HEAT

main55225-10010iNGX10,50201612-201910

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-10040iZYX10201910

main58151-10050iNGX10201612-201802

sub58151-10051

main58151-10051iNGX10201803-201910

main58151-10060iNGX50201612-201910

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-10030iNGX10201612-201910

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-10060iNGX10,50201612-201905

sub58327-10061

main58327-10061iNGX10,50201906-201910

9018206012

main90182-06012

9046706206C0

main90467-06206C0

7 parts on this diagram · 3 diagrams in section
