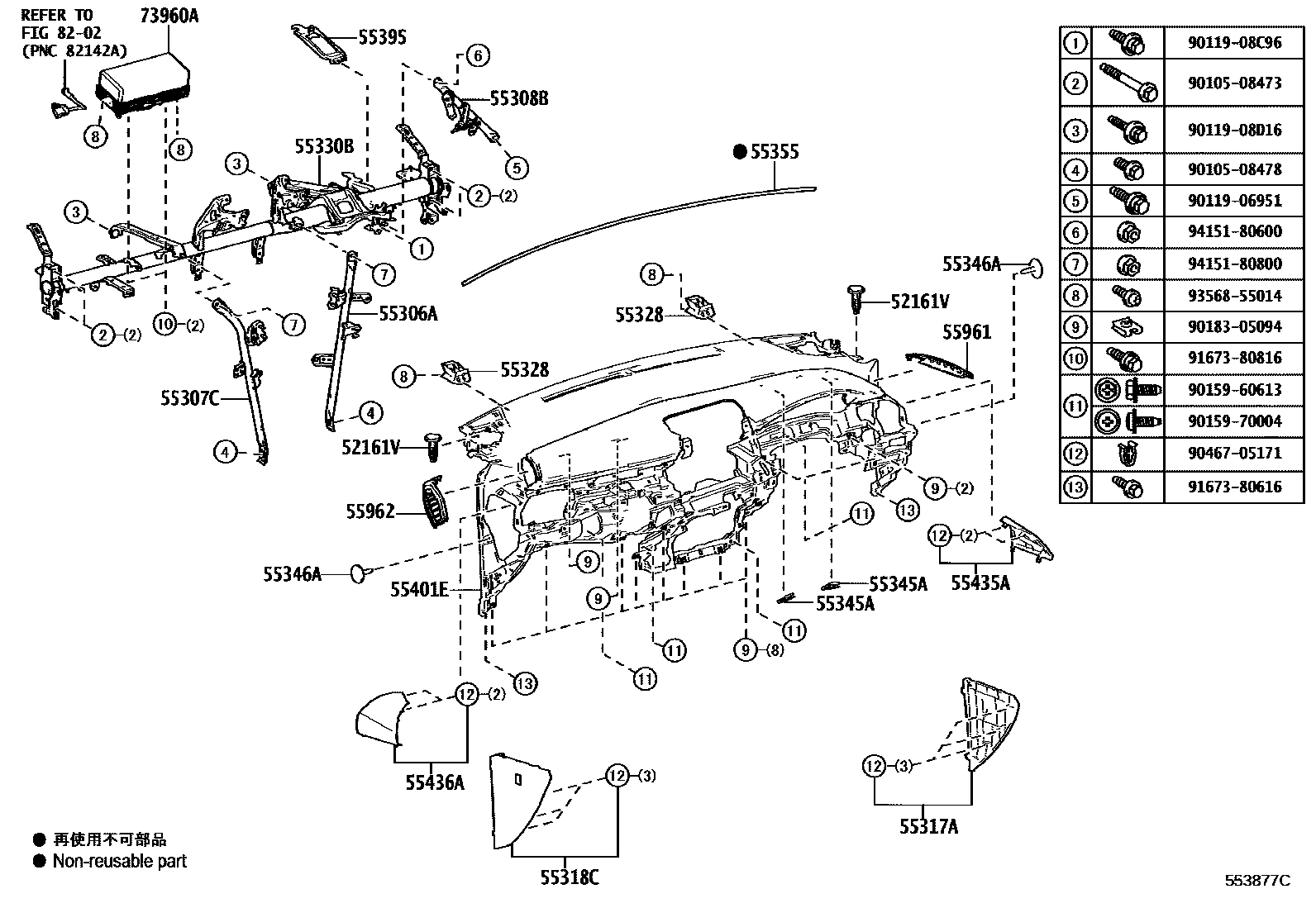

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1DRIVER SIDE 0004 1DRIVER SIDE 0005 1CENTER 0006 1CENTER 0007 1PASSENGER SIDE 0008 1PASSENGER SIDE

52161VPIECE, INSTRUMENT PANEL

main52161-16010iNGX10,50,ZYX10201612-201910

sub52161-0K040

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-10050iNGX10,50201612-201910

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-10060iNGX10,50201612-201910

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-10130iNGX10,50201612-201910

55317APANEL, INSTRUMENT SIDE, RH

main55317-10010-C1iNGX10,50201612-201910

BLACK,TRIM2#

main55317-10010-C1iNGX10,50,ZYX10..LUX201910

BLACK,TRIM2#,4#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-10070-C1iNGX10,50201612-201910

BLACK,TRIM2#

main55318-10070-C1iNGX10,50,ZYX10..LUX201910

BLACK,TRIM2#,4#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-10040iNGX10,50201612-201910

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-10200iNGX10,50201612-201910

main55330-10230iNGX10,50,ZYX10201910

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-12060iNGX10,50201612-201910

55346ACLIP, INSTRUMENT PANEL, NO.2

main90467-05161-C9iNGX10,50201612-201910

BLACK

sub90467-05161

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-10020iNGX10,50,ZYX10201612-201910

55395BRACKET, INSTRUMENT PANEL TO PEDAL

main55395-10010iNGX10,50,ZYX10201612-201910

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-10270-C3iNGX10,50..LUX201612-201910

BLACK/LICORICE,TRIM2#

main55401-10270-C4iNGX10,50..ACTV201612-201910

BLACK,TRIM2#

main55401-10300-C0iNGX10,50,ZYX10..ACTV201910

BLACK/SOFT BLACK,TRIM2#

main55401-10300-C1iNGX10,50,ZYX10..LUX201910

BLACK/ORCHID BROWN,TRIM2#,4#

55435APANEL, INSTRUMENT PANEL FINISH, END RH

main55435-10150-C1iNGX10,50,ZYX10..LUX201910

BLACK,TRIM2#,4#

main55435-10150-C1iNGX10,50,ZYX10..LUX201612-201910

BLACK,TRIM2#

55436APANEL, INSTRUMENT PANEL FINISH, END LH

main55436-10010-C1iNGX10,50201612-201910

BLACK,TRIM2#

main55436-10010-C1iNGX10,50,ZYX10..LUX201910

BLACK,TRIM2#,4#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-10030-C1iNGX10,50,ZYX10..ACTV201612-201910

BLACK,TRIM2#

main55961-10030-C1iNGX10,50,ZYX10..LUX201910

BLACK,TRIM2#,4#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-10030-C1iNGX10,50201612-201910

BLACK,TRIM2#

main55962-10030-C1iNGX10,50,ZYX10..LUX201910

BLACK,TRIM2#,4#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-10020iNGX10,50201612-201910

8202

9010508473

main90105-08473

9010508478

main90105-08478

9011906951

main90119-06951

9011908C96

main90119-08C96

9011908D16

main90119-08D16

9015960613

main90159-60613

9015970004

main90159-70004

9018305094

main90183-05094

9046705171

main90467-05171

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180600

main94151-80600

9415180800

main94151-80800

33 parts on this diagram · 8 diagrams in section
