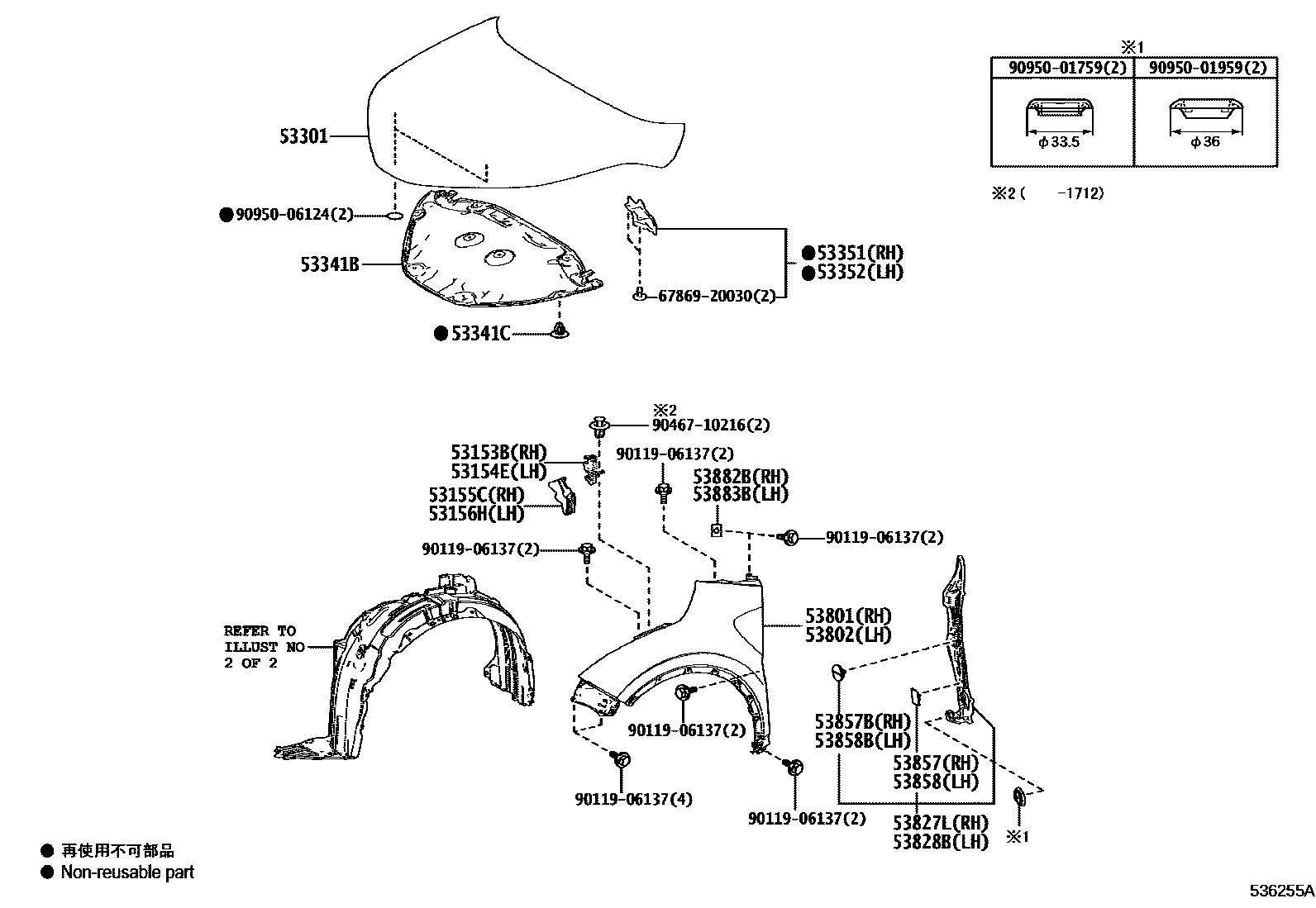

HOOD & FRONT FENDER

0001 1 0002 1RH 0003 1LH

53153BGUIDE, FRONT SIDE AIR

main53153-10020iNGX10,50201612-201910

53154EGUIDE, FRONT SIDE AIR, NO.2

main53154-10010iNGX10,50201612-201910

53155CSEAL, RADIATOR GRILLE, NO.1

main53155-10100iNGX10,50201612-201910

53156HSEAL, RADIATOR GRILLE, NO.2

main53156-10020iNGX10,50201612-201910

53301HOOD SUB-ASSY

main53301-10380iNGX10,50201612-201910

53341BINSULATOR, HOOD

main53341-10060iNGX10,50201612-201910

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iNGX10,50201612-201910

53351PANEL, HOOD SIDE, RH

main53351-10010iNGX10,50201612-201910

53352PANEL, HOOD SIDE, LH

main53352-10010iNGX10,50201612-201910

53801FENDER SUB-ASSY, FRONT RH

main53801-10600iNGX10,50201612-201910

53802FENDER SUB-ASSY, FRONT LH

main53802-10700iNGX10,50201612-201910

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-10040iNGX10,50201612-201712

main53827-10050iNGX10,50201801-201910

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-10040iNGX10,50201612-201712

main53828-10050iNGX10,50201801-201910

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010iNGX10,50201612-201910

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iNGX10,50201612-201910

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010iNGX10,50201612-201910

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iNGX10,50201612-201910

53882BSEAL, FRONT FENDER, RH

main53882-16030iNGX10,50201612-201910

53883BSEAL, FRONT FENDER, LH

main53882-16030iNGX10,50201612-201910

6786920030PLATE, WEATHERSTRIP, CENTER DOOR, UPPER

main67869-20030

9011906137

main90119-06137

9046710216

main90467-10216

9095001759

main90950-01759

9095001959

main90950-01959

9095006124

main90950-06124

25 parts on this diagram · 3 diagrams in section
