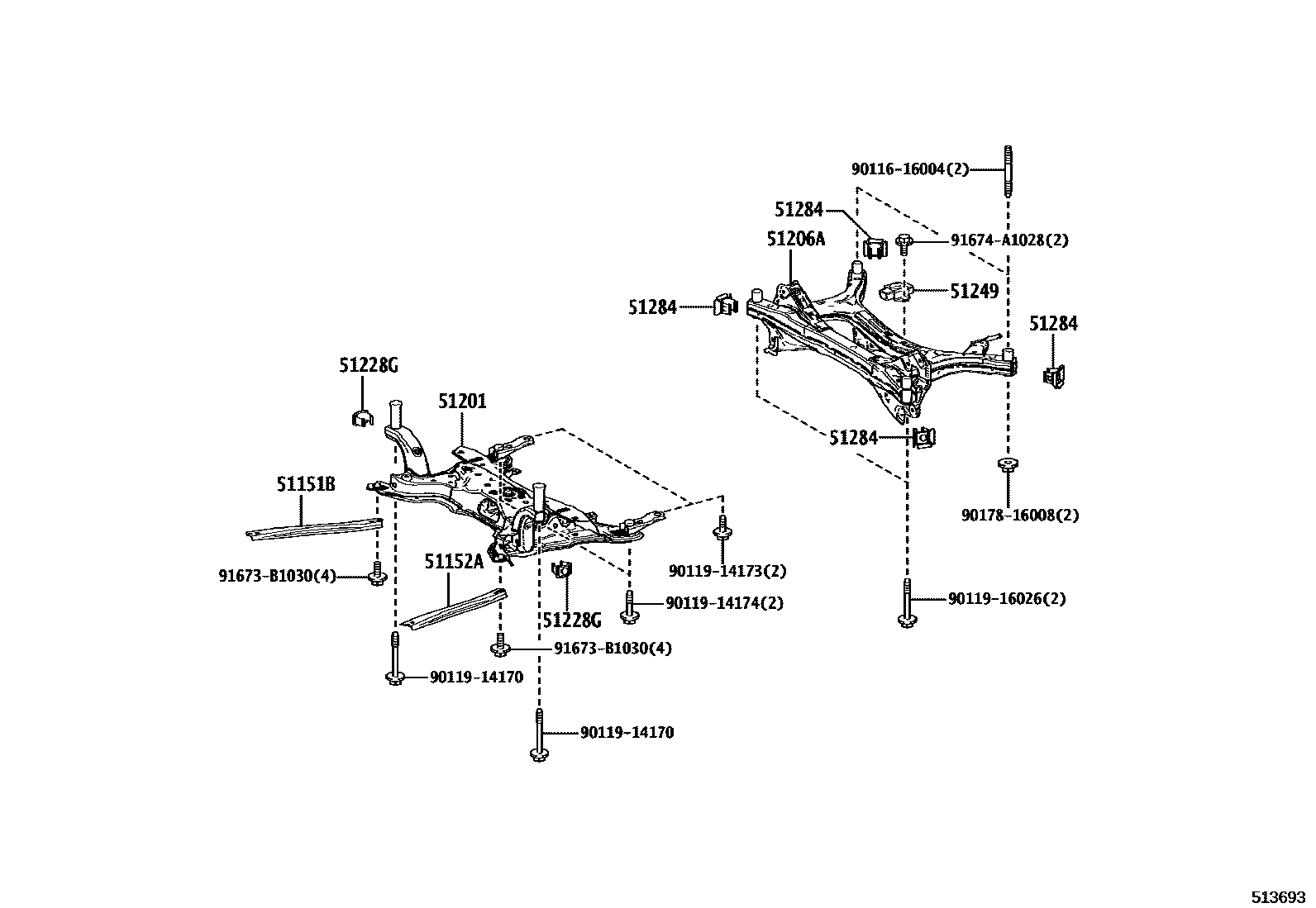

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

51151BREINFORCEMENT, SIDE RAIL, NO.1 RH

main51151-10010iNGX10,50,ZYX10¥2,650201612-201910

51152AREINFORCEMENT, SIDE RAIL, NO.1 LH

main51151-10010iNGX10,50¥2,650201612-201910

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-10120iNGX10,50¥73,700201612-201712

sub51201-10121¥73,700

main51201-10121iNGX10,50¥73,700201801-201907

sub51201-10122¥61,400

main51201-10122iNGX10,50¥61,400201908-201910

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-10010iNGX10¥63,400201612-201702

sub51206-10011¥52,800

main51206-10011iNGX10,ZYX10¥52,800201703-201910

main51206-10020iNGX50¥72,400201612-201702

sub51206-10021¥60,400

main51206-10021iNGX50¥60,400201703-201910

51228GPLATE, FRONT SUSPENSION MEMBER

main51228-47010iNGX10,50¥220201612-201910

51249DAMPER, REAR SUSPENSION MEMBER

main51249-10010iNGX10,ZYX10¥4,390201612-201910

51284COVER, REAR SUSPENSION MEMBER HOLE

main51284-47010iNGX10,50,ZYX10¥340201612-201910

9011616004

main90116-16004¥610

9011914170

main90119-14170¥490

9011914173

main90119-14173¥310

9011914174

main90119-14174¥360

9011916026

main90119-16026¥610

9017816008

main90178-16008¥190

91673B1030

main91673-B1030¥120

91674A1028

main91674-A1028¥120

15 parts on this diagram · 6 diagrams in section
