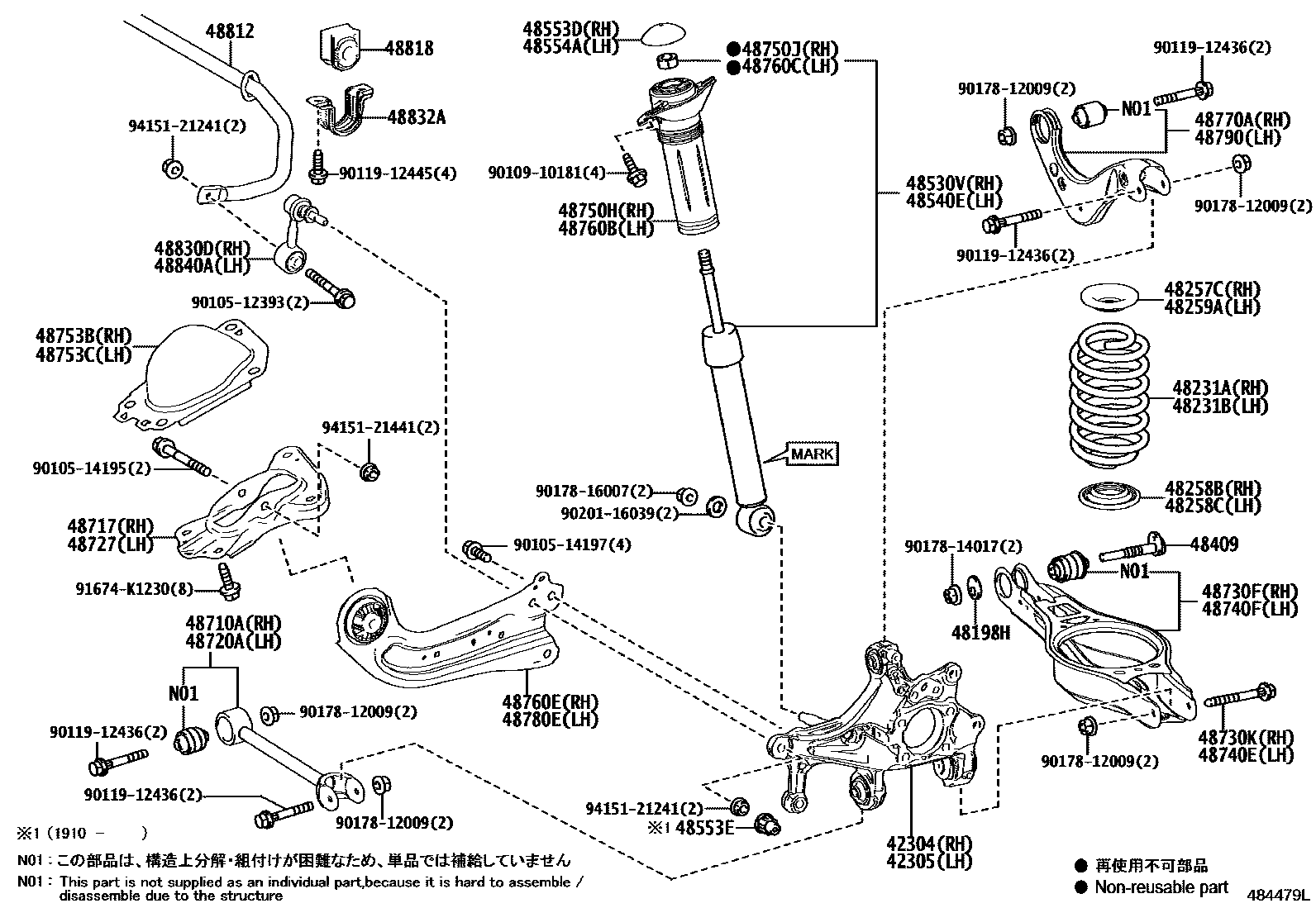

REAR SPRING & SHOCK ABSORBER
48198HCAM, CAMBER ADJUST, NO.2
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48530VABSORBER SET, SHOCK, REAR RH
MARK 48530-10420
MARK 48530-10430
MARK 48530-10440
MARK 48530-F4010
MARK 48530-F4030
48540EABSORBER SET, SHOCK, REAR LH
MARK 48530-10420
MARK 48530-10430
MARK 48530-10440
MARK 48530-F4010
MARK 48530-F4030
48553DCAP, REAR SHOCK ABSORBER, RH
48553ECAP
48554ACAP, REAR SHOCK ABSORBER, LH
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48717BRACKET, REAR SUSPENSION ARM, RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48727BRACKET, REAR SUSPENSION ARM, LH
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
48730KBOLT(FOR REAR SUSPENSION ARM NO.2 RH)
48740EBOLT(FOR REAR SUSPENSION ARM NO.2 LH)
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH
48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH
48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
48760EARM ASSY, TRAILING, REAR RH
48770AARM ASSY, UPPER CONTROL, REAR RH
48780EARM ASSY, TRAILING, REAR LH
48790ARM ASSY, UPPER CONTROL, REAR LH
48830DLINK ASSY, REAR STABILIZER, RH
48832ABRACKET, REAR STABILIZER BAR, NO.1
48840ALINK ASSY, REAR STABILIZER, LH
9010512393
main90105-12393
9010514195
main90105-14195
9010514197
main90105-14197
9010910181
main90109-10181
9011912436
main90119-12436
9011912445
main90119-12445
9017812009
main90178-12009
9017814017
main90178-14017
9017816007
main90178-16007
9020116039
main90201-16039
91674K1230
main91674-K1230
9415121241
main94151-21241
9415121441
main94151-21441
51 parts on this diagram · 2 diagrams in section
