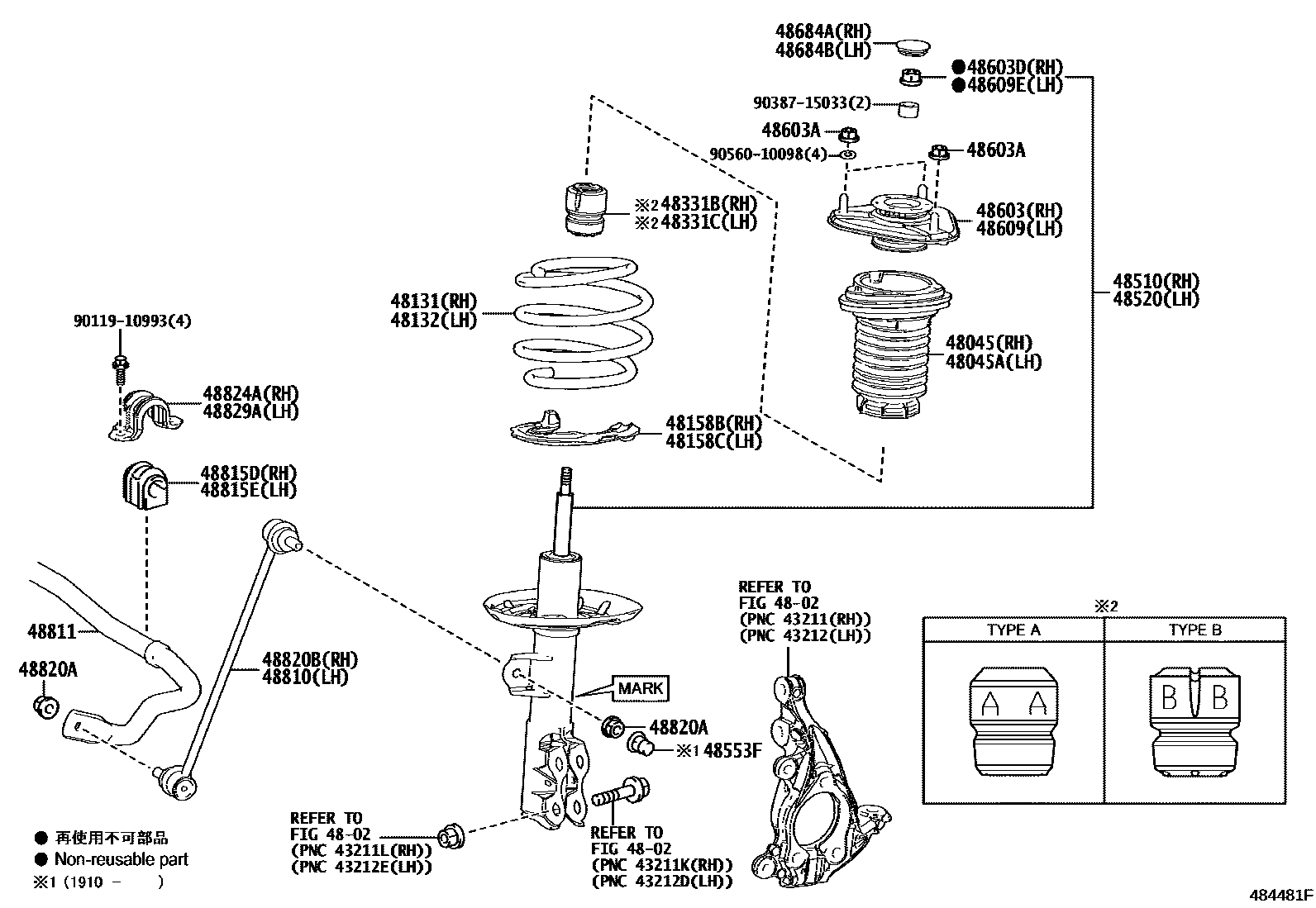

FRONT SPRING & SHOCK ABSORBER
4802
48045SEAT SUB-ASSY, FRONT SPRING RH, W/INSULATOR
48045ASEAT SUB-ASSY, FRONT SPRING LH, W/INSULATOR
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
48331CBUMPER, FRONT SPRING, LH
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-10440
MARK 48510-10450
MARK 48510-10460
MARK 48510-F4010
MARK 48510-F4011
MARK 48510-F4021
MARK 48510-F4030
MARK 48510-F4031
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-10440
MARK 48520-10450
MARK 48520-10460
MARK 48520-F4010
MARK 48520-F4011
MARK 48520-F4021
MARK 48520-F4030
MARK 48520-F4031
48553FCAP
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48815DBUSH, FRONT STABILIZER BAR, RH
48815EBUSH, FRONT STABILIZER BAR, LH
48820ANUT(FOR FRONT STABILIZER LINK)
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
9011910993
9038715033
9056010098
30 parts on this diagram · 1 diagram in section
