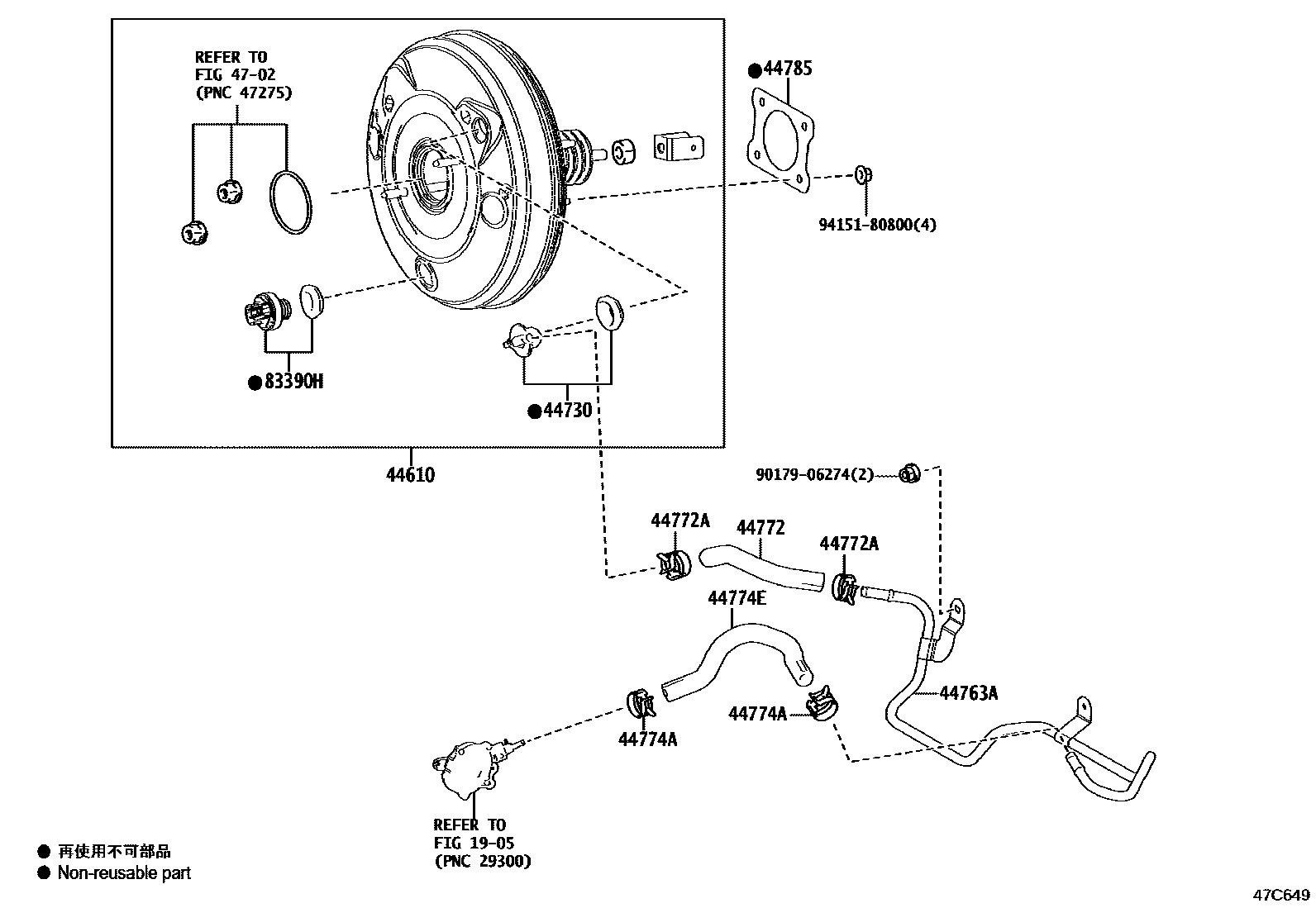

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

1905

44610BOOSTER ASSY, BRAKE

main44610-10470iNGX10,50201910

main44610-F9030iNGX10,50201612-201910

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-28010iNGX10,50201910

main44730-F9010iNGX10,50201612-201910

44763ATUBE, HOSE TO HOSE, NO.1

main44763-10040iNGX10,50201612-201803

main44763-12570iNGX10,50201803-201910

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-10220iNGX10,50201612-201910

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014iNGX10,50201612-201910

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014iNGX10,50201612-201910

44774EHOSE, UNION TO CONNECTOR TUBE

main44774-10021iNGX10,50201612-201803

main44774-12800iNGX10,50201803-201910

44785GASKET, BRAKE BOOSTER

main44785-12040iNGX10,50201612-201910

4702

83390HSWITCH ASSY, VACUUM WARNING

main83390-09020iNGX10,50201612-201910

main83390-28120iNGX10,50201910

9017906274

main90179-06274

9415180800

main94151-80800

13 parts on this diagram · 3 diagrams in section
