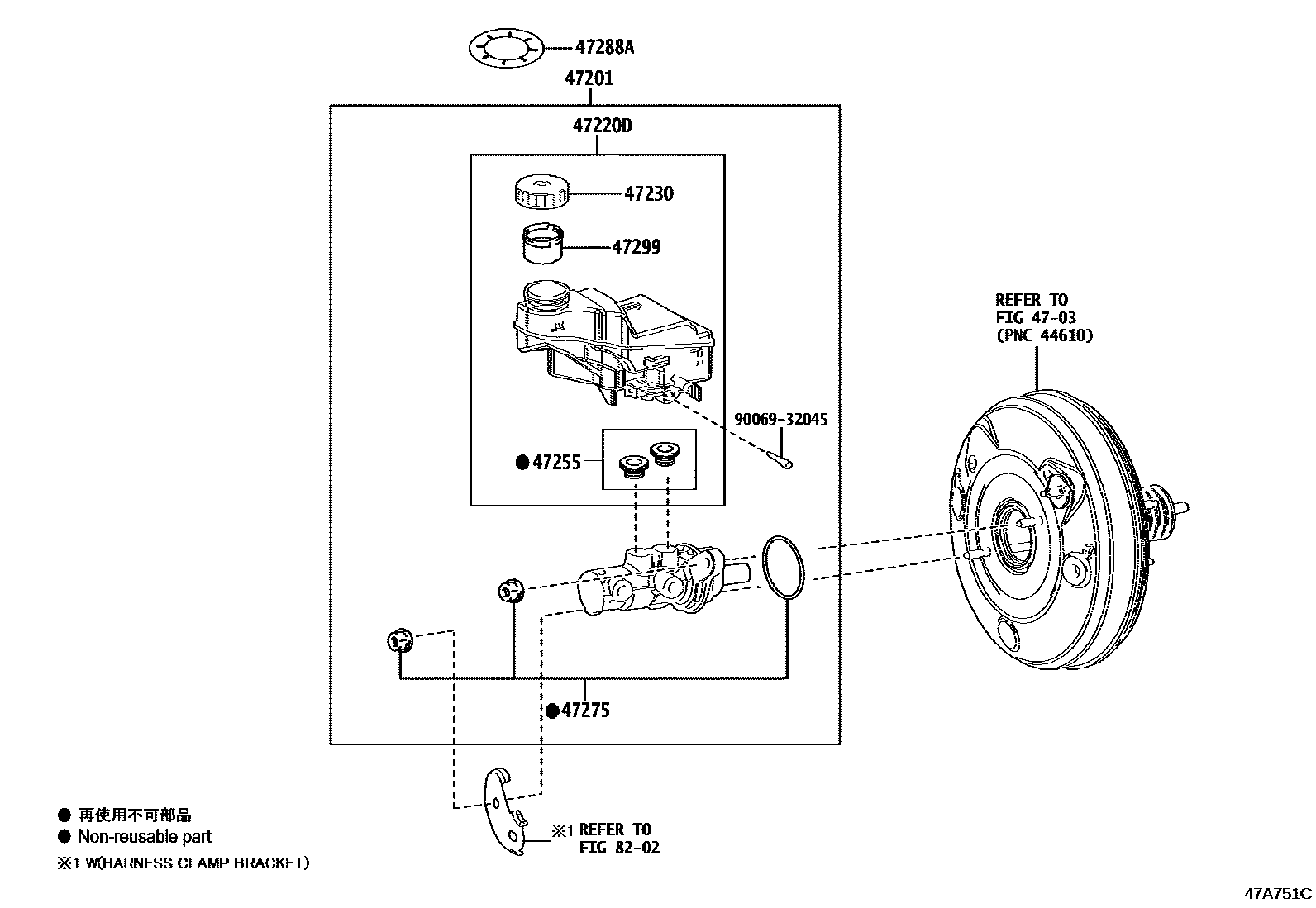

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-09860iNGX10,50201612-201910

main47201-10330iNGX10,50201910

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-09240iNGX10,50201612-201910

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0W060iNGX10,50201612-201910

main47230-33330iZYX10202002-202006

sub47230-47090

main47230-47090iZYX10201910-202002

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-09040iNGX10,50201612-201910

main90015-AT001iNGX10,50201910

47275GASKET, BRAKE MASTER CYLINDER

main47275-09010iNGX10,50201612-201910

47288ALABEL, BRAKE FLUID NOTICE

main47288-12010iNGX10,50201612-201910

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-02160iNGX10,50201612-201910

8202

9006932045

main90069-32045

10 parts on this diagram · 3 diagrams in section
