PARKING BRAKE & CABLE

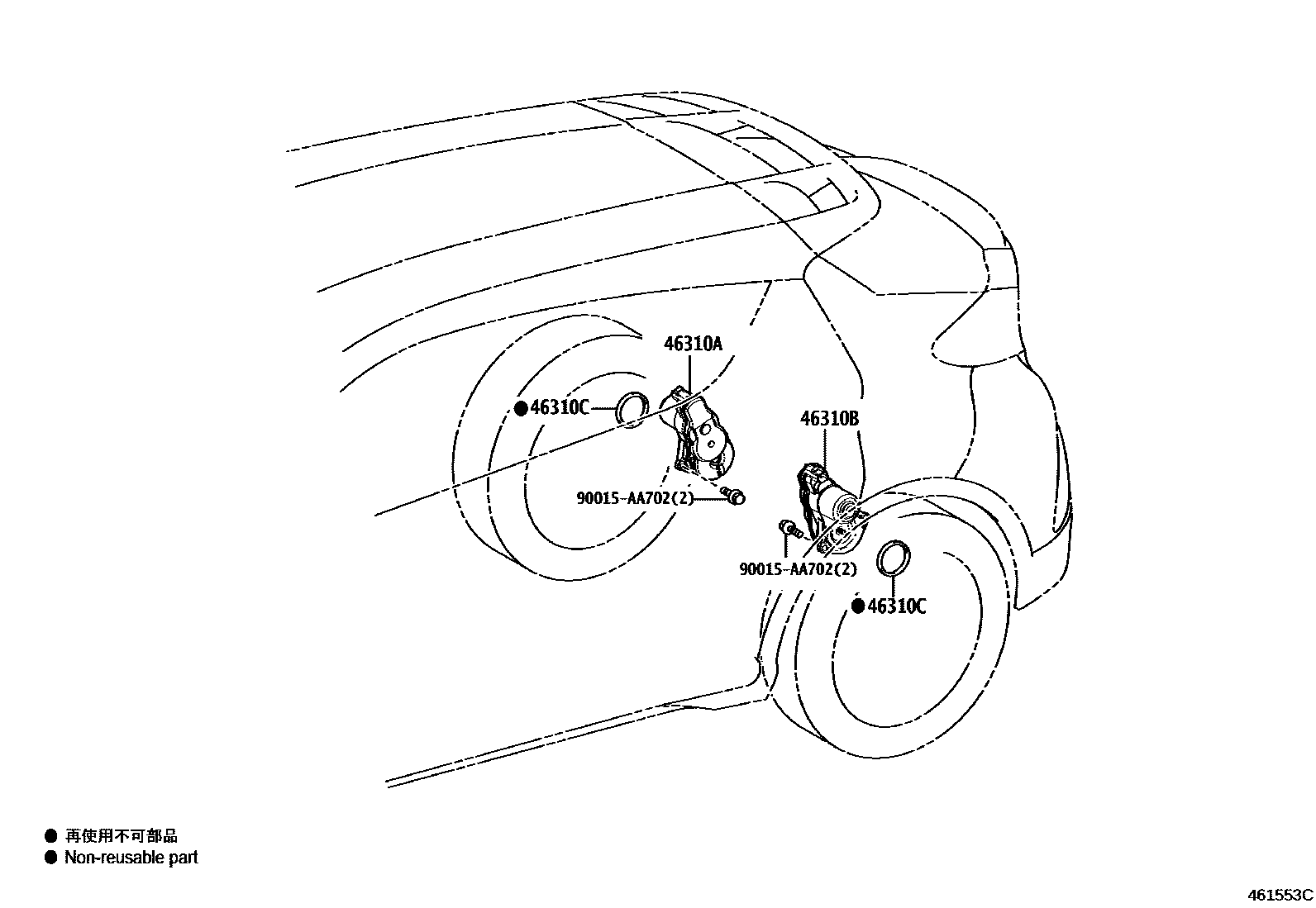

Parts diagram

46310AACTUATOR ASSY, PARKING BRAKE, RH

main46310-33010i¥14,400201910

main46310-78010i¥15,900201612-201910

46310BACTUATOR ASSY, PARKING BRAKE, LH

main46310-33010i¥14,400201910

main46310-78010i¥15,900201612-201910

46310CSEAL(FOR PARKING BRAKE ACTUATOR)

main90015-AH005i¥130201612-201910

90015AA702

main90015-AA702¥270

4 parts on this diagram · 1 diagram in section
