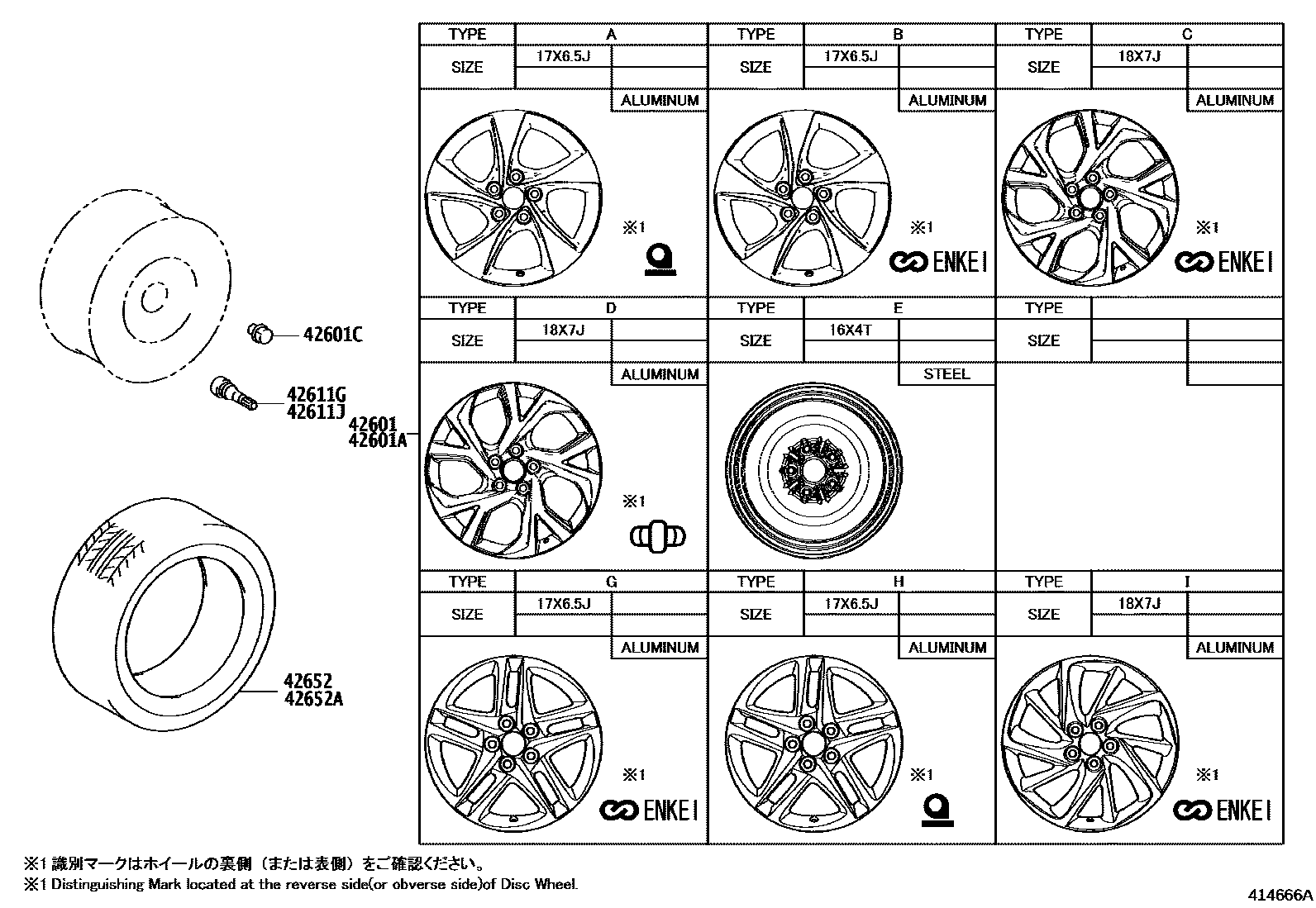

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
17X6.5J,#,TYPE A:REFER ILLUST.
17X6.5J,#,TYPE B:REFER ILLUST.
18X7J,#,TYPE C:REFER ILLUST.
18X7J,#,TIRE & DISC WHEEL-225/50R18 ALUMINUM,TYPE C:REFER ILLUST.
18X7J,#,TIRE & DISC WHEEL-225/50R18 ALUMINUM,TYPE D:REFER ILLUST.
sub42611-10371
18X7J,#,TYPE D:REFER ILLUST.
18X7J,#,TIRE & DISC WHEEL-225/50R18 ALUMINUM,TYPE D:REFER ILLUST.
17X6.5J,#,TYPE G:REFER ILLUST.
17X6.5J,#,TYPE H:REFER ILLUST.
18X7J,#,TYPE I:REFER ILLUST.
18X7J,#,TYPE J:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
16X4T,TYPE E:REFER ILLUST.
16X4T,TIRE & DISC WHEEL-215/60R/17 ALUMINUM GENERAL COUNTRIES,TYPE E:REFER ILLUST.
16X4T,TIRE & DISC WHEEL-215/60R/17 ALUMINUM GENERAL COUNTRIES,TYPE E:REFER ILLUST.
sub42611-28691
42601CNUT, HUB (FOR AXLE)
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
TIRE & DISC WHEEL-215/60R/17 ALUMINUM GENERAL COUNTRIES
42652TIRE
215/60R17,MICHELIN
215/60R17,*B/S
215/60R17,*D/L
225/50R18,MICHELIN
225/50R18,MICHELIN,TIRE & DISC WHEEL-225/50R18 ALUMINUM
225/50R18,*B/S
225/50R18,*B/S,TIRE & DISC WHEEL-225/50R18 ALUMINUM
42652ATIRE (FOR SPARE)
T145/90D16,*Y/H
T145/90D16,*Y/H,TIRE & DISC WHEEL-215/60R/17 ALUMINUM GENERAL COUNTRIES
7 parts on this diagram · 3 diagrams in section
