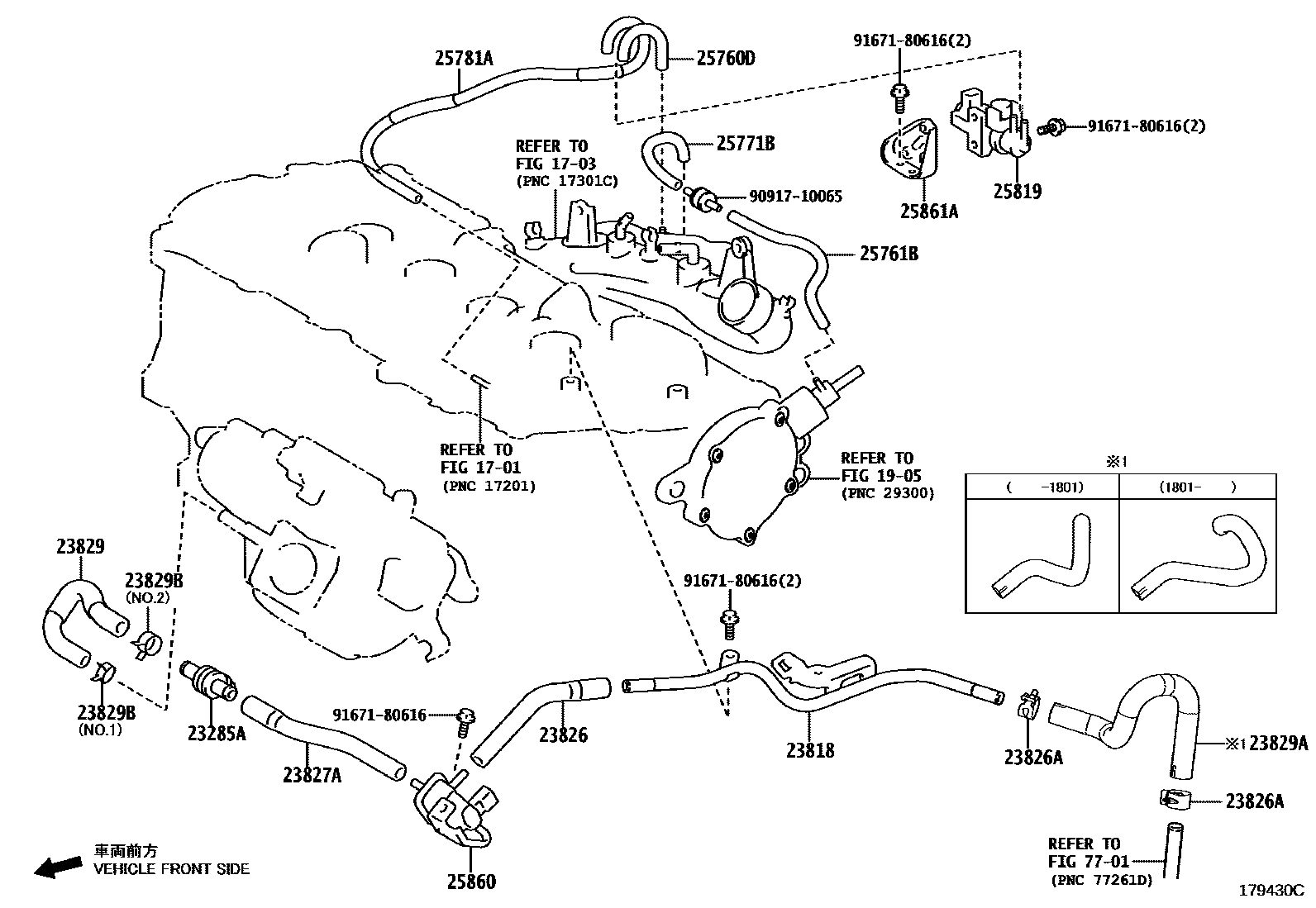

VACUUM PIPING
1701
1703
1905
23818PIPE, FUEL VAPOR FEED
23826HOSE, FUEL VAPOR FEED, NO.1
23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
23827AHOSE, FUEL VAPOR FEED, NO.2
23829HOSE, FUEL VAPOR FEED, NO.3
23829AHOSE, FUEL VAPOR FEED
23829BCLIP(FOR FUEL VAPOR FEED HOSE)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
25760DHOSE ASSY, VACUUM TRANSMITTING, NO.4
L=120
L=155
25761BHOSE, VACCUM TRANSMITTING, NO.1
25771BHOSE, VACCUM TRANSMITTING, NO.2
25781AHOSE, VACUUM TRANSMITTING, NO.3
L=550
L=520
25819VALVE ASSY, VACUUM REGULATING
25860VALVE ASSY, VACUUM SWITCHING, NO.1
25861ABRACKET, VACUUM SWITCHING VALVE, NO.2
7701
9091710065
main90917-10065
9167180616
main91671-80616
21 parts on this diagram · 2 diagrams in section
