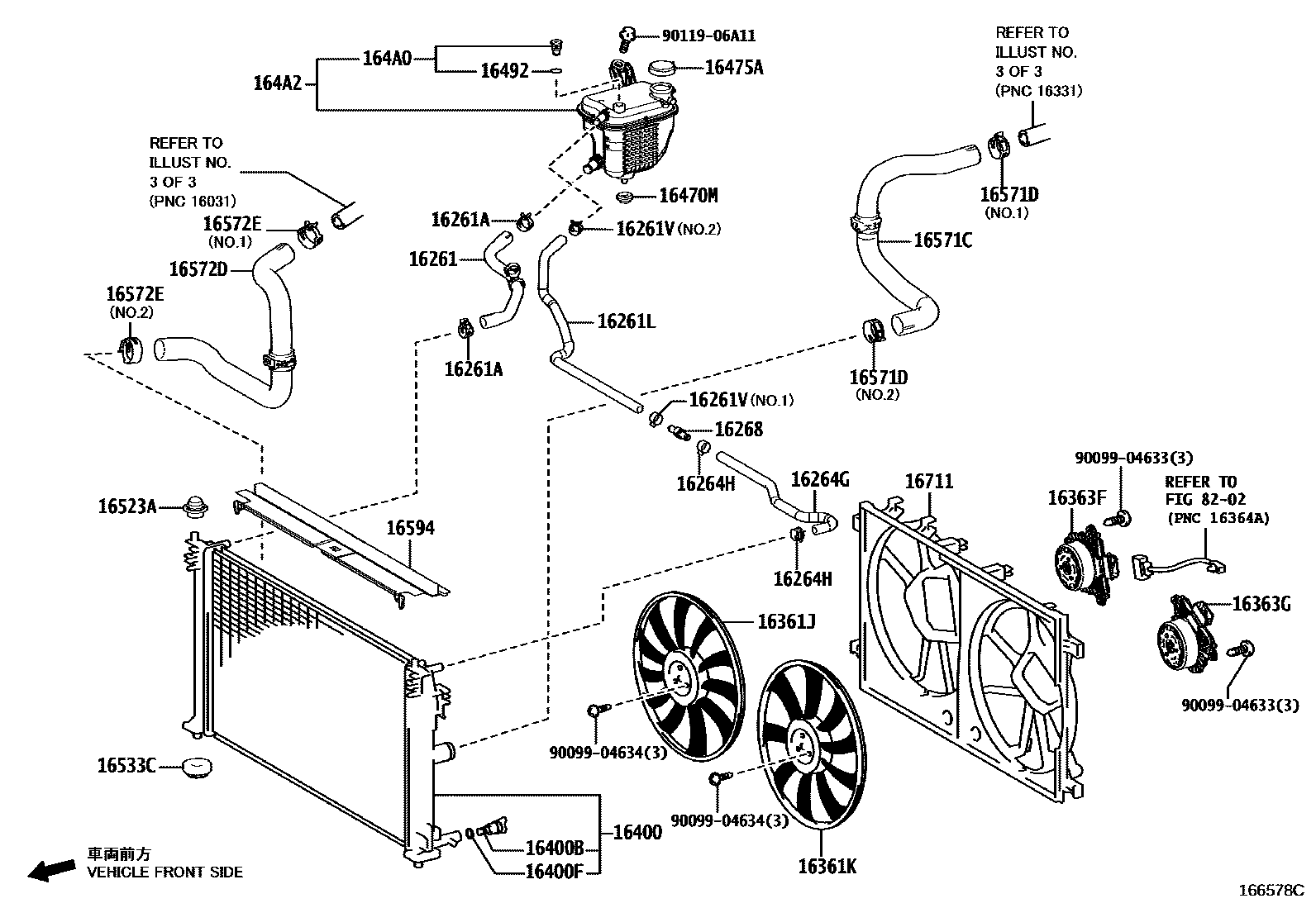

RADIATOR & WATER OUTLET
16261HOSE, WATER BY-PASS
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16261LHOSE, WATER BY-PASS
16261VCLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
16264HOSE, WATER BY-PASS, NO.2
16264GHOSE, WATER BY-PASS, NO.3
16264HCLIP(FOR WATER BY-PASS HOSE NO.3)
16268PIPE, WATER BY-PASS, NO.1
16361JFAN, RH
16361KFAN, LH
16363FMOTOR, COOLING FAN, RH
16363GMOTOR, COOLING FAN, LH
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470MGROMMET
16475ACAP, RESERVE TANK
16492RING, O(FOR RADIATOR RESERVE TANK COCK)
164A0COCK ASSY, RESERVE TANK
164A2TANK, RESERVE SEALED W/O CAP
16523ACUSHION, RADIATOR SUPPORT
16533CGROMMET(FOR RADIATOR SUPPORT)
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
NO.1:REFER ILLUST.
NO.2
NO.2:REFER ILLUST.
NO.1
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
16594GUIDE, RADIATOR AIR, NO.2
16711SHROUD, FAN
8202
9009904633
9009904634
9011906A11
32 parts on this diagram · 6 diagrams in section
