HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL PANEL 0002 1AIR DUCT 0003 1AIR DUCT 0004 1SENSOR 0005 1SENSOR

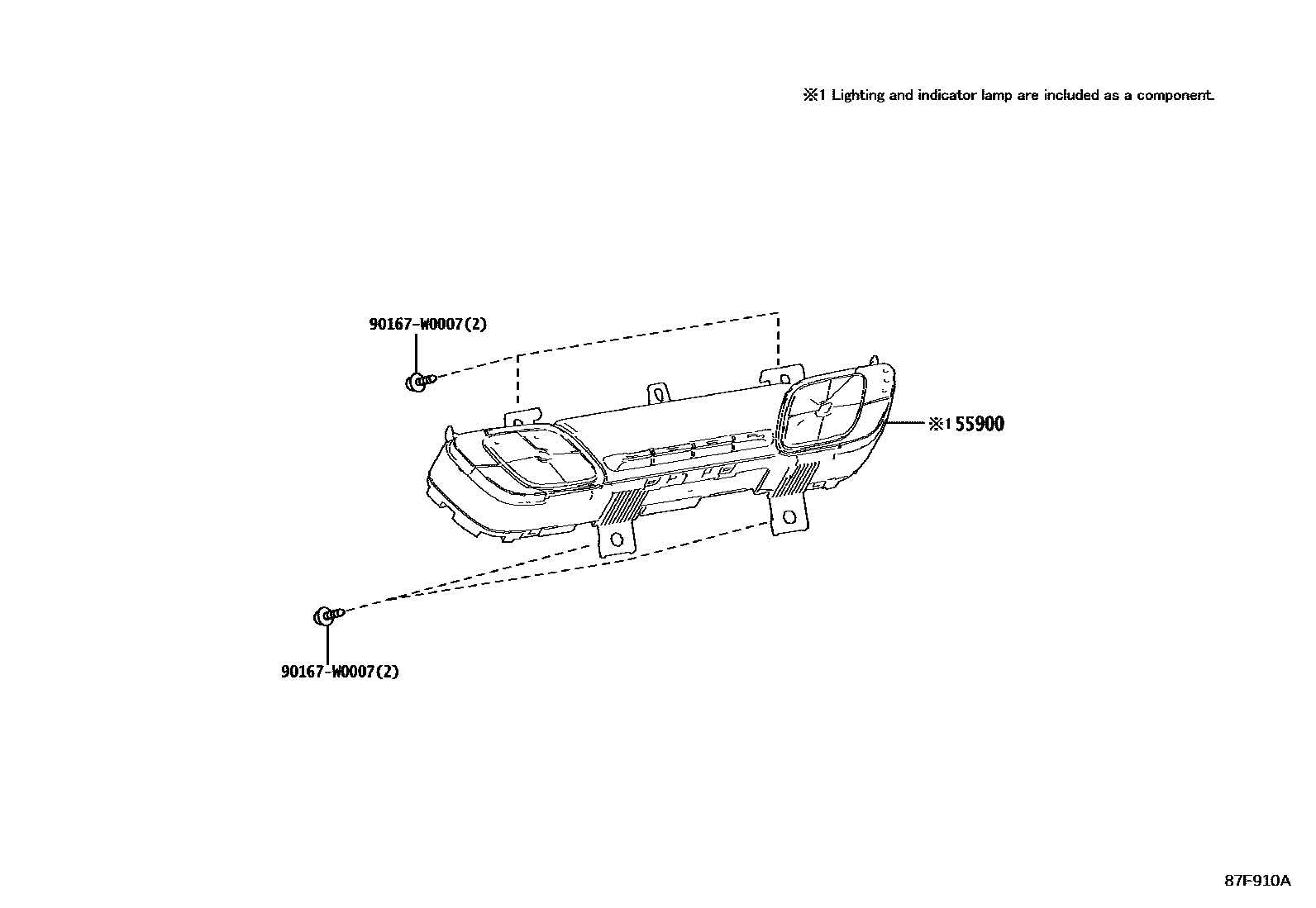

55900CONTROL ASSY, AIR CONDITIONER

main55900-F4070iNGX50..LHD;NGX10..LHD..E201610-201705

sub55900-F4071

main55900-F4071iNGX50..LHD;NGX10..LHD..E201706-201909

main55900-F4080iNGX10..LHD..N201610-201705

sub55900-F4081

main55900-F4081iNGX10..LHD..N201706-201909

main55900-F4140iNGX10,50..RHD..E201610-201705

sub55900-F4141

main55900-F4141iNGX10,50..RHD..E201706-201909

main55900-F4150iNGX10,50..RHD..N201610-201705

sub55900-F4151

main55900-F4151iNGX10,50..RHD..N201706-201909

main55900-F4160iNGX10..RHD..D201610-201705

sub55900-F4161

main55900-F4161iNGX10..RHD..D201706-201909

main55900-F4170iNGX10..LHD..D201610-201705

sub55900-F4171

main55900-F4171iNGX10..LHD..D201706-201909

main55900-F4420iNGX10,50,ZYX10..LHD..E201909

main55900-F4430iNGX10,50,ZYX10..LHD..N201909

main55900-F4460iNGX10..RHD..E201909

main55900-F4470iNGX10..RHD..N201909

main55900-F4490iNGX10..D201909

90167W0007

main90167-W0007¥110

2 parts on this diagram · 5 diagrams in section
