HEV INVERTER

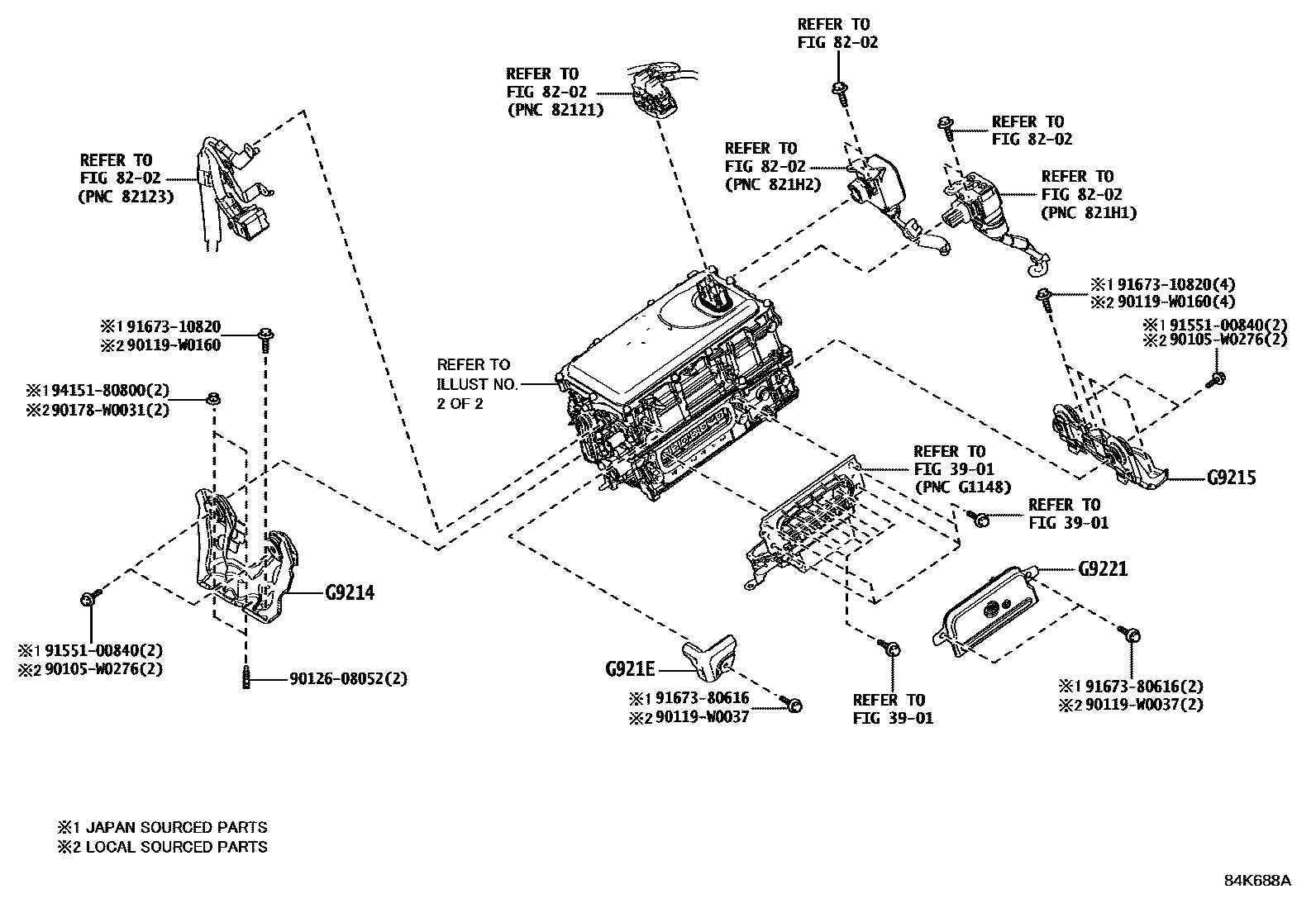

Parts diagram

3901

8202

G9214BRACKET, INVERTER, NO.1

mainG921447070i201909

G9215BRACKET, INVERTER, NO.2

mainG921547050i201909

G921EPROTECTOR, INVERTER

mainG921E47010i201909

G9221COVER, INVERTER

mainG902247050i201909

90105W0276

main90105-W0276

90119W0037

main90119-W0037¥60

90119W0160

main90119-W0160

9012608052

main90126-08052¥80

90178W0031

main90178-W0031¥100

9155100840

main91551-00840¥80

9167310820

main91673-10820¥80

9167380616

main91673-80616¥60

9415180800

main94151-80800¥80

15 parts on this diagram · 2 diagrams in section
