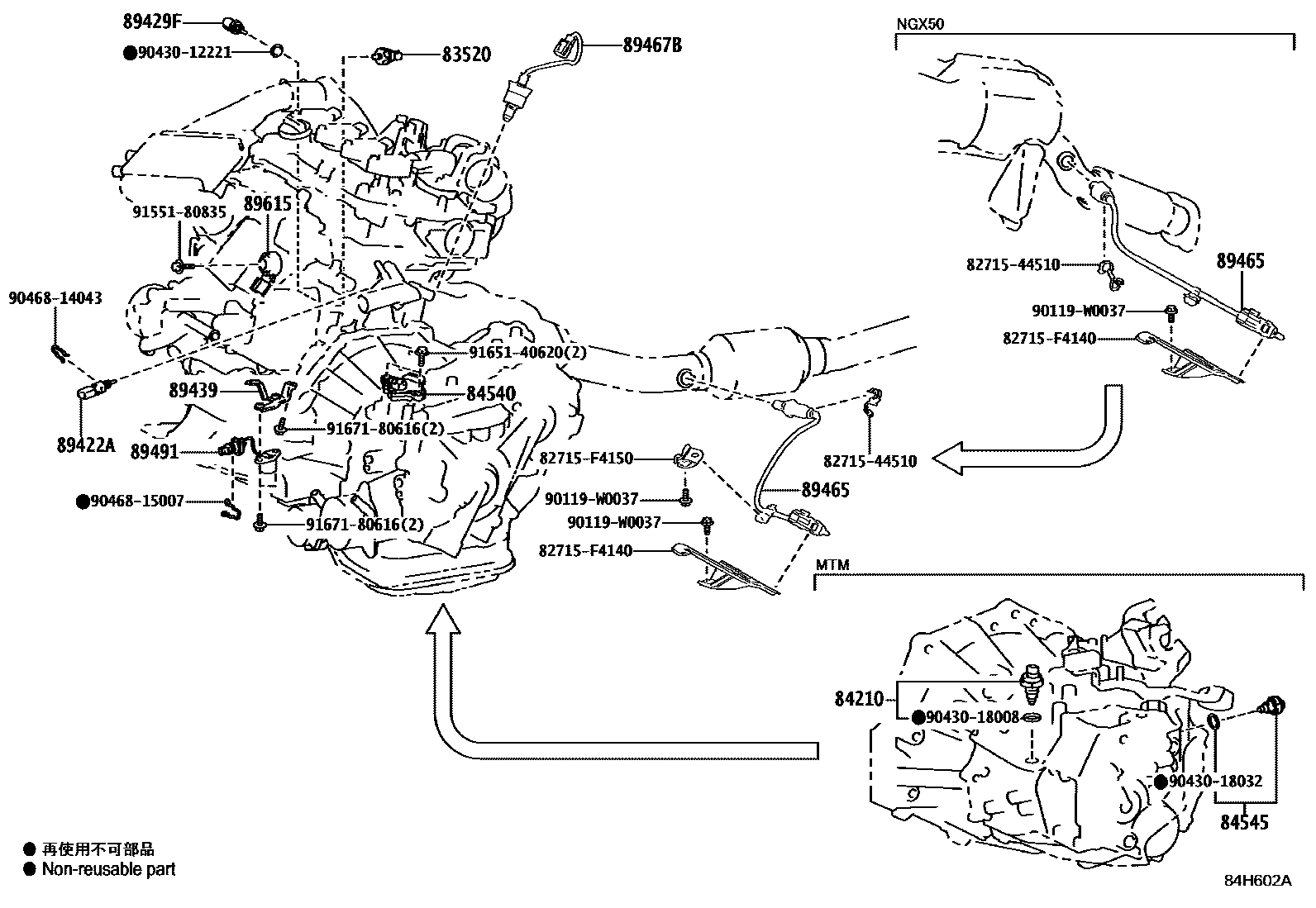

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1ENGINE ROOM 0005 1ENGINE ROOM RELAY BLOCK 0006 1ENGINE ROOM RELAY BLOCK 0007 1COWL 0008 1COWL 0009 1INSTRUMENT PANEL 0010 1INSTRUMENT PANEL 0011 1STEERING 0012 1SEAT 0013 1DOOR & ROOF 0014 1FLOOR & BACK DOOR

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-60060iNGX10,50201610-201909

84210SWITCH ASSY, BACK-UP LAMP

main84210-52050iNGX10..6F201610-201909

84540SWITCH ASSY, NEUTRAL START

main84540-52070iNGX10,50..CVT201610-201909

84545SWITCH, NEUTRAL POSITION

main84545-52010iNGX10..6F201610-201909

89422ASENSOR, WATER TEMPERATURE

main89422-47010iNGX10,50201610-201909

89429FSENSOR, TEMPERATURE

main89429-12010iNGX10,50201610-201909

89439BRACKET, SENSOR

main15367-47010iNGX10,50201712-201909

main89439-12070iNGX10,50201610-201711

sub15367-47010

89465SENSOR, OXYGEN

main89465-10080iNGX10201610-201909

main89465-10090iNGX50201610-201909

89467BSENSOR, AIR FUEL RATIO

main89467-12270iNGX10,50201610-201909

main89467-47030iZYX10201909

89491SENSOR, ENGINE OIL LEVEL

main89491-12040iNGX10,50201610-201710

sub89491-50080

main89491-28090iZYX10202104-202204

sub89491-28091

main89491-28091iZYX10202205

main89491-47011iZYX10201909-202103

sub89491-28090

main89491-50080iNGX10,50201711-201805

sub89491-50081

main89491-50081iNGX10,50201806-202204

sub89491-50082

main89491-50082iNGX10,50202205

89615SENSOR, KNOCK CONTROL

main89615-02020iZYX10201909

MARK 89615-02020

main89615-20090iZYX10201909

MARK 89615-20090

main89615-20090iNGX10,50201610-201909

8271544510BRACKET,WIRING HARNESS CLAMP

main82715-44510

82715F4140BRACKET,WIRING HARNESS CLAMP

main82715-F4140

82715F4150BRACKET,WIRING HARNESS CLAMP

main82715-F4150

90119W0037

main90119-W0037

9043012221

main90430-12221

9043018008

main90430-18008

9043018032

main90430-18032

9046814043

main90468-14043

9046815007

main90468-15007

9155180835

main91551-80835

9165140620

main91651-40620

9167180616

main91671-80616

23 parts on this diagram · 14 diagrams in section
