WIRING & CLAMP

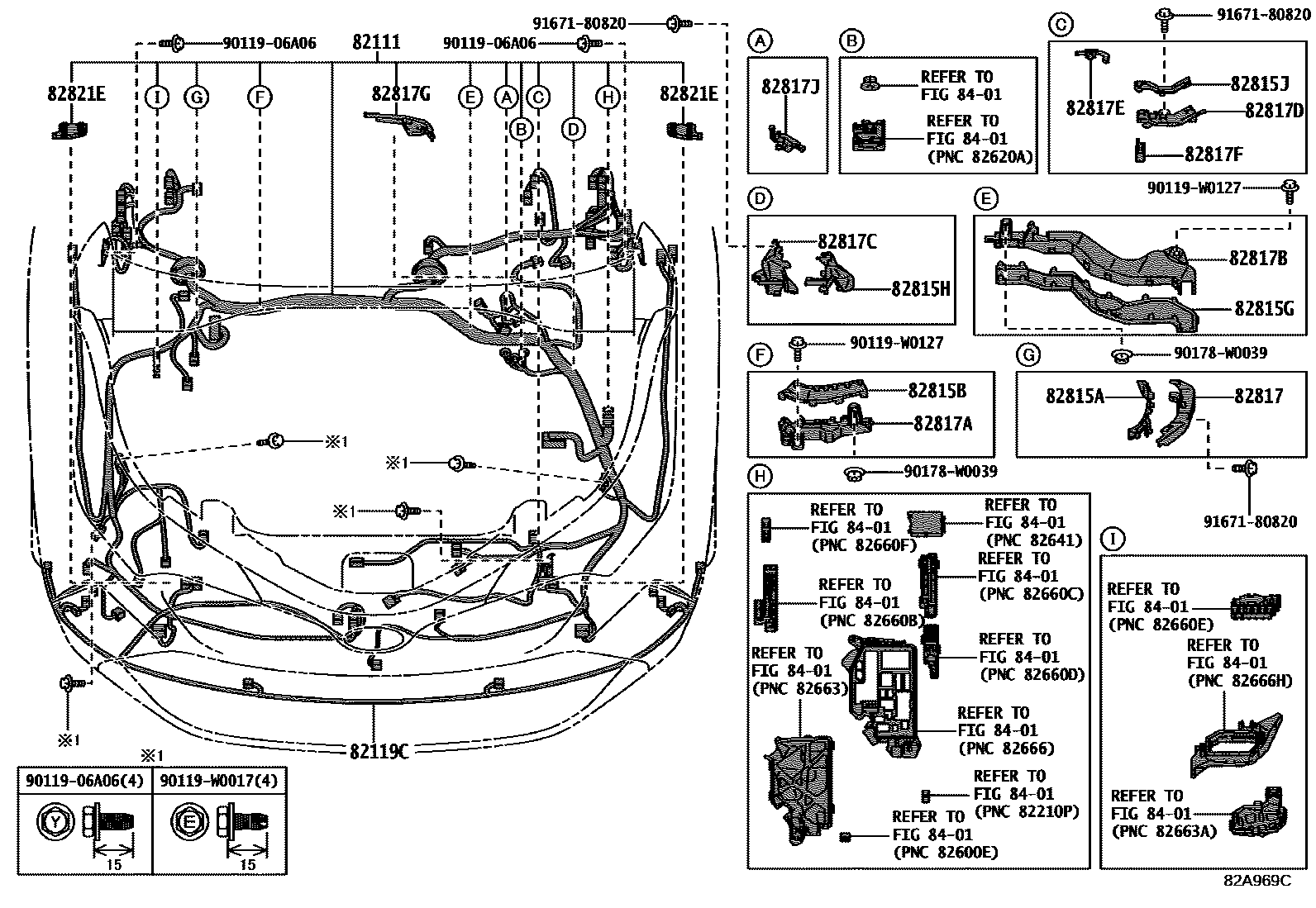

Parts diagram

82111WIRE, ENGINE ROOM MAIN

main82111-F4580i201610-201805

main82111-F4590i201610-201805

main82111-F4K40i201610-201805

main82111-F4K60i201610-201805

main82111-F4W00i201805-201909

main82111-F4W20i201805-201909

main82111-F4W30i201805-201909

main82111-F4W60i201805-201909

main82111-F4X30i201909-202010

main82111-F4X40i201909-202010

main82115-F4170i201909-202010

main82115-F4190i201909-202010

main82115-F4240i201909-202010

main82115-F4260i201909-202010

main82115-F4410i202010-202201

main82115-F4411i202201

main82115-F4420i202010-202201

main82115-F4421i202201

main82115-F4500i202010-202201

main82115-F4501i202201

main82115-F4550i202010-202201

main82115-F4551i202201

main82115-F4560i202010-202201

main82115-F4561i202201

main82115-F4590i202010-202201

main82115-F4592i202201

82119CWIRE, ENGINE ROOM, NO.5

main82119-F4130i201909

HEADLAMP-PROJECTOR

main82119-F4140i201909

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-47880i¥400201909

main82815-F4200i201610-201909

main82815-F4240i¥870201610-201909

82815BCOVER, WIRING HARNESS PROTECTOR

main82815-47C20i¥500201909

main82815-F4210i201610-201909

main82815-F4250i¥2,380201610-201909

82815GCOVER, WIRING HARNESS PROTECTOR NO.5

main82815-47C80i201909

main82815-F4220i201610-201909

main82815-F4260i¥2,380201610-201909

82815HCOVER, WIRING HARNESS PROTECTOR NO.6

main82815-47D20i201909

main82815-F4230i201610-201909

main82815-F4270i¥1,610201610-201909

82815JCOVER, WIRING HARNESS PROTECTOR, NO.7

main82815-F4280i¥470201610-201909

main82815-F4320i201909

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-47N30i¥520201909

main82817-F4230i201610-201909

main82817-F4270i¥8,900201610-201909

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-47N40i¥890201909

main82817-F4240i201610-201909

main82817-F4280i¥2,120201610-201909

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-47N50i201909

main82817-F4250i201610-201909

main82817-F4290i¥2,120201610-201909

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-47N90i201909

main82817-F4260i201610-201909

main82817-F4300i¥1,920201610-201909

82817DPROTECTOR, WIRING HARNESS, NO.5

main82817-F4310i¥700201610-201909

main82817-F4450i201909

82817EPROTECTOR, WIRING HARNESS, NO.6

main82817-F4320i¥220201610-201909

main82817-F4510i201909

82817FPROTECTOR, WIRING HARNESS, NO.7

main82817-F4470i¥320201610-201909

82817GPROTECTOR, WIRING HARNESS, NO.8

main82817-F4520i201610-201909

main82817-F4530i¥360201610-201909

82817JPROTECTOR, WIRING HARNESS, NO.9

main82817-F4480i201610-201909

82821ECOVER, CONNECTOR

8401

9011906A06

main90119-06A06¥60

90119W0017

main90119-W0017¥90

90119W0127

main90119-W0127¥80

90178W0039

main90178-W0039¥60

9167180820

main91671-80820¥80

23 parts on this diagram · 16 diagrams in section
