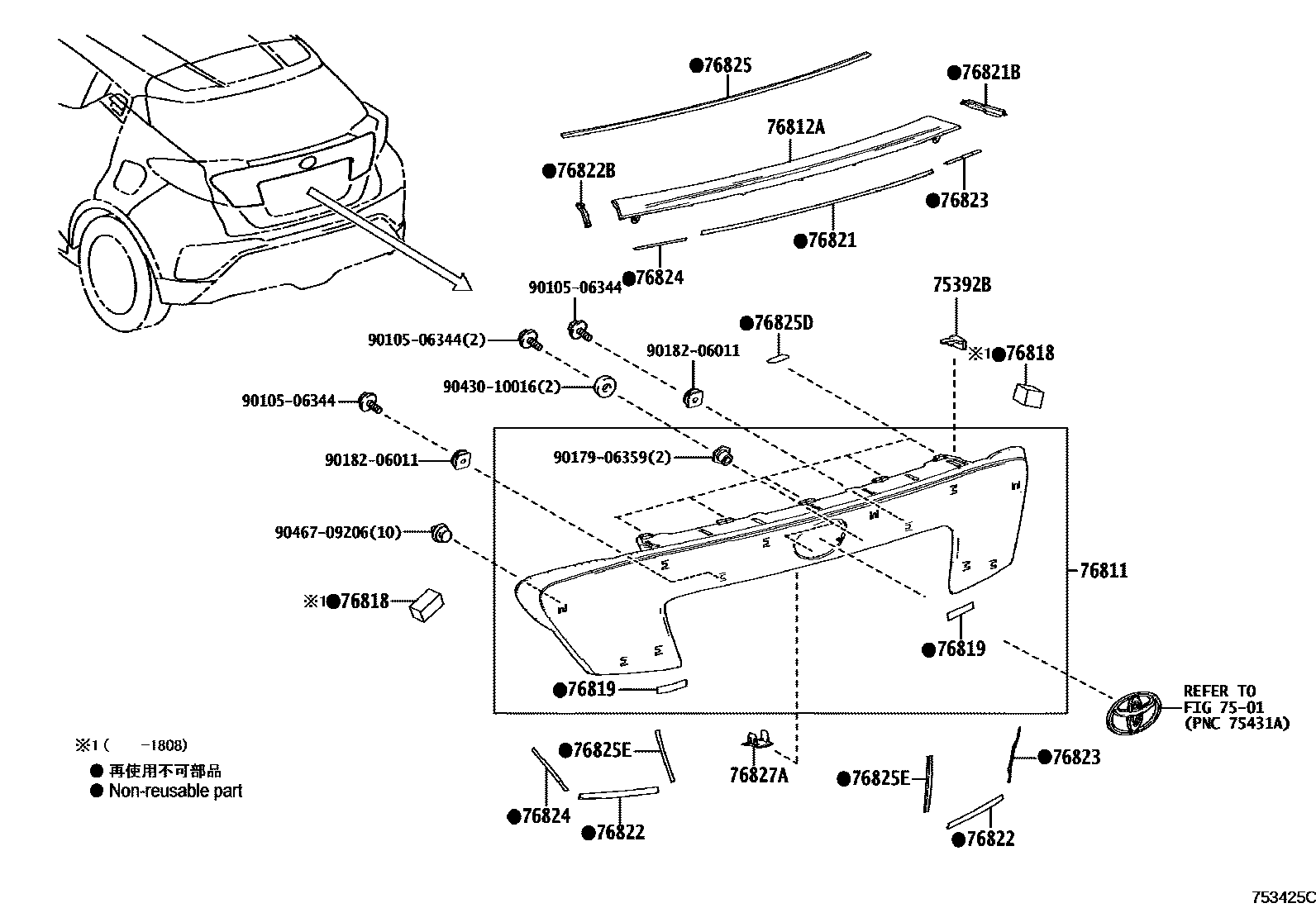

REAR MOULDING

7501

75392BRETEINER, OUTSIDE MOULDING, NO.1

main75392-35200×7i201909

76811GARNISH, BACK DOOR, OUTSIDE

main76811-F4901i201909

76812AGARNISH, BACK DOOR, OUTSIDE NO.2

main76812-F4901i201610-201909

main76812-F4120i201909

HEADLAMP-PROJECTOR&AUDIO-CD & USB & *BT, FOR GENERAL

76818PAD, BACK DOOR OUTSIDE GARNISH

main52462-F4010×2i201610-201808

76819SEAL, BACK DOOR OUTSIDE GARNISH

main76819-F4020×2i201610-201909

76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER

main76823-F4010i201909

main76823-F4070i201909

HEADLAMP-PROJECTOR&AUDIO-CD & USB & *BT, FOR GENERAL

76821BPROTECTOR, BACK DOOR GARNISH SIDE, RH

main76841-F4010i201610-201909

main76841-F4070i201909

HEADLAMP-PROJECTOR&AUDIO-CD & USB & *BT, FOR GENERAL

76822PROTECTOR, BACK DOOR GARNISH MOULDING, LOWER

main76821-F4010×2i201610-201909

76822BPROTECTOR, BACK DOOR GARNISH SIDE, LH

main76842-F4010i201610-201909

main76841-F4070i201909

HEADLAMP-PROJECTOR&AUDIO-CD & USB & *BT, FOR GENERAL

76823PROTECTOR, BACK DOOR GARNISH MOULDING, RH

main76824-F4010×2i201909

HEADLAMP-PROJECTOR&AUDIO-CD & USB & *BT, FOR GENERAL

76824PROTECTOR, BACK DOOR GARNISH MOULDING, LH

main76824-F4010×2i201909

HEADLAMP-PROJECTOR&AUDIO-CD & USB & *BT, FOR GENERAL

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-F4010i201610-201909

main76825-F4070×2i201909

HEADLAMP-PROJECTOR,NO.2:REFER ILLUST.

76825DPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.1

main76835-F4010×5i201610-201909

76825EPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.2

main76822-F4010×2i201610-201909

76827ARETAINER, BACK DOOR GARNISH, NO.2

main76827-F4010i201610-201909

9010506344

main90105-06344

9017906359

main90179-06359

9018206011

main90182-06011

9043010016

main90430-10016

9046709206

main90467-09206

21 parts on this diagram · 2 diagrams in section
