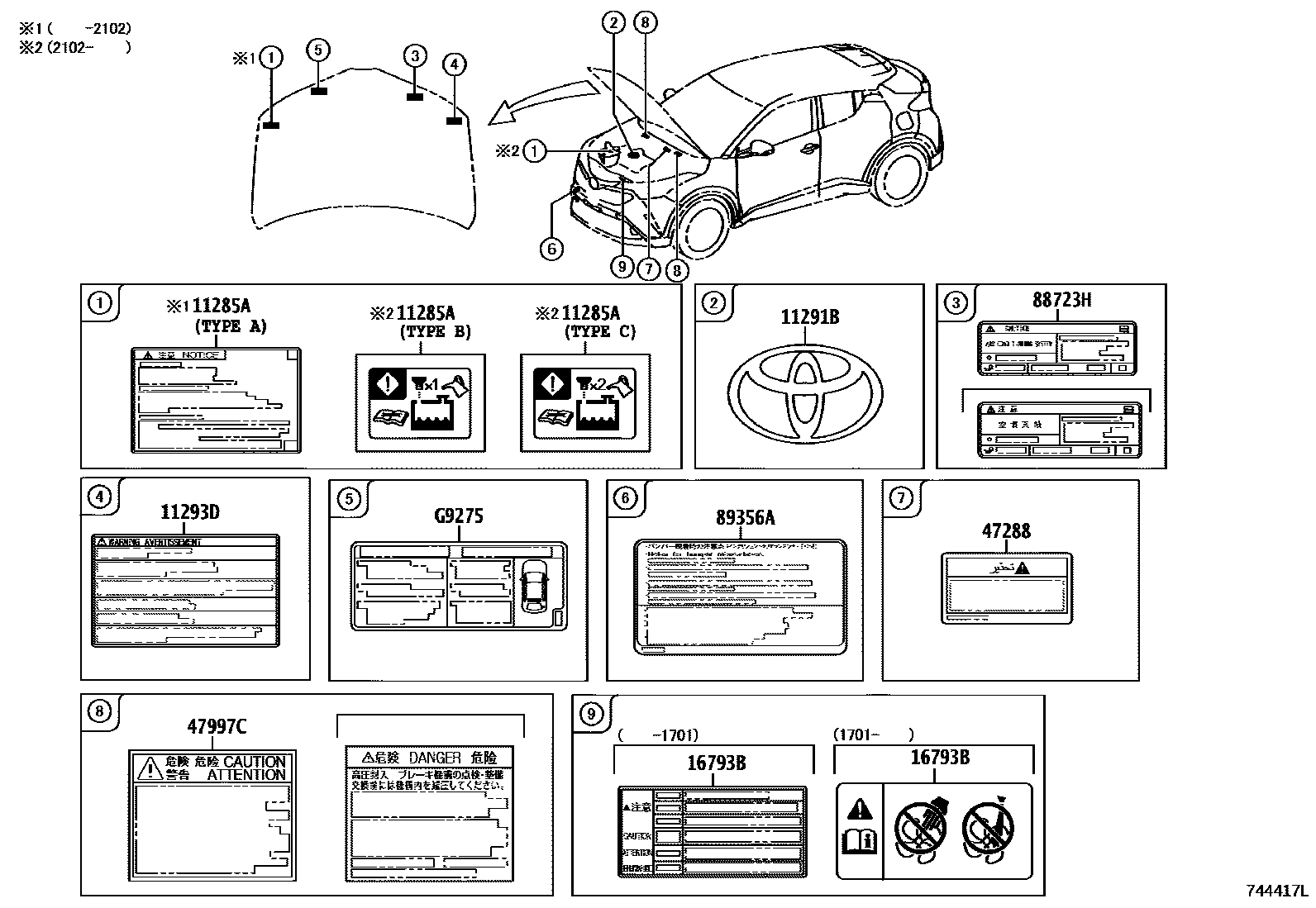

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1ENGINE ROOM 0002 1EXTERIOR 0003 1INTERIOR

11285ALABEL, COOLANT SYSTEM NOTICE

main11285-0T110i8NRFTS..NGX10,50202102

TYPE B:REFER ILLUST.

main11285-0T120i8NRFTS,2ZRFXE..NGX10,50,ZYX10202102

TYPE C:REFER ILLUST.

main11285-33040i2ZRFXE..ZYX10201909-202102

TYPE A:REFER ILLUST.

main11285-36040i8NRFTS..NGX10,50201610-202102

11291BPLATE, ENGINE NAME

main11291-37100i2ZRFXE..ZYX10201909

11293DLABEL, ENGINE CAUTION

main11293-37060i2ZRFXE..ZYX10201909

16793BLABEL, COOLING FAN INFORMATION

main16793-31040i8NRFTS..NGX10,50201610-201701

main16793-36050i8NRFTS..NGX10,50201701-201909

47288LABEL, BRAKE FLUID NOTICE

main47288-71010iZYX10201909

LEBANON SPEC

47997CLABEL, ACCUMULATOR CAUTION, NO.1

main47997-76010iZYX10201909-202011

main47997-76010iZYX10202011

(J)

main47997-F4010iZYX10202011

(L)

88723HLABEL, COOLER SERVICE CAUTION

main88723-02350iZYX10201909

main88723-F4060iNGX10,50201610-201909

89356ALABEL, CLEARANCE WARNING INFORMATION

G9275LABEL, BATTERY CAUTION, NO.1

mainG927547200iZYX10201909

9 parts on this diagram · 3 diagrams in section
