REAR SEAT & SEAT TRACK

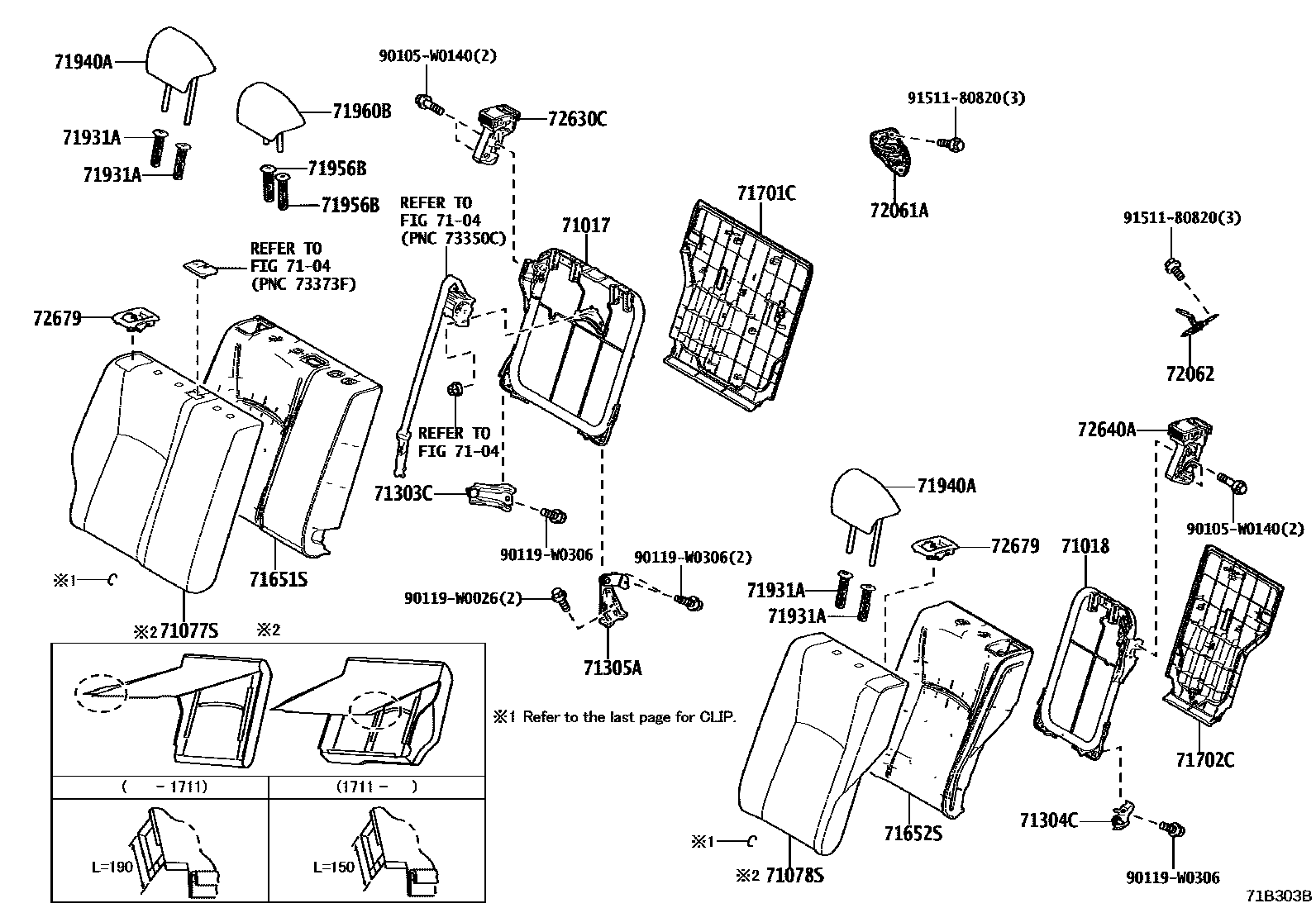

Parts diagram
71017FRAME SUB-ASSY, REAR SEATBACK, RH
main71017-F4010i¥18,500201610-202211
sub71017-F4011
main71017-F4011i202211-202309
71018FRAME SUB-ASSY, REAR SEATBACK, LH
main71018-F4010i¥11,100201610-202211
main71018-F4011i202211-202309
7104
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-F4100-C1i201610-201711
DARK GREY/BLACK,TRIM2#
main71077-F4101-C1i201711-201805
BLACK/DARK GREY,TRIM2#
main71077-F4101-C2i201805-201909
BLACK/DARK GREY,TRIM2#
main71077-F4120-C2i201610-201711
LICORICE,TRIM2#
main71077-F4121-C2i201711-201805
LICORICE,TRIM2#
main71077-F4121-E0i201805-201909
LICORICE,TRIM2#
main71077-F4310-C1i201909-201911
BLACK,TRIM2#
main71077-F4311-C1i201912-202211
BLACK,TRIM2#
main71077-F4312-C1i202211-202309
BLACK/DARK GREY/MED GRAY,TRIM2#
main71077-F4330-C1i201909-201911
BLACK,TRIM4#
main71077-F4331-C1i201912-202211
BLACK,TRIM4#
main71077-F4332-C1i202211-202309
BLACK/ORCHIDBROWN/MD.GRAY,TRIM4#
main71077-F4350-C3i201909-201911
BLACK,TRIM2#
main71077-F4350-C3i201909-201911
SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER & *PAS:MANUAL,BLACK,TRIM2#
main71077-F4351-C3i201912-202211
SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER & *PAS:MANUAL,BLACK,TRIM2#
main71077-F4351-C3i201912-202211
BLACK,TRIM2#
main71077-F4352-C3i202211-202309
BLACK/MEDIUM GRAY,TRIM2#
main71077-F4352-C3i202211-202309
SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER & *PAS:MANUAL,BLACK/MEDIUMGRAY,TRIM2#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71078-F4060-C1i201610-201711
DARK GREY/BLACK,TRIM2#
main71078-F4061-C1i201711-201805
BLACK/DARK GREY,TRIM2#
main71078-F4061-C2i201805-201909
BLACK/DARK GREY,TRIM2#
main71078-F4080-E2i201610-201711
LICORICE,TRIM2#
main71078-F4081-E2i201711-201805
LICORICE,TRIM2#
main71078-F4081-E3i201805-201909
LICORICE,TRIM2#
main71078-F4260-C1i201909-201911
BLACK,TRIM2#
main71078-F4261-C1i201912-202211
BLACK,TRIM2#
main71078-F4262-C1i202211-202309
BLACK/DARK GREY/MED GRAY,TRIM2#
main71078-F4280-C1i201909-201911
BLACK,TRIM4#
main71078-F4281-C1i201912-202211
BLACK,TRIM4#
main71078-F4282-C1i202211-202309
BLACK/ORCHIDBROWN/MD.GRAY,TRIM4#
main71078-F4300-C3i201909-201911
SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER & *PAS:MANUAL,BLACK,TRIM2#
main71078-F4300-C3i201909-201911
BLACK,TRIM2#
main71078-F4301-C3i201912-202211
BLACK,TRIM2#
main71078-F4301-C3i201912-202211
SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER & *PAS:MANUAL,BLACK,TRIM2#
main71078-F4302-C3i202211-202309
BLACK/MEDIUM GRAY,TRIM2#
main71078-F4302-C3i202211-202309
SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER & *PAS:MANUAL,BLACK/MEDIUMGRAY,TRIM2#
71303CHINGE SUB-ASSY, REAR SEATBACK, RH
main71303-F4010i¥1,200201610-201909
71304CHINGE SUB-ASSY, REAR SEATBACK, LH
main71304-F4010i¥1,200201610-201909
71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER
main71305-F4010i¥3,170201610-201909
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
main71651-F4010i¥10,100201610-201909
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71652-F4010i¥6,600201610-201909
71701CBOARD SUB-ASSY, REAR SEATBACK, RH
main71701-F4010i¥8,500201610-201909
71702CBOARD SUB-ASSY, REAR SEATBACK, LH
main71702-F4010i¥6,800201610-201909
71931ASUPPORT, REAR SEAT HEADREST
main71930-F4010-C0i201610-201805
W(LOCK),EU BLACK,TRIM2#
main71930-F4010-C1i201909
W(LOCK),BLACK,TRIM2#,4#
main71930-F4010-C1i201805-201909
W(LOCK),BLACK,TRIM2#
main71930-F4010-C1i201909
W(LOCK),BLACK,TRIM2#,4#,8#
main71931-F4010-C0i201610-201805
W/O(LOCK),EU BLACK,TRIM2#
main71931-F4010-C1i201909
W/O(LOCK),BLACK,TRIM2#,4#
main71931-F4010-C1i201805-201909
W/O(LOCK),BLACK,TRIM2#
main71931-F4010-C1i201909
W/O(LOCK),BLACK,TRIM2#,4#,8#
71940AHEADREST ASSY, REAR SEAT
main71940-F4010-B4i201909
DARK GREY,TRIM2#
main71940-F4010-C1i201805-201909
BLACK,TRIM2#
main71940-F4010-C2i201610-201805
BLACK,TRIM2#
main71940-F4030-C1i201610-201805
BLACK,TRIM20
main71940-F4030-E1i201805-201909
LICORICE,TRIM2#
main71940-F4030-E4i201610-201805
LICORICE,TRIM20
main71940-F4030-E5i201909
ORCHID BROWN,TRIM4#
main71940-F4180-C1i201909
BLACK,TRIM2#,4#,8#
main71940-F4180-C1i201909
SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER & *PAS:MANUAL,BLACK,TRIM2#,4#,8#
main71940-F4180-C1i201909
SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER & *PAS:MANUAL,BLACK,TRIM2#
71956BSUPPORT, REAR SEAT HEADREST
main71930-F4010-C0i201610-201805
W(LOCK),EU BLACK,TRIM2#
main71930-F4010-C1i201909
W(LOCK),BLACK,TRIM2#,4#
main71930-F4010-C1i201805-201909
W(LOCK),BLACK,TRIM2#
main71930-F4010-C1i201909
W(LOCK),BLACK,TRIM2#,4#,8#
main71931-F4010-C0i201610-201805
W/O(LOCK),EU BLACK,TRIM2#
main71931-F4010-C1i201805-201909
W/O(LOCK),BLACK,TRIM2#
main71931-F4010-C1i201909
W/O(LOCK),BLACK,TRIM2#,4#
main71931-F4010-C1i201909
W/O(LOCK),BLACK,TRIM2#,4#,8#
71960BHEADREST ASSY, REAR SEAT, CENTER
main71960-F4010-C2i201610-201909
BLACK,TRIM2#
main71960-F4010-C3i201909
BLACK,TRIM2#
main71960-F4010-C3i201909
BLACK,TRIM4#
main71960-F4130-C2i201909
BLACK,TRIM2#,4#,8#,NO.2:REFER ILLUST.
main71960-F4130-C2i201909
SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER & *PAS:MANUAL,BLACK,TRIM2#,4#,8#,NO.2:REFER ILLUST.
main71960-F4130-C2i201909
SEAT COVER MATERIAL-LEATHER&FRONT SEAT SLIDE-*DRS:POWER & *PAS:MANUAL,BLACK,TRIM2#,NO.2:REFER ILLUST.
72061ABASE SUB-ASSY, REAR SEATBACK LOCK, RH
main72061-F4010i201610-201806
sub72061-F4011
main72061-F4011i201807-201909
72062BASE SUB-ASSY, REAR SEATBACK LOCK, LH
main72062-F4010i201610-201806
main72062-F4011i201807-201909
72630CLOCK ASSY, REAR SEATBACK, RH
main72630-F4010-C1i201610-201805
EU BLACK,TRIM2#
main72630-F4010-C2i201805-201909
BLACK,TRIM2#
main72630-F4010-C2i201909
BLACK,TRIM2#,4#
main72630-F4010-C2i201909
BLACK,TRIM2#,4#,8#
72640ALOCK ASSY, REAR SEATBACK, LH
main72640-F4010-C1i201610-201805
EU BLACK,TRIM2#
sub72640-F4010¥3,210
main72640-F4010-C2i201805-201909
BLACK,TRIM2#
sub72640-F4010¥3,210
main72640-F4010-C2i201909
BLACK,TRIM2#,4#
sub72640-F4010¥3,210
main72640-F4010-C2i201909
BLACK,TRIM2#,4#,8#
sub72640-F4010¥3,210
72679BEZEL, REAR SEATBACK LOCK CONTROL
main72667-F4010-C1i201610-201805
EU BLACK,TRIM2#
main72667-F4010-C2i201805-201909
BLACK,TRIM2#
main72667-F4010-C2i201909
BLACK,TRIM2#,4#
main72667-F4010-C2i201909
BLACK,TRIM2#,4#,8#
90105W0140
main90105-W0140¥80
90119W0026
main90119-W0026
90119W0306
main90119-W0306
9151180820
main91511-80820¥80

25 parts on this diagram · 4 diagrams in section
