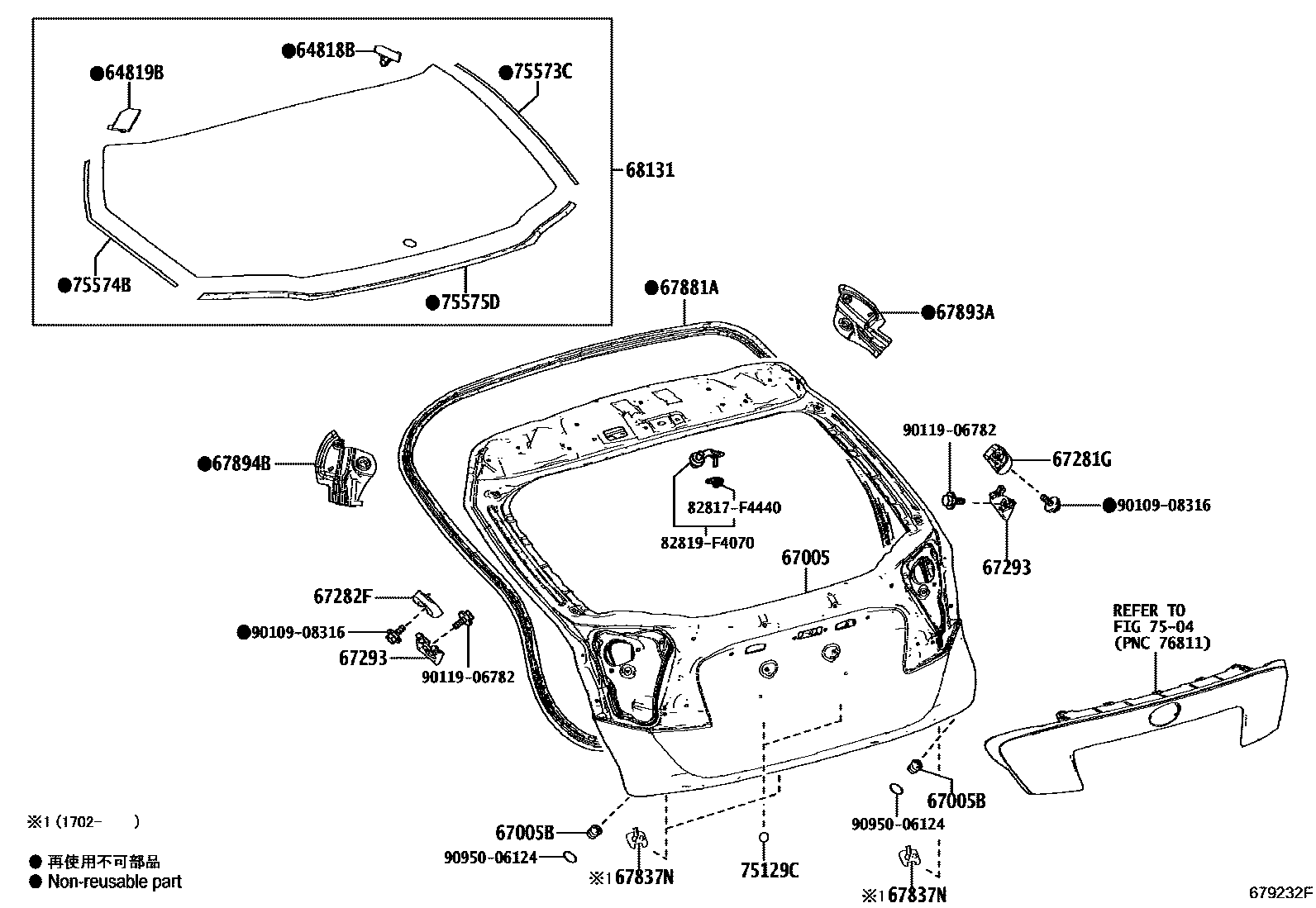

BACK DOOR PANEL & GLASS
64818BSPACER, BACK DOOR GLASS, NO.1
64819BSPACER, BACK WINDOW GLASS, NO.2
67005PANEL SUB-ASSY, BACK DOOR
AUDIO-RADIO LESS
AUDIO-CD & USB & *BT, FOR GENERAL
AUDIO-*DA, FOR GCC
67005BCUSHION(FOR BACK DOOR PANEL)
67281GSTOPPER, BACK DOOR, LOWER RH
67282FSTOPPER, BACK DOOR, LWR LH
67293CUSHION, BACK DOOR LOWER STOPPER
RH
LH
67837NSEAL, BACK DOOR DUST PROOF
67893APROTECTOR, BACK DOOR PANEL, NO.1
67894BPROTECTOR, BACK DOOR PANEL, NO.2
68131GLASS, BACK DOOR
SOUTH AFRICA SPEC&AUDIO-CD & 6SPEAKER & USB & *BT,SOUTH AFRICA
SOUTH AFRICA SPEC&AUDIO-RADIO LESS & 6SPEAKER
SOUTH AFRICA SPEC&REAR SIDE GLASS-GREEN
BACK DOOR GLASS-PRIVACY
REAR SIDE GLASS-PRIVACY
7504
75129CCUSHION, REAR LICENCE PLATE
75573CMOULDING, BACK WINDOW, OUTSIDE
75574BMOULDING, BACK WINDOW, OUTSIDE LH
75575DMOULDING, BACK WINDOW, LOWER
82817F4440PROTECTOR, WIRING HARNESS, NO.1
82819F4070GROMMET, WIRING HARNESS
main82819-F4070
9010908316
9011906782
9095006124
22 parts on this diagram · 2 diagrams in section
