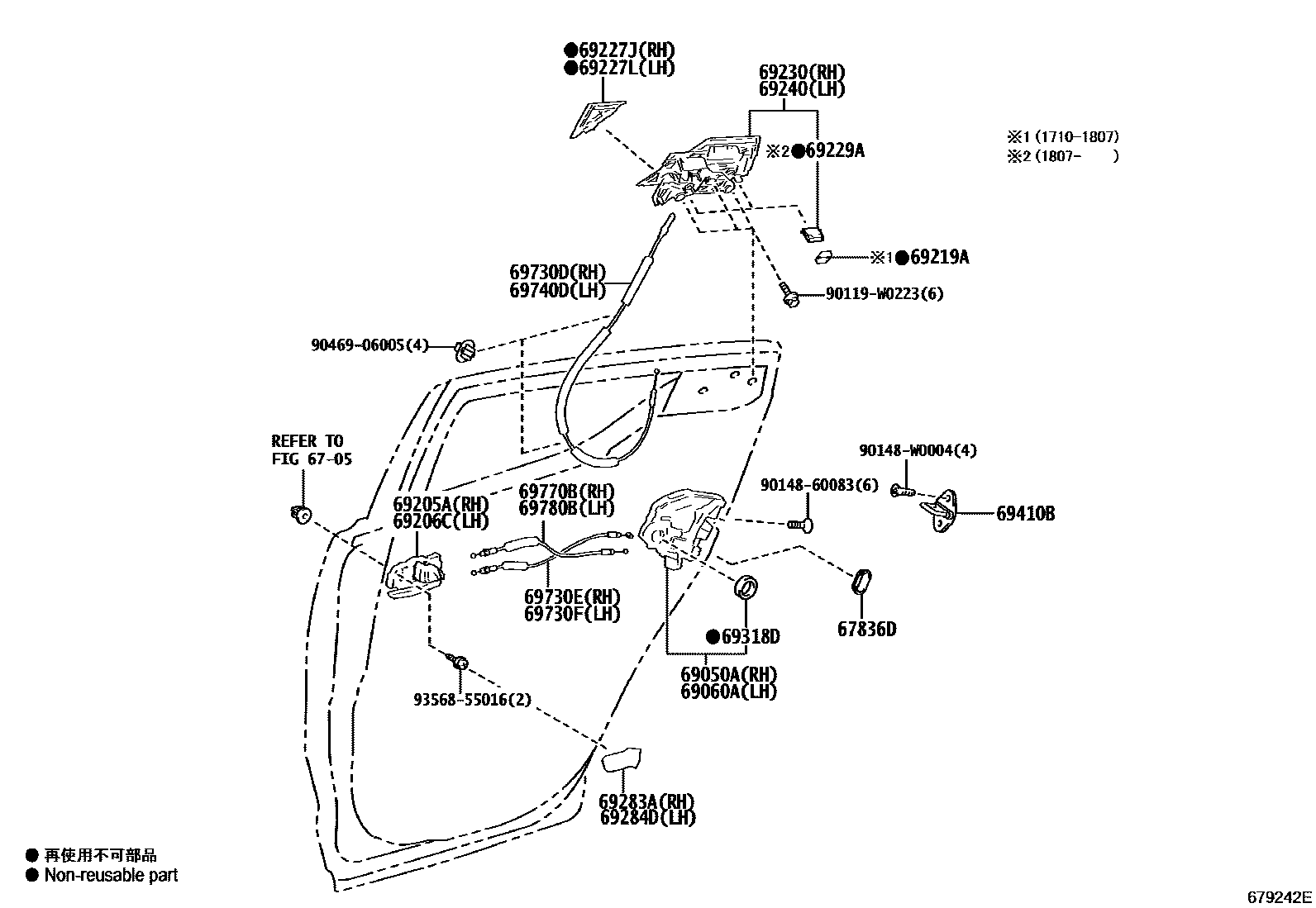

REAR DOOR LOCK & HANDLE
6705
67836DCOVER, REAR DOOR LOCK CHILD PROTECTION
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
SOUTH AFRICA SPEC
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
SOUTH AFRICA SPEC
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
EU BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM2#,4#,8#
69219ASEAL, REAR DOOR OUTSIDE HANDLE
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
BLACK
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
BLACK
69229ACAP, DOOR OUTSIDE HANDLE, NO.3
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070 ,2NA
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089 ,2VP
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
GRAY ME.,1G3 ,2NB
GRAY ME.,1G3
METAL STREAM ME,1K0
METAL STREAM ME,1K0 ,2NK
CELESTITE GRAY ME.,1K3
CELESTITE GRAY ME.,1K3 ,2TH ,2TJ ,2XG
SILVER ME.,1L0 ,2VU
SILVER ME.,1L0
BLACK MC.,209
BLACK MC.,209 ,2TA ,2XH
BLACK MC.,209 ,2ND
RED MC.,3T3
RED MC.,2NE ,2NF ,3T3
EMOTIONAL RED 2,3U5
EMOTIONAL RED 2,2TB ,3U5
PHANTOM BROWN ME.,2TN ,4W9
PHANTOM BROWN ME.,4W9
ORANGE ME.,4R8
ORANGE ME.,2TC ,4R8
YELLOW M.M.,2TM
OXIDE BRONZE ME.,2TD ,2TK ,2XJ ,6X1
OXIDE BRONZE ME.,6X1
DK. TEAL M.M.,2YB ,785
DK. TEAL M.M.,785
NEBULA BLUE ME.,8X2
NEBULA BLUE ME.,2NH ,8X2
NEBULA BLUE ME.,2NG ,2NH ,8X2
CYAN METALLIC,2RU ,2RV ,8W9
CYAN METALLIC,8W9
DEEP AMETHYST M.M.,9AH
DEEP AMETHYST M.M.,2XE ,9AH
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070 ,2NA
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089 ,2VP
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
GRAY ME.,1G3
GRAY ME.,1G3 ,2NB
METAL STREAM ME,1K0 ,2NK
METAL STREAM ME,1K0
CELESTITE GRAY ME.,1K3 ,2TH ,2TJ ,2XG
CELESTITE GRAY ME.,1K3
SILVER ME.,1L0
SILVER ME.,1L0 ,2VU
BLACK MC.,209
BLACK MC.,209 ,2ND
BLACK MC.,209 ,2TA ,2XH
RED MC.,3T3
RED MC.,2NE ,2NF ,3T3
EMOTIONAL RED 2,2TB ,3U5
EMOTIONAL RED 2,3U5
PHANTOM BROWN ME.,4W9
PHANTOM BROWN ME.,2TN ,4W9
ORANGE ME.,4R8
ORANGE ME.,2TC ,4R8
YELLOW M.M.,2TM
OXIDE BRONZE ME.,2TD ,2TK ,2XJ ,6X1
OXIDE BRONZE ME.,6X1
DK. TEAL M.M.,785
DK. TEAL M.M.,2YB ,785
NEBULA BLUE ME.,2NG ,2NH ,8X2
NEBULA BLUE ME.,8X2
NEBULA BLUE ME.,2NH ,8X2
CYAN METALLIC,8W9
CYAN METALLIC,2RU ,2RV ,8W9
DEEP AMETHYST M.M.,9AH
DEEP AMETHYST M.M.,2XE ,9AH
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69730ECABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, NO.1
69730FCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, NO.2
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
90119W0223
main90119-W0223
9014860083
main90148-60083
90148W0004
main90148-W0004
9046906005
main90469-06005
9356855016
main93568-55016
27 parts on this diagram · 1 diagram in section
