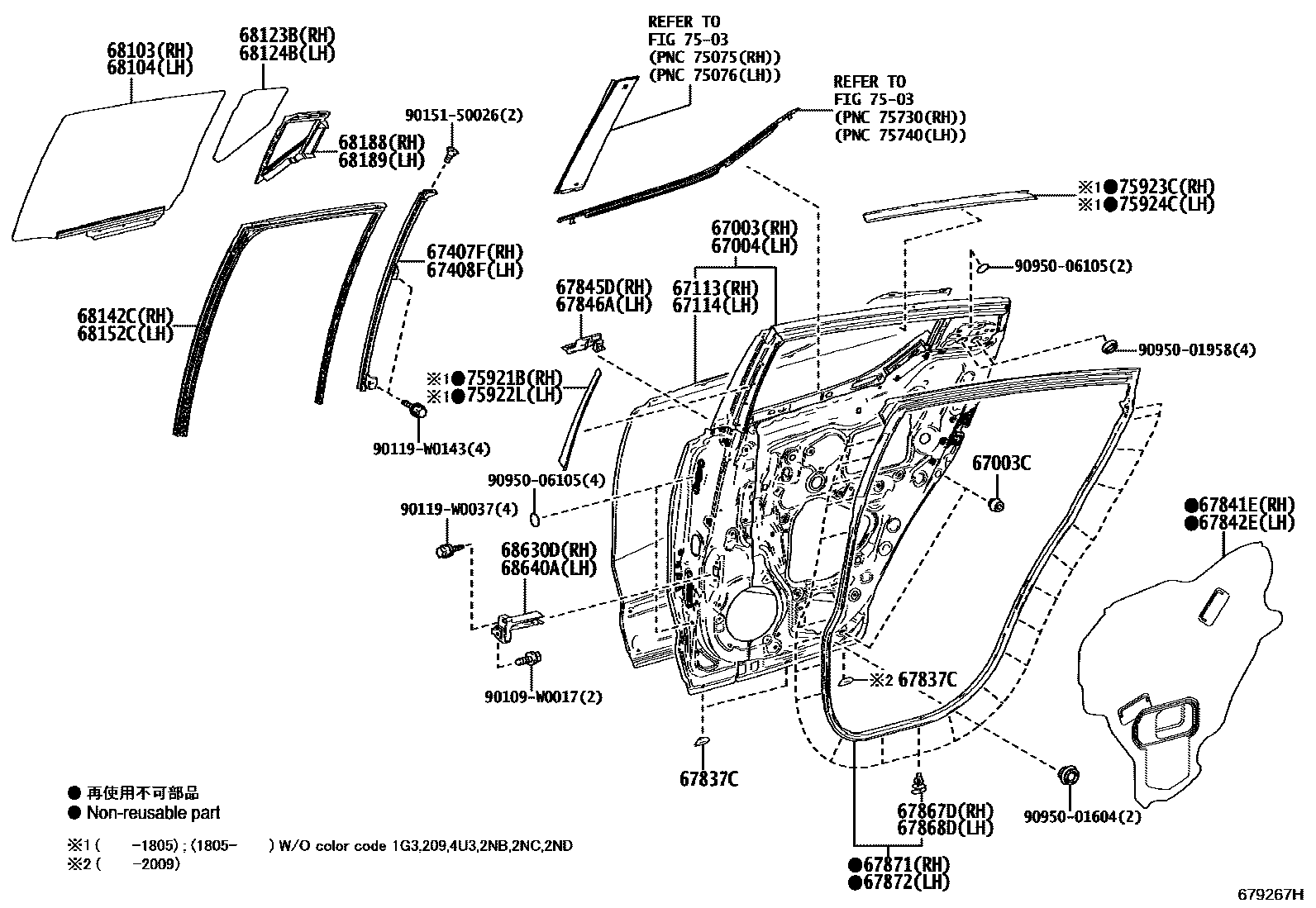

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-F4010iNGX10,50201610-201909

67003CCUSHION, REAR DOOR PANEL

main90541-09124iNGX10,50201610-201909

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-F4010iNGX10,50201610-201909

67113PANEL, REAR DOOR, OUTER RH

main67113-F4010iNGX10,50,ZYX10201610-201909

67114PANEL, REAR DOOR, OUTER LH

main67114-F4010iNGX10,50,ZYX10201610-201909

67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH

main67407-10080iNGX10,50,ZYX10201610-201909

67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH

main67408-10080iNGX10,50,ZYX10201610-201909

67837CSEAL, REAR DOOR DUST PROOF

main67837-F4020iNGX10,50201610-202009

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-F4010iNGX10,50,ZYX10201610-201909

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-F4010iNGX10,50201610-201909

67845DSEAL, REAR DOOR FRONT OUTSIDE, RH

main67845-F4010iNGX10,50201610-201909

67846ASEAL, REAR DOOR FRONT OUTSIDE, LH

main67846-F4010iNGX10,50201610-201909

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150iNGX10,50201610-201909

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150iNGX10,50201610-201909

67871WEATHERSTRIP, REAR DOOR, RH

main67871-F4010iNGX10,50,ZYX10201610-201909

67872WEATHERSTRIP, REAR DOOR, LH

main67872-F4010iNGX10,50,ZYX10201610-201909

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-F4010iZYX10;NGX10,50..D,N201610-201909

SOUTH AFRICA SPEC

main68103-F4020iNGX10,50..N201610-201909

REAR SIDE GLASS-PRIVACY

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-F4010iNGX10,50..RHD..E201610-201909

SOUTH AFRICA SPEC

main68104-F4020iNGX10,50..E201610-201909

REAR SIDE GLASS-PRIVACY

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-F4010iNGX10,50..D,N201610-201909

SOUTH AFRICA SPEC

main68123-F4020iNGX10,50..E201610-201909

REAR SIDE GLASS-PRIVACY

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-F4010iNGX10,50..D,N201610-201909

SOUTH AFRICA SPEC

main68124-F4020iNGX10,50..E201610-201909

REAR SIDE GLASS-PRIVACY

68142CRUN, REAR DOOR GLASS, RH

main68142-F4010iNGX10,50201610-201909

68152CRUN, REAR DOOR GLASS, LH

main68152-F4010iNGX10,50,ZYX10201610-201909

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-F4010iNGX10,50201610-202204

main68188-F4030iNGX10,50,ZYX10202205

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-F4010iNGX10,50201610-202204

main68189-F4030iNGX10,50,ZYX10202205

68630DCHECK ASSY, REAR DOOR, RH

main68630-F4010iNGX10,50201610-201909

68640ACHECK ASSY, REAR DOOR, LH

main68640-F4010iNGX10,50201610-201909

7503

75921BTAPE, BLACK OUT, NO.1 RH

main75977-F4010iNGX10,50201610-201805

main75977-F4010iNGX10,50201805-201909

0 OR 1PIECE,REF.ILL.

75922LTAPE, BLACK OUT, NO.1 LH

main75978-F4010iNGX10,50201610-201805

main75978-F4010iNGX10,50201805-201909

0 OR 1PIECE,REF.ILL.

75923CTAPE, BLACK OUT, NO.2 RH

main75987-F4010iNGX10,50201610-201805

main75987-F4010iNGX10,50201805-201909

0 OR 1PIECE,REF.ILL.

75924CTAPE, BLACK OUT, NO.2 LH

main75988-F4010iNGX10,50201610-201805

main75988-F4010iNGX10,50201805-201909

0 OR 1PIECE,REF.ILL.

90109W0017

main90109-W0017

90119W0037

main90119-W0037

90119W0143

main90119-W0143

9015150026

main90151-50026

9095001604

main90950-01604

9095001958

main90950-01958

9095006105

main90950-06105

38 parts on this diagram · 2 diagrams in section
