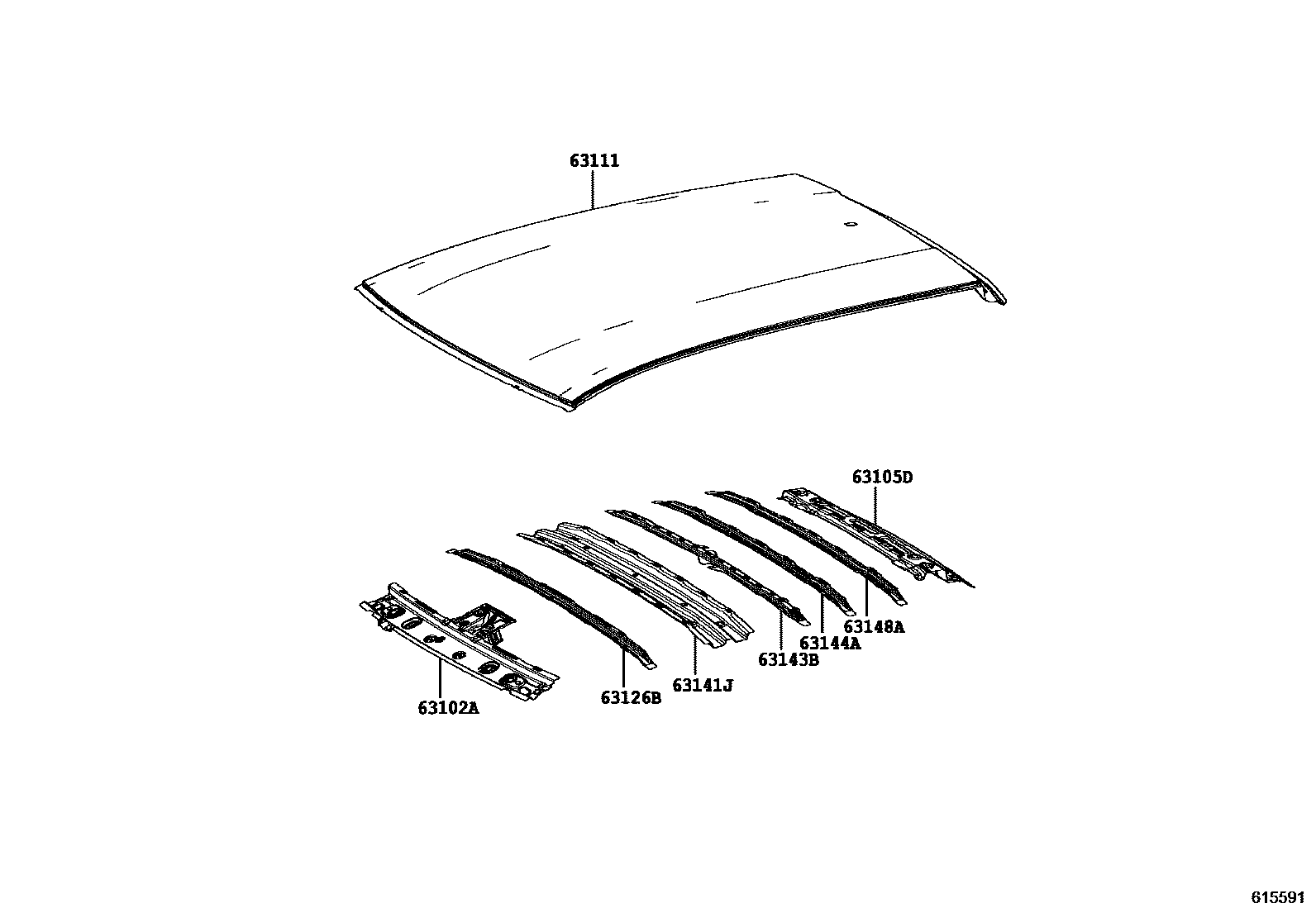

ROOF PANEL & BACK WINDOW GLASS

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-F4010iNGX10,50201610-202005

main63102-F4011iNGX10,50,ZYX10202005

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-F4010iNGX10,50201610-201909

63111PANEL, ROOF

main63111-F4010iNGX10,50201610-201909

63126BREINFORCEMENT, ROOF PANEL, REAR NO.2

main63126-F4010iNGX10,50201610-201909

63141JREINFORCEMENT, ROOF PANEL

main63141-F4010iNGX10,50201610-201909

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-F4010iNGX10,50201610-201909

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-F4010iNGX10,50201610-201909

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-F4010iNGX10,50201610-201909

8 parts on this diagram · 1 diagram in section
