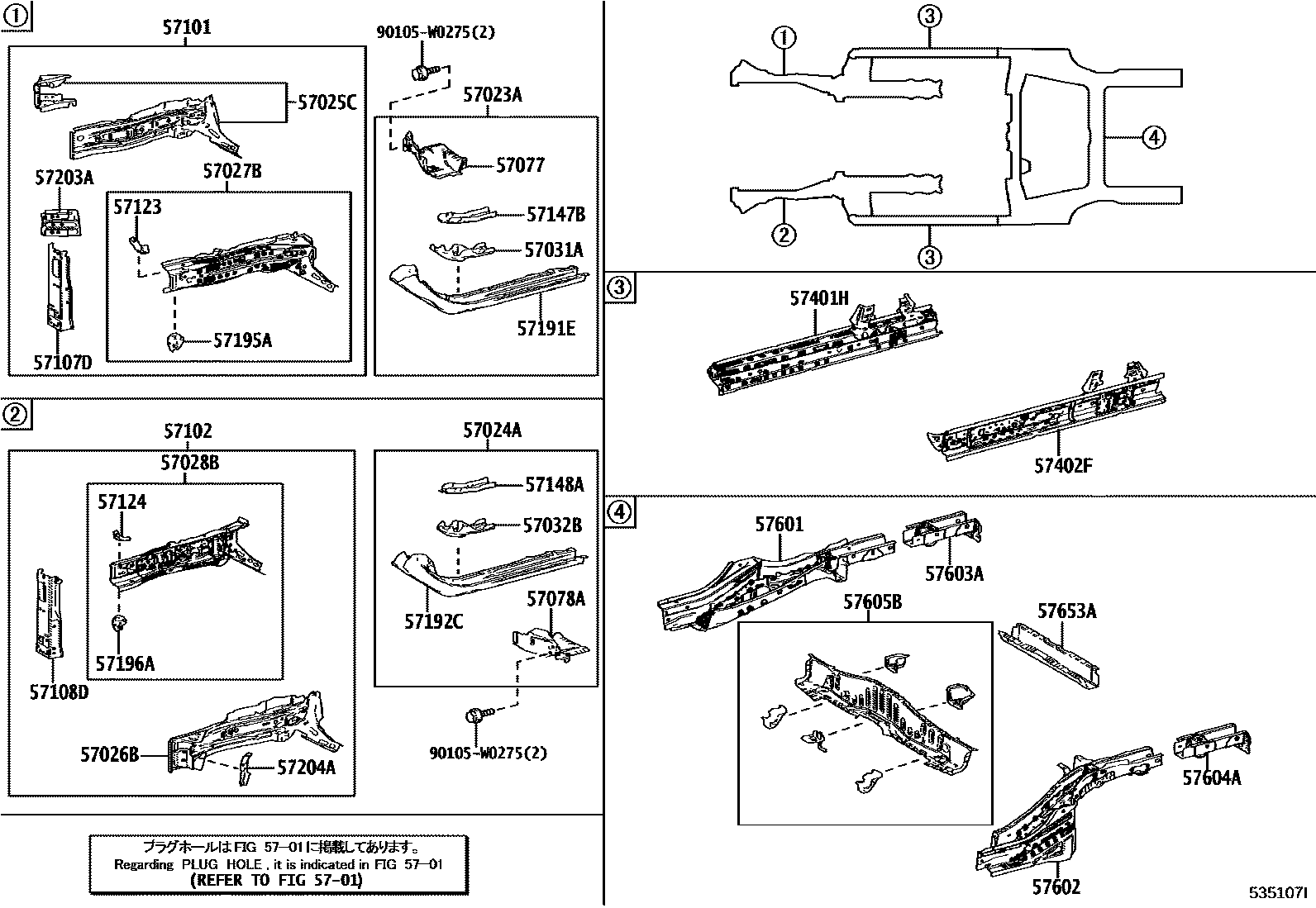

FLOOR SIDE MEMBER

0001 1 0002 1 0003 1

5701

57023AMEMBER SUB-ASSY, REAR SIDE, RH

main57023-F4010iZYX10201909-202008

sub57023-F4011

main57023-F4011iZYX10202008-202211

main57023-F4012iZYX10202211

main57023-F4020iNGX10,50201610-202008

main57023-F4021iNGX10,50202008-202211

main57023-F4022iNGX10,50202211

57024AMEMBER SUB-ASSY, REAR SIDE, LH

main57024-F4010iZYX10201909-202008

sub57024-F4011

main57024-F4011iZYX10202008-202211

main57024-F4012iZYX10202211

main57024-F4020iNGX10,50201610-202008

main57024-F4021iNGX10,50202008-202211

main57024-F4022iNGX10,50202211

57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-F4010iNGX10,50201610-201812

sub57025-F4011

main57025-F4011iNGX10,50201901-201909

57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-F4010iNGX10,50201610-201812

sub57026-F4011

main57026-F4011iNGX10,50201901-201909

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-F4010iNGX10,50201610-201708

sub57027-F4011

main57027-F4011iNGX10,50,ZYX10201709-201909

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-F4010iNGX10,50201610-201909

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-F4010iNGX10,50201610-201909

57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-F4010iNGX10,50201610-201909

57077BOX SUB-ASSY, TORQUE, FRONT RH

main57077-F4010iNGX10,50201610-202008

sub57077-F4011

main57077-F4011iNGX10,50,ZYX10202008-202211

main57077-F4070iNGX10,50,ZYX10202211

57078ABOX SUB-ASSY, TORQUE, FRONT LH

main57078-F4010iNGX10,50201610-202008

main57078-F4011iNGX10,50,ZYX10202008-202211

main57078-F4070iNGX10,50,ZYX10202211

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-F4900iNGX10,50201610-201709

sub57101-F4901

main57101-F4901iNGX10,50201709-201901

sub57101-F4903

main57101-F4903iNGX10,50201901-201909

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-F4900iNGX10,50201610-201901

sub57102-F4902

main57102-F4902iNGX10,50201901-201909

57107DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57107-F4010iNGX10,50201610-201909

57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57108-F4010iNGX10,50201610-201909

57123SUPPORT, FRONT SIDE MEMBER, RH

main57123-F4010iNGX10,50201610-201909

57124SUPPORT, FRONT SIDE MEMBER, LH

main57124-F4010iNGX10,50201610-201909

57147BPLATE, FRONT SIDE MEMBER, REAR RH

main57147-F4010iNGX10,50201610-201909

57148APLATE, FRONT SIDE MEMBER, REAR LH

main57148-F4010iNGX10,50201610-201909

57191EMEMBER SUB-ASSY, FRONT SIDE, INNER REAR RH

main57191-F4010iNGX10,50201610-201909

57192CMEMBER SUB-ASSY, FRONT SIDE, INNER REAR LH

main57192-F4010iNGX10,50201610-201909

57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH

main57195-F4010iNGX10,50201610-201909

57196AREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH

main57196-F4010iNGX10,50201610-201909

57203AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57203-F4010iNGX10,50201610-201812

sub57203-F4011

main57203-F4011iNGX10,50201901-201909

57204AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57204-F4010iNGX10,50201610-201812

sub57204-F4011

main57204-F4011iNGX10,50201901-201909

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-F4010iNGX10,50201610-201903

sub57401-F4011

main57401-F4011iNGX10,50201904-202206

main57401-F4012iNGX10,50,ZYX10202207

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-F4010iNGX10,50201610-201903

sub57402-F4011

main57402-F4011iNGX10,50201904-202206

main57402-F4012iNGX10,50,ZYX10202207

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-F4010iNGX10,50¥27,600201610-201909

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-F4010iNGX10,50¥27,600201610-201909

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-F4010iNGX10,50201610-201909

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-F4010iNGX10,50201610-201909

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-F4010iZYX10201909

main57605-F4020iNGX10201610-201807

main57605-F4021iNGX10201808-201909

main57605-F4030iNGX50201610-201909

57653AMEMBER, REAR FLOOR CROSS, NO.2

main57653-F4010iNGX10,50201610-201909

90105W0275

main90105-W0275

34 parts on this diagram · 3 diagrams in section
