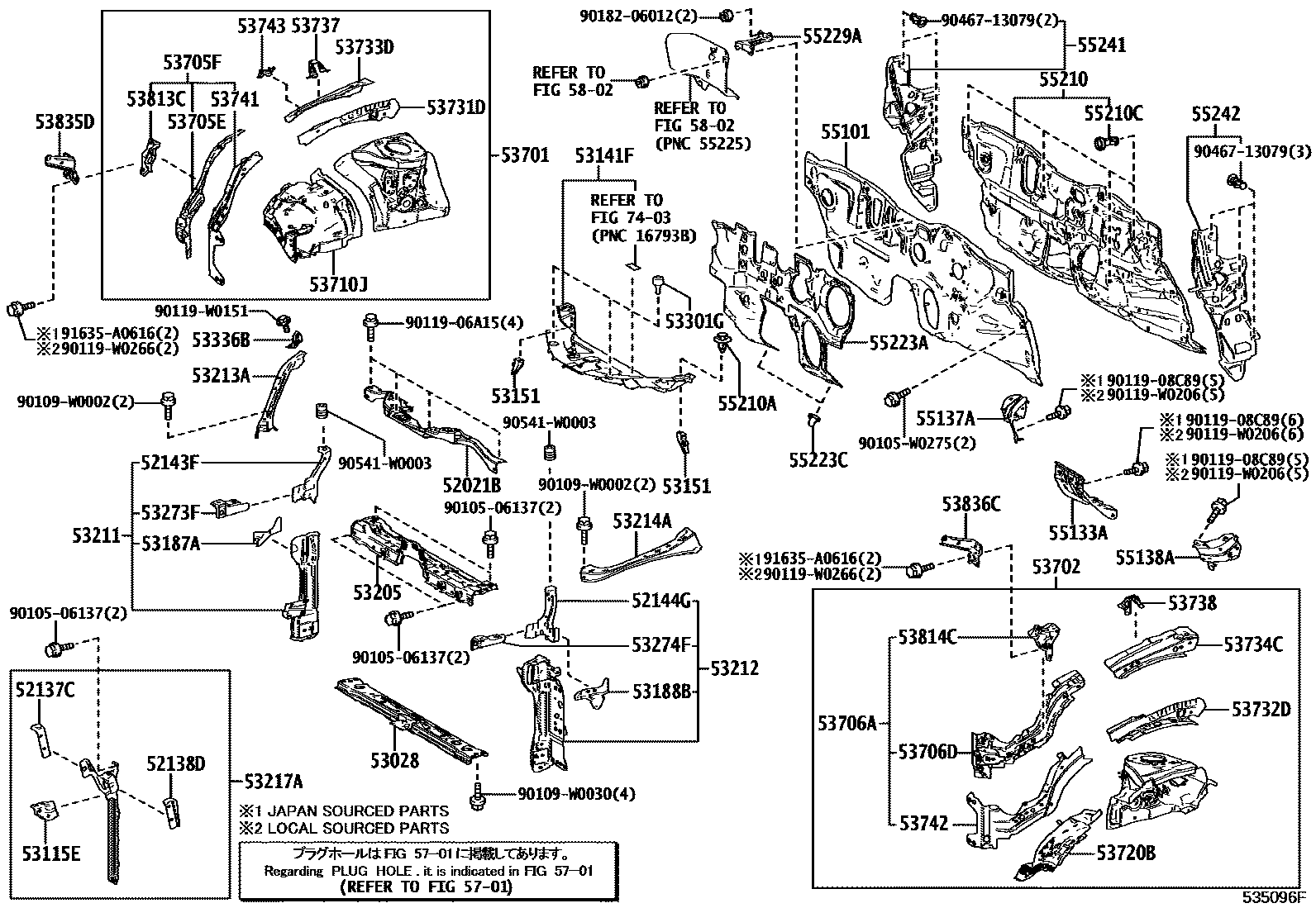

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1 0003 1AIR GUIDE

52021BREINFORCEMENT SUB-ASSY, FRONT BUMPER

main52029-F4010iNGX10,50201610-201909

52137CBRACKET, FRONT BUMPER ARM MOUNTING, NO.3

main52137-F4010iNGX10,50201610-201909

52138DBRACKET, FRONT BUMPER ARM MOUNTING, NO.4

main52138-F4010iNGX10,50201610-201909

52143FBRACKET, FRONT BUMPER SIDE, RH

main52143-F4010iNGX10,50,ZYX10201610-201909

52144GBRACKET, FRONT BUMPER SIDE, LH

main52144-F4010iNGX10,50201610-201909

53028SUPPORT SUB-ASSY, RADIATOR, LOWER

main53028-F4010iNGX10,50201610-201909

53115EBRACKET, RADIATOR GRILLE

main53115-F4010iNGX10,50201610-201909

53141FCOVER, RADIATOR

main53141-F4011iNGX10,50201610-201809

sub53141-F4012

main53141-F4012iNGX10,50201810-201909

main53141-F4021iZYX10201909

53151BRACKET, RADIATOR COVER SUPPORT

main53151-F4010iNGX10,50201610-201909

53187ASTAY, RADIATOR SUPPORT, RH

main53187-F4010iNGX10,50201610-201909

53188BSTAY, RADIATOR SUPPORT, LH

main53188-F4010iNGX10,50201610-201909

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-F4010iNGX10,50201610-201909

53211SUPPORT, RADIATOR, RH

main53202-F4900iNGX10,50201610-201909

53212SUPPORT, RADIATOR, LH

main53203-F4900iNGX10,50201610-201909

53213ASUPPORT, RADIATOR, UPPER RH

main53213-F4010iNGX10,50201610-201909

53214ASUPPORT, RADIATOR, UPPER LH

main53214-F4010iNGX10,50201610-201909

53217ABRACE, HOOD LOCK SUPPORT

main53208-F4900iNGX10,50201610-201909

53273FBRACKET, FRONT BUMPER RETAINER MOUNTING, RH

main53273-F4010iNGX10,50201610-201909

53274FBRACKET, FRONT BUMPER RETAINER MOUNTING, LH

main53274-F4010iNGX10,50201610-201909

53301GCUSHION, HOOD BUMPER

main53119-12150iNGX10,50201610-201909

53336BBRACKET, HOOD STAY

main53336-F4010iNGX10,50201610-201905

sub53336-F4011

main53336-F4011iNGX10,50201905-201909

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-F4010iNGX10,50201610-201909

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-F4010iNGX10,50201610-201909

53705EMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH

main53705-F4010iNGX10,50201610-201909

53705FBRACE SUB-ASSY, FENDER APRON, RH

main53705-F4900iNGX10,50201610-201909

53706ABRACE SUB-ASSY, FENDER APRON, LH

main53706-F4900iNGX10,50201610-201909

53706DMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH

main53706-F4010iNGX10,50201610-201909

53710JAPRON ASSY, FRONT FENDER, RH

main53710-F4010iNGX10,50201610-201909

53720BAPRON ASSY, FRONT FENDER, LH

main53720-F4010iNGX10,50,ZYX10201610-201909

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-F4011iNGX10,50,ZYX10201610-201909

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-F4010iNGX10,50201610-201909

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-F4010iNGX10,50201610-201909

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-F4010iNGX10,50201610-201909

53737PLATE, FRONT APRON TO COWL SIDE MEMBER, RH

main53737-F4010iNGX10,50201610-201909

53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH

main53738-F4010iNGX10,50201610-201909

53741PLATE, FRONT FENDER APRON WIND GUIDE, RH

main53741-F4011iNGX10,50201610-201909

53742PLATE, FRONT FENDER APRON WIND GUIDE, LH

main53742-F4011iNGX10,50201610-201909

53743REINFORCEMENT, FRONT FENDER APRON EXTENSION

main53743-F4010iNGX10,50201610-201909

53813CEXTENSION, FRONT FENDER, RH

main53813-F4010iNGX10,50201610-201909

53814CEXTENSION, FRONT FENDER, LH

main53814-F4010iNGX10,50201610-201909

53835DBRACKET, FRONT SIDE PANEL, RH

main53835-F4010iNGX10,50201610-201909

53836CBRACKET, FRONT SIDE PANEL, LH

main53836-F4010iNGX10,50201610-201909

55101PANEL SUB-ASSY, DASH

main55101-F4010iNGX10,50,ZYX10..LHD..CVT201610-202211

main55101-F4011iNGX10,50,ZYX10..LHD..CVT202211

main55101-F4020iNGX10..LHD..6F201610-202211

main55101-F4021iNGX10..LHD..6F202211

main55101-F4030iNGX10,50..RHD..CVT201610-201810

main55101-F4031iNGX10..RHD..CVT201810-201909

main55101-F4040iNGX10..RHD..6F201610-201810

main55101-F4041iNGX10..RHD..6F201810-201909

55133AREINFORCEMENT, DASH TO FLOOR, RH

main55133-F4010iNGX10,50201610-201909

55137ABRACE, DASH TO FRAME, RH

main55137-F4010iNGX10,50,ZYX10201610-201909

55138ABRACE, DASH TO FRAME, LH

main55138-F4010iNGX10,50201610-201909

55210INSULATOR ASSY, DASH PANEL

main55210-F4010iNGX10,50..LHD201610-201909

main55210-F4020iNGX10,50..RHD201610-201909

55210ACLIP

main90467-07217iZYX10201610-201909

55210CCLIP

main90467-11122iNGX10,50,ZYX10201610-201909

55223AINSULATOR, DASH PANEL, OUTER

main55223-F4010iNGX10,50,ZYX10..LHD201610-202104

sub55223-F4011

main55223-F4011iNGX10,50,ZYX10..LHD202105

main55223-F4020iNGX10,50..RHD201610-202105

main55223-F4021iNGX10..RHD202106

55223CCLIP

main90467-06197iNGX10,50201610-201909

55229APLATE, FRONT FLOOR FOOTREST, NO.1

main55229-F4010iNGX10,50201610-201909

55241SILENCER, FRONT PANEL SIDE, NO.1 RH

main55241-F4010iNGX10,50201610-201909

55242SILENCER, FRONT PANEL SIDE, NO.1 LH

main55242-F4010iNGX10,50201610-201909

5701

5802

7403

9010506137

main90105-06137

90105W0275

main90105-W0275

90109W0002

main90109-W0002

90109W0030

main90109-W0030

9011906A15

main90119-06A15

9011908C89

main90119-08C89

90119W0151

main90119-W0151

90119W0206

main90119-W0206

90119W0266

main90119-W0266

9018206012

main90182-06012

9046713079

main90467-13079

90541W0003

main90541-W0003

91635A0616

main91635-A0616

70 parts on this diagram · 3 diagrams in section
