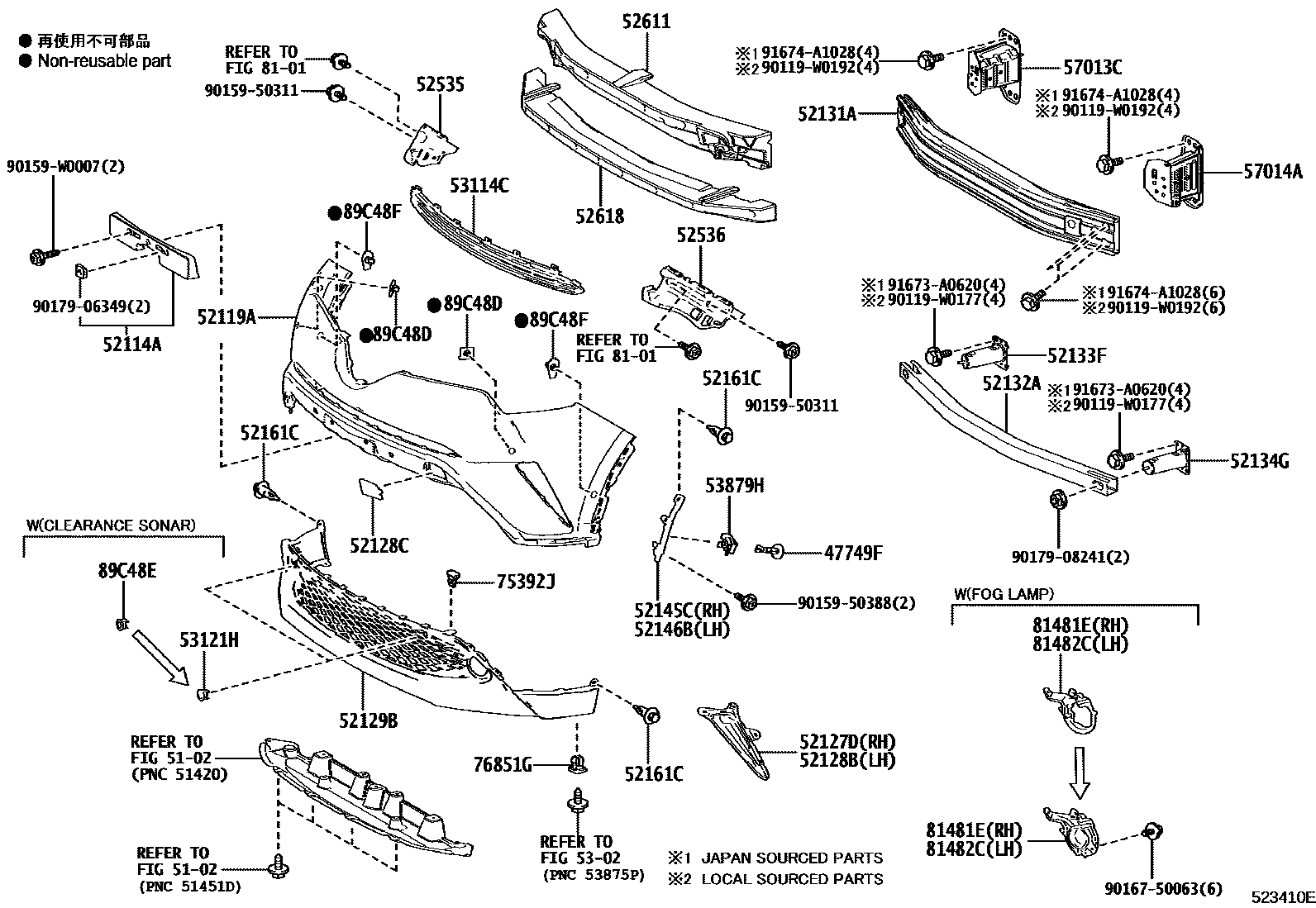

FRONT BUMPER & BUMPER STAY
47749FCLIP, PIN HOLD
5102
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
52119ACOVER, FRONT BUMPER
PAINT REQ.
PAINT REQ.
52127DCOVER, FRONT BUMPER HOLE, RH
52128BCOVER, FRONT BUMPER HOLE, LH
52128CCOVER, FRONT BUMPER HOLE, LH
52129BCOVER, FRONT BUMPER, LOWER
52131AREINFORCEMENT, FRONT BUMPER
52132AREINFORCEMENT, FRONT BUMPER, NO.2
52133FBRACKET, FRONT BUMPER, RH
52134GBRACKET, FRONT BUMPER, LH
52145CBRACKET, FRONT BUMPER SIDE MOUNTING, RH
52146BBRACKET, FRONT BUMPER SIDE MOUNTING, LH
52161CPIECE, FRONT BUMPER
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
52611ABSORBER, FRONT BUMPER ENERGY
52618ABSORBER, FRONT BUMPER, LOWER
5302
53114CGRILLE, RADIATOR, INNER
53121HMOULDING, RADIATOR GRILLE, NO.1
53879HRETAINER, FRONT FENDER LINER
57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
75392JRETAINER, OUTSIDE MOULDING
76851GGROMMET, SCREW, NO.1
8101
81481ECOVER, FOG LAMP, RH
81482CCOVER, FOG LAMP, LH
89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER
89C48ERETAINER, ULTRASONIC SENSOR, FRONT CENTER
89C48FRETAINER, ULTRASONIC SENSOR, FRONT SIDE
90119W0177
main90119-W0177
90119W0192
main90119-W0192
9015950311
main90159-50311
9015950388
main90159-50388
90159W0007
main90159-W0007
9016750063
main90167-50063
9017906349
main90179-06349
9017908241
main90179-08241
91673A0620
main91673-A0620
91674A1028
main91674-A1028
43 parts on this diagram · 3 diagrams in section
