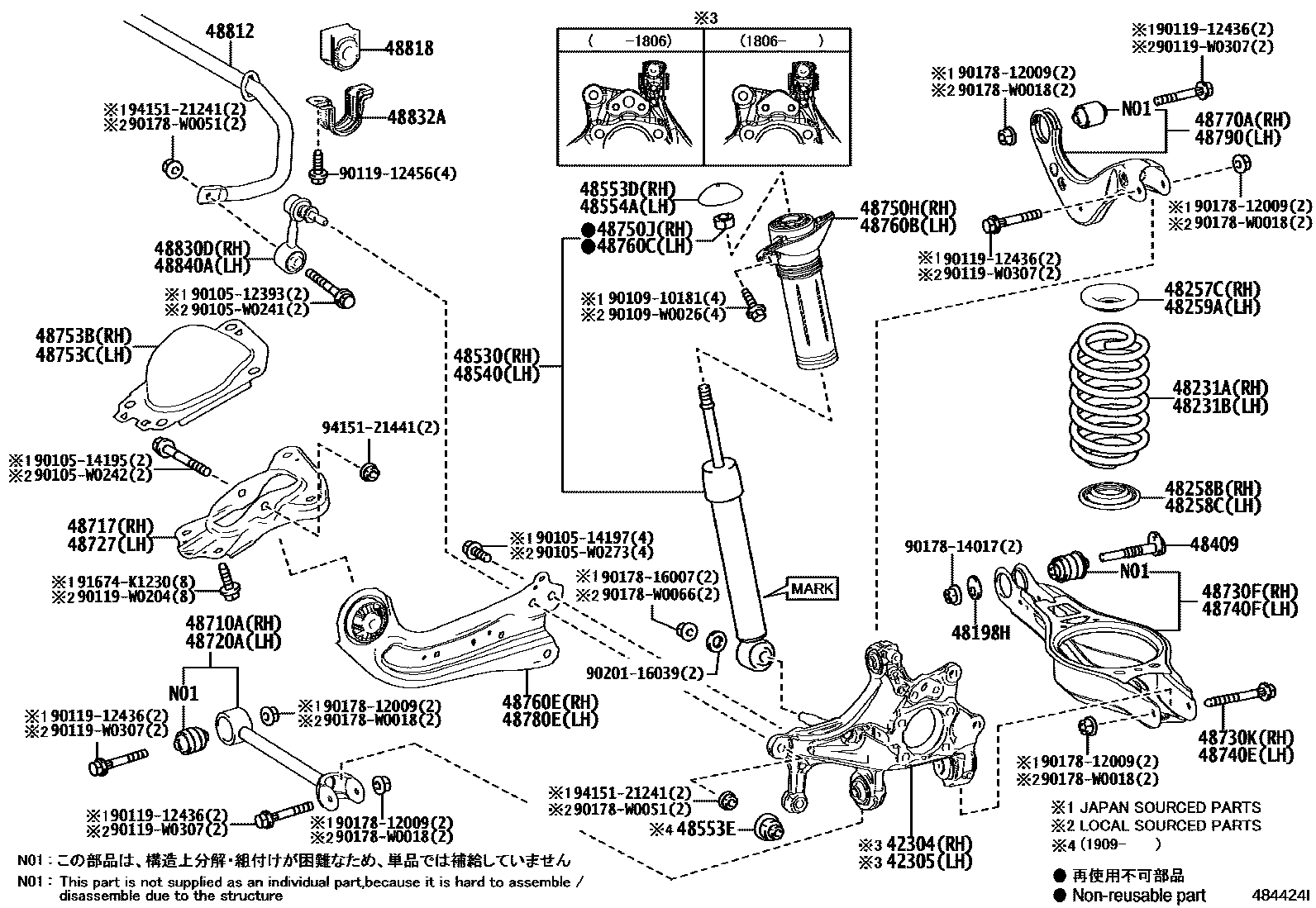

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-F4030iNGX10,50¥27,900201610-201806

sub42304-F4031¥23,300

main42304-F4031iNGX10,50¥23,300201806-201909

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-F4030iNGX10,50¥27,900201610-201806

sub42305-F4031¥23,300

main42305-F4031iNGX10,50¥23,300201806-201909

48198HCAM, CAMBER ADJUST, NO.2

main48198-47010iNGX10,50¥520201610-201909

48231ASPRING, COIL, REAR RH

main48231-F4010iNGX10201610-201909

main48231-F4060iNGX50201610-201708

sub48231-F4061

main48231-F4061iNGX50201709-201801

main48231-F4071iZYX10201909

main48231-F4180iNGX50201802-201909

48231BSPRING, COIL, REAR LH

main48231-F4010iNGX10201610-201909

main48231-F4060iNGX50201610-201708

sub48231-F4061

main48231-F4061iNGX50201709-201801

main48231-F4071iZYX10201909

main48231-F4180iNGX50201802-201909

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-F4010iNGX10,50201610-201909

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-F4010iNGX10,50201610-201909

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-F4010iNGX10,50201610-201909

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-F4010iNGX10,50,ZYX10201610-201909

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-47011iNGX10,50,ZYX10¥640201610-201909

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-F9010iNGX10¥5,100201610-201909

MARK 48530-F4010

main48530-F9020iZYX10¥5,100201909

MARK 48530-F4020

main48530-F9030iNGX50¥5,100201610-201909

MARK 48530-F4030

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-F9010iNGX10¥5,100201610-201909

MARK 48530-F4010

main48530-F9020iZYX10¥5,100201909

MARK 48530-F4020

main48530-F9030iNGX50¥5,100201610-201909

MARK 48530-F4030

48553DCAP, REAR SHOCK ABSORBER, RH

main48553-F4010iNGX10,50201610-201909

48553ECAP

main48553-52030iNGX10,50,ZYX10¥60201909

48554ACAP, REAR SHOCK ABSORBER, LH

main48553-F4010iNGX10,50,ZYX10201610-201909

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-02090iNGX10,50201811-201909

main48710-47010iNGX10,50¥3,710201610-201811

48717BRACKET, REAR SUSPENSION ARM, RH

main48717-F4010iNGX10,50201610-201909

sub48717-F4090

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-02090iNGX10,50201811-201909

main48710-47010iNGX10,50¥3,710201610-201811

48727BRACKET, REAR SUSPENSION ARM, LH

main48727-F4010iNGX10,50201610-201909

sub48727-F4050

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-F4010iNGX10,50201610-201909

48730KBOLT(FOR REAR SUSPENSION ARM NO.2 RH)

main90119-12426iNGX10,50¥240201610-201909

(J)

main90119-W0278iNGX10,50,ZYX10201610-201909

(L)

48740EBOLT(FOR REAR SUSPENSION ARM NO.2 LH)

main90119-12426iNGX10,50,ZYX10¥240201610-201909

(J)

main90119-W0278iNGX10,50,ZYX10201610-201909

(L)

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48730-F4010iNGX10,50201610-201909

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-F4010iNGX10,50¥2,540201610-201909

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main94130-61200iNGX10,50¥100201610-201909

48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH

main48753-F4010iNGX10,50201610-201909

48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH

main48753-F4020iNGX10,50201610-201909

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-F4010iNGX10,50¥2,540201610-201909

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main94130-61200iNGX10,50,ZYX10¥100201610-201909

48760EARM ASSY, TRAILING, REAR RH

main48760-F4010iNGX10,50201610-201909

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-F4010iNGX10,50201610-201909

48780EARM ASSY, TRAILING, REAR LH

main48780-F4010iNGX10,50201610-201909

48790ARM ASSY, UPPER CONTROL, REAR LH

main48790-F4010iNGX10,50201610-201909

48812BAR, STABILIZER, REAR

main48812-F4010iNGX10201610-201909

main48812-F4020iNGX50201610-201909

48818BUSH, STABILIZER, REAR

main48818-10022iNGX50¥1,310201904-201909

main48818-F4010iNGX10,ZYX10201610-201909

main48818-F4020iNGX50201610-201903

sub48818-10022¥1,310

48830DLINK ASSY, REAR STABILIZER, RH

main48830-47010iNGX10,50,ZYX10¥3,640201610-201909

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-F4010iNGX10,ZYX10201610-201909

main48832-F4020iNGX50201610-201909

48840ALINK ASSY, REAR STABILIZER, LH

main48830-47010iNGX10,50¥3,640201610-201909

9010512393

main90105-12393¥190

9010514195

main90105-14195¥310

9010514197

main90105-14197¥190

90105W0241

main90105-W0241

90105W0242

main90105-W0242

90105W0273

main90105-W0273

9010910181

main90109-10181¥160

90109W0026

main90109-W0026

9011912436

main90119-12436¥240

9011912456

main90119-12456¥160

90119W0204

main90119-W0204

90119W0307

main90119-W0307

9017812009

main90178-12009¥120

9017814017

main90178-14017¥120

9017816007

main90178-16007¥160

90178W0018

main90178-W0018¥220

90178W0051

main90178-W0051¥100

90178W0066

main90178-W0066

9020116039

main90201-16039¥120

91674K1230

main91674-K1230¥190

9415121241

main94151-21241¥100

9415121441

main94151-21441¥120

60 parts on this diagram · 2 diagrams in section
