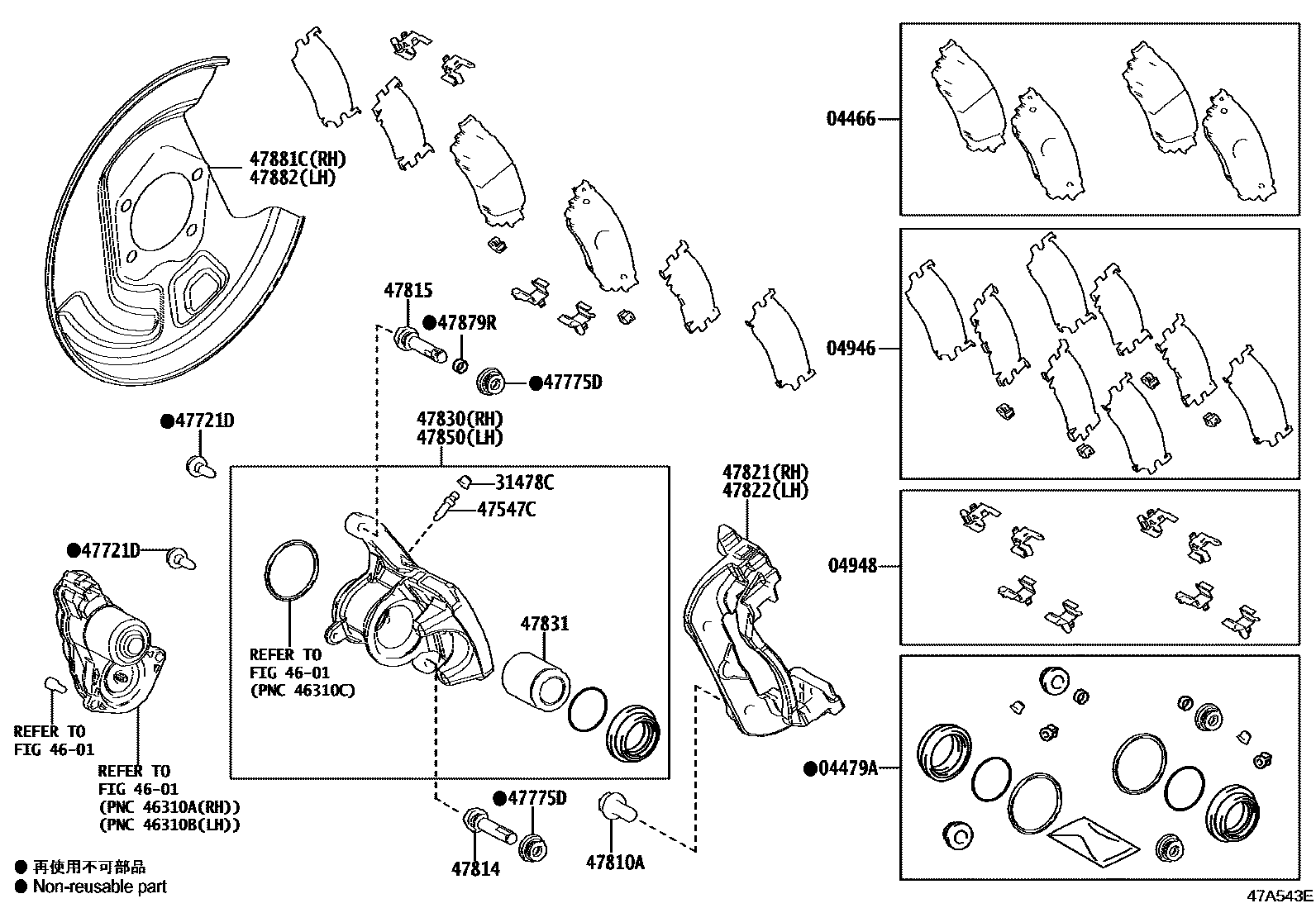

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04466PAD KIT, DISC BRAKE, REAR

main04466-10010iNGX10,50¥6,100201610-201805

MARK AK NS554

main04466-F4010iNGX10,50¥6,300201805-201909

MARK NBK D6360

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-10090iNGX10,50¥3,200201610-201705

sub04479-10091¥3,200

main04479-10091iNGX10,50¥3,200201705-201805

main04479-F4010iNGX10,50201805-201909

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-48130iNGX10,50¥1,780201610-201805

main04946-F4010iNGX10,50201805-201909

04948FITTING KIT, DISC BRAKE, REAR

main04948-58010iNGX10,50¥1,040201610-201805

main04948-F4010iNGX10,50201805-202112

main04948-F4020iNGX10,50,ZYX10202112

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iNGX10,50¥160201610-201805

main90069-39027iNGX10,50201805-201909

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iNGX10,50¥200201610-201805

main47547-F4030iNGX10,50201805-201909

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA603iNGX10,50¥270201610-201805

*8-1.00PX23-12.5

sub90016-AA614¥270

main90069-31417iNGX10,50201805-201909

*8-1.00PX22-10

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-52190iNGX10,50¥210201610-201705

main47875-33270iNGX10,50¥70201705-201805

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174iNGX10,50¥130201610-201909

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-78010iNGX10,50¥510201610-201805

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-78010iNGX10,50¥510201610-201805

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-10030iNGX10,50¥4,380201610-201805

main47821-F9010iNGX10,50201805-201909

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-10030iNGX10,50¥4,380201610-201805

main47822-F9010iNGX10,50201805-201909

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-10030iNGX10,50¥28,800201610-201805

main47830-F4030iNGX10,50201805-201909

47831PISTON, REAR DISC BRAKE

main47831-10030iNGX10,50¥800201610-201805

main47831-F4030iNGX10,50201805-201909

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-10030iNGX10,50¥28,800201610-201805

main47850-F4030iNGX10,50201805-201909

47879RBUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47769-50010iNGX10,50¥50201610-201805

47881CCOVER, DISC BRAKE DUST, REAR RH

main47881-F4010iNGX10,50201610-201805

main47881-F4030iNGX10,50201805-201909

47882COVER, DISC BRAKE DUST, REAR LH

main47882-F4010iNGX10,50201610-201805

main47882-F4030iNGX10,50201805-201909

20 parts on this diagram · 2 diagrams in section
