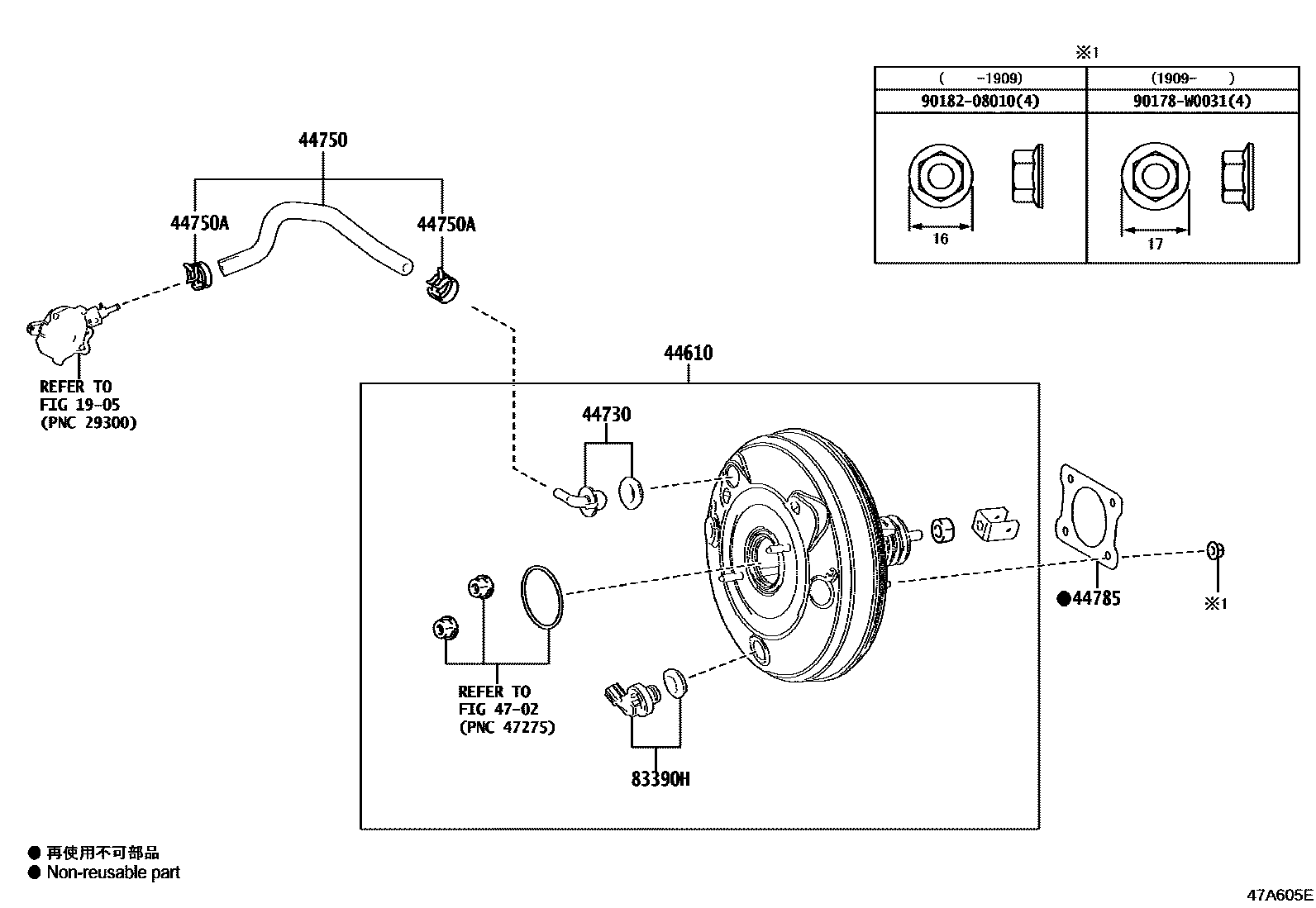

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1905

44610BOOSTER ASSY, BRAKE

main44610-F9030iNGX10..RHD201610-201909

main44610-F9060iNGX10,50..LHD201610-201909

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-F9010iNGX10,50201610-201909

44750HOSE ASSY, VACUUM

main44750-12E40iNGX10..RHD201803-201909

main44750-12E80iNGX10,50..LHD201803-201909

main44750-F4010iNGX10,50..LHD201610-201803

main44750-F4020iNGX10,50..RHD201610-201803

44750ACLIP(FOR VACUUM HOSE ASSY)

main90466-W0008iNGX10,50..LHD201610-201803

main90467-16014iNGX10,50..LHD201803-201909

44785GASKET, BRAKE BOOSTER

main44785-05020iNGX10,50201610-201909

4702

83390HSWITCH ASSY, VACUUM WARNING

main83390-09020iNGX10,50201610-201909

90178W0031

main90178-W0031

9018208010

main90182-08010

10 parts on this diagram · 2 diagrams in section
