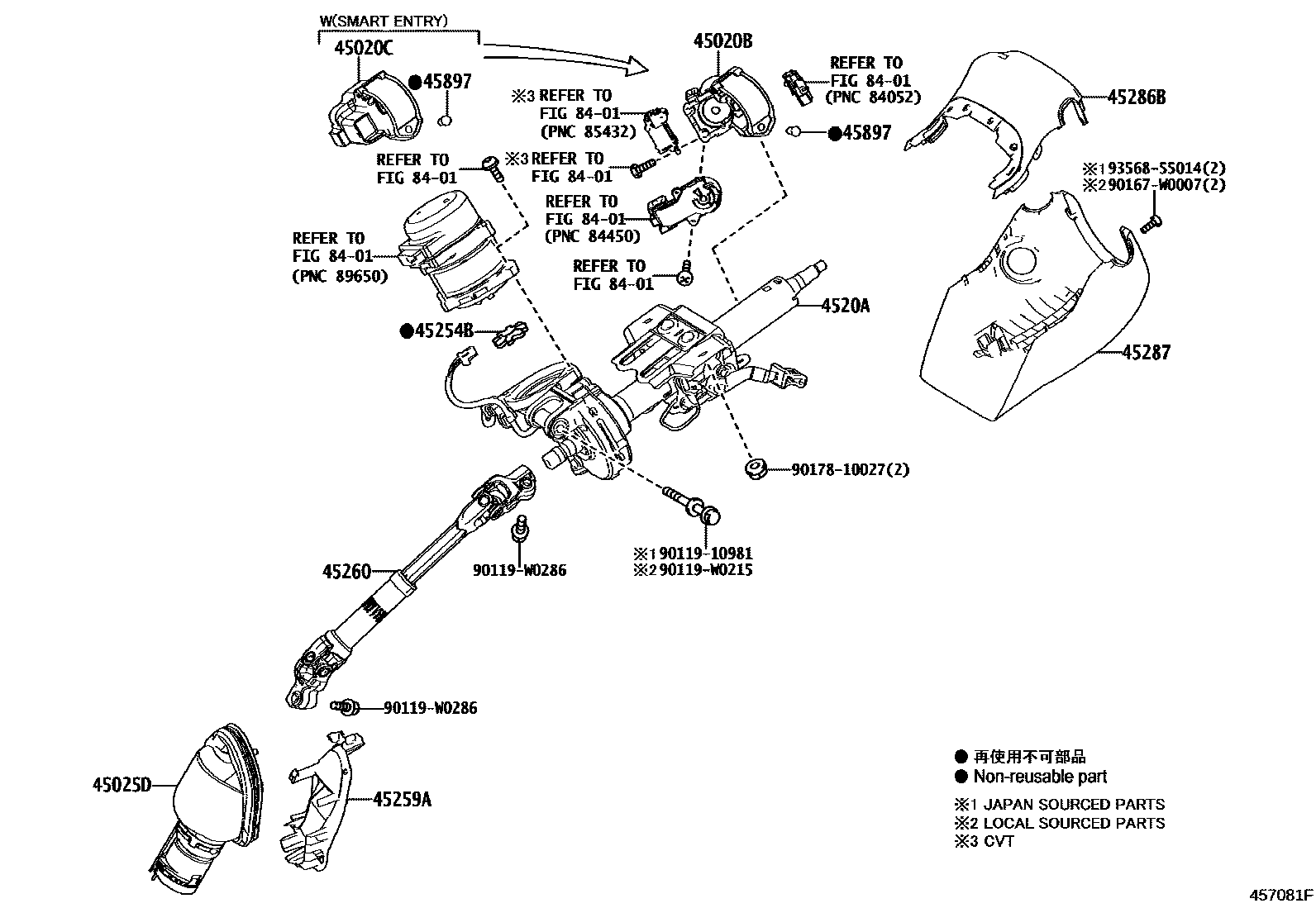

STEERING COLUMN & SHAFT
45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020CACTUATOR ASSY, STEERING LOCK(W/ECU)
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING
45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT
45259ASHEET, COLUMN HOLE COVER SILENCER
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45286BCOVER, STEERING COLUMN, UPR
45287COVER, STEERING COLUMN, LWR
45897BOLT, STEERING LOCK SET
8401
9011910981
main90119-10981
90119W0215
main90119-W0215
90119W0286
main90119-W0286
90167W0007
main90167-W0007
9017810027
main90178-10027
9356855014
main93568-55014
17 parts on this diagram · 2 diagrams in section
