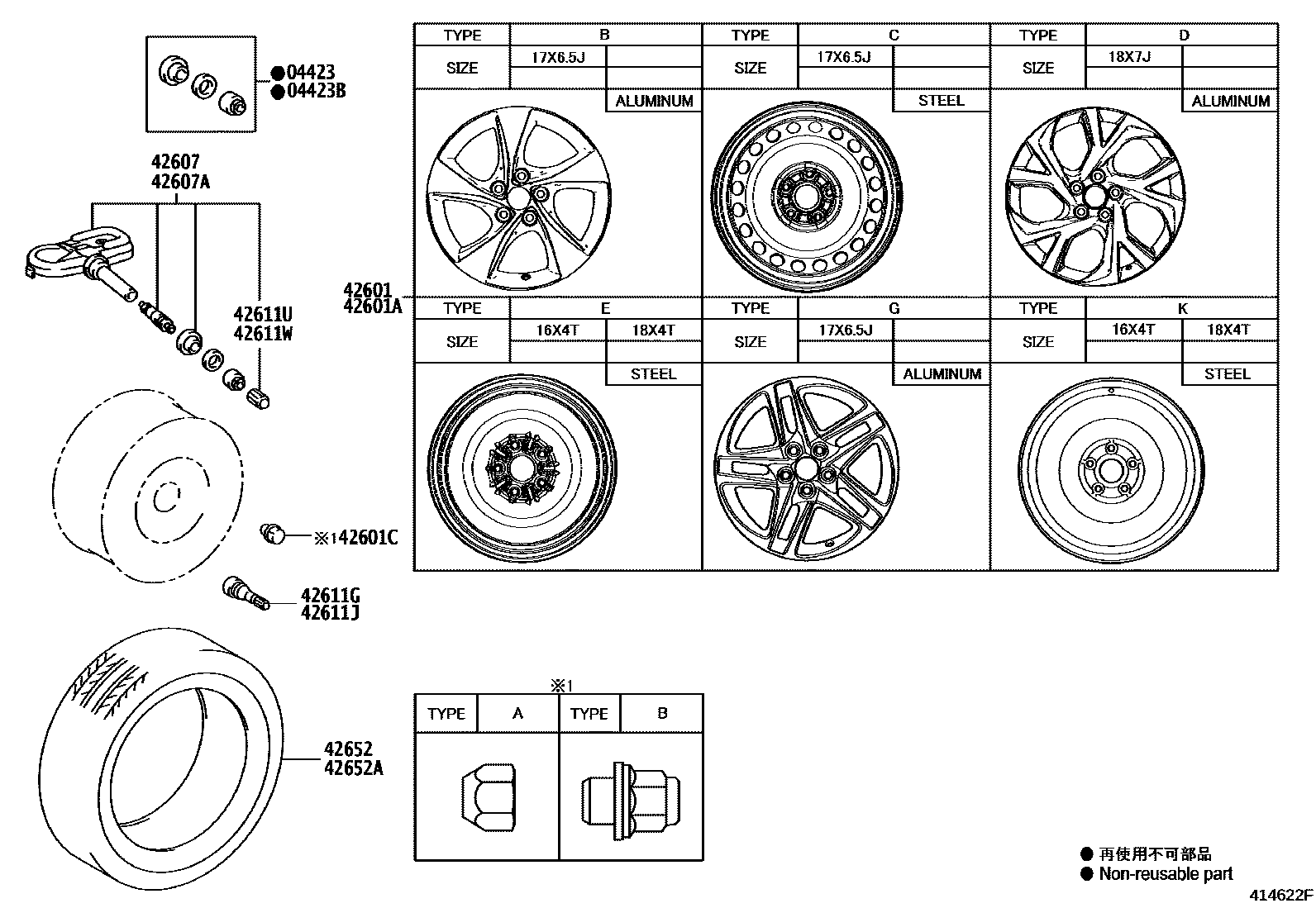

DISC WHEEL & WHEEL CAP

0001 1DISC WHEEL 0002 1DISC WHEEL 0003 1WHELL HUB ORNAMENT & WHEEL CA0004 1BALANCE WEIGHT

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-02010iZYX10201909

04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)

main04423-02010iZYX10201909

42601WHEEL, DISC

main42611-F4010iNGX10..D201610-201909

17X6.5J,#,TYPE C:REFER ILLUST.

main42611-F4030iNGX10,50..E,N201610-201909

17X6.5J, #,TYPE B:REFER ILLUST.

main42611-F4140iNGX10,50,ZYX10..E,N201909

17X6.5J, #,TYPE G:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-F4010iNGX10..D201610-201909

17X6.5J,#,TYPE C:REFER ILLUST.

main42611-F4030iNGX10,50..E,N201610-201909

17X6.5J, #,TYPE B:REFER ILLUST.

main42611-F4140iNGX10,50,ZYX10..E,N201909

17X6.5J, #,TYPE G:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01007iNGX10..D201610-201909

TYPE A:REFER ILLUST.

main90942-01033iNGX10,50..E,N201610-201909

TYPE B:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-F4020iZYX10201909

42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)

main42607-F4020iZYX10201909

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iNGX10,50201610-201909

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iNGX10,50201610-201909

42611UCAP, TIRE VALVE

main90942-W5001iZYX10201909

42611WCAP, TIRE VALVE (FOR SPARE)

main90942-W5001iZYX10201909

42652TIRE

main42652-F4050iNGX10,50201610-201909

215/60R17,MICHELIN

main42652-F4110iNGX10,50201610-201909

215/60R17

main42652-F4120iNGX10,50201610-201707

215/60R17,*D/L

main42652-F4121iNGX10,50201707-201909

215/60R17,*D/L

42652ATIRE (FOR SPARE)

main42652-F4050iNGX10,50201610-201909

215/60R17,MICHELIN

main42652-F4110iNGX10,50201610-201909

215/60R17

main42652-F4120iNGX10,50201610-201707

215/60R17,*D/L

main42652-F4121iNGX10,50201707-201909

215/60R17,*D/L

13 parts on this diagram · 4 diagrams in section
