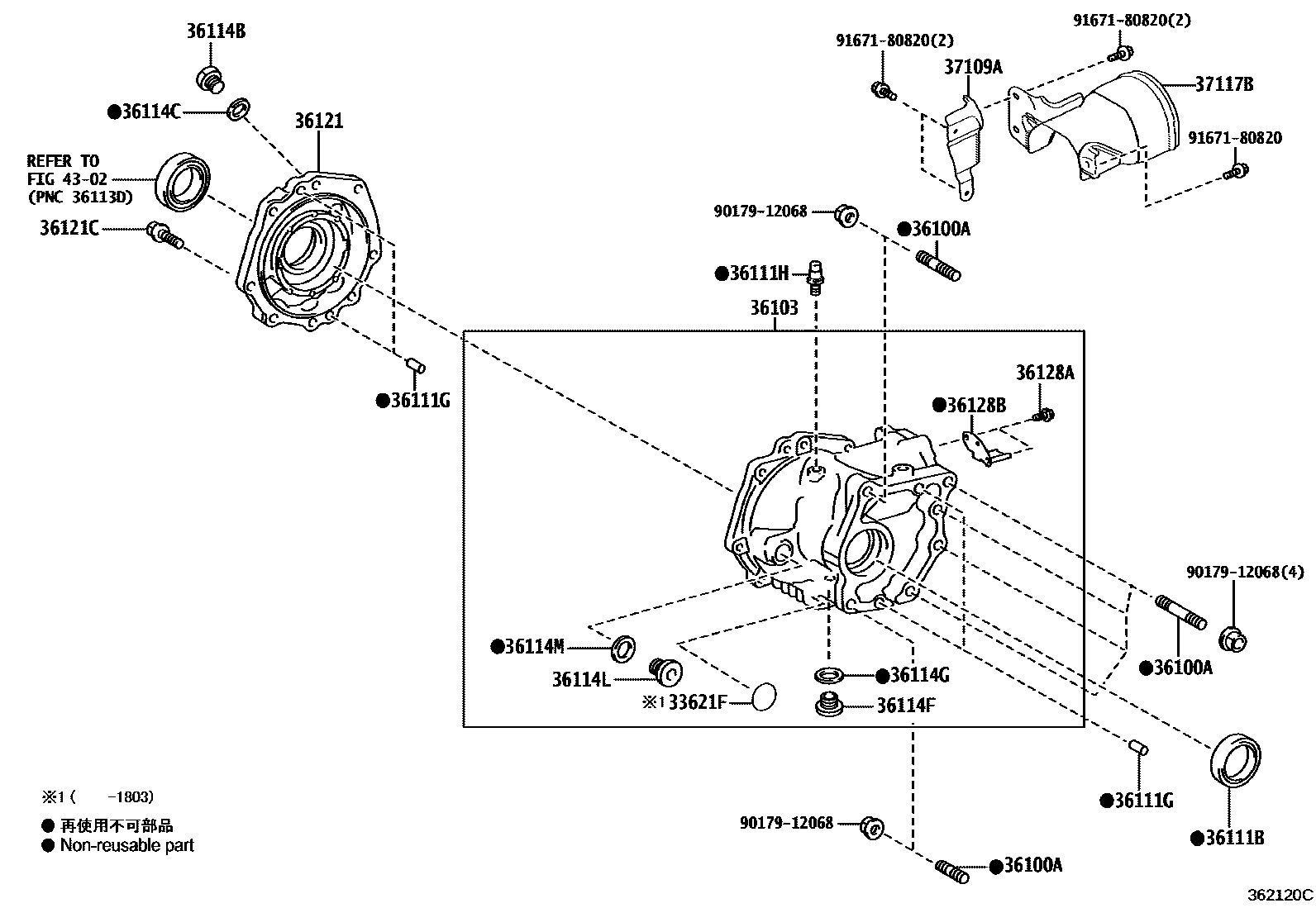

TRANSFER CASE & EXTENSION HOUSING

33621FLABEL, TRANSAXLE OIL INFORMATION

main33621-48020iNGX50201610-201803

36100ABOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)

main90116-12028iNGX50201610-201909

S=22 & 22,L=69

main90116-12034iNGX50201610-201909

S=19 & 19,L=47

main90116-12041iNGX50201610-201909

S=30 & 22,L=64

36103CASE SUB-ASSY, TRANSFER

main36103-42052iNGX50201610-201909

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-49001iNGX50201610-201909

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10017iNGX50201610-201909

L=20,OD=10

36111HPLUG, BREATHER (FOR TRANSFER CASE)

main90930-03133iNGX50201610-201909

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18006iNGX50201610-201909

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main12157-10010iNGX50201610-201909

36114FPLUG (FOR TRANSFER DRAIN)

main90341-18051iNGX50201610-201909

36114GGASKET (FOR TRANSFER DRAIN PLUG)

main12157-10010iNGX50201610-201909

36114LPLUG, FILLER(FOR TRANSFER)

main90341-18023iNGX50201610-201909

36114MGASKET (FOR TRANSFER FILLER PLUG)

main12157-10010iNGX50201610-201909

36121COVER, TRANSFER CASE, NO.1

main36121-52020iNGX50201610-201909

36121CBOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVER)

main91552-81030iNGX50201610-201909

36128ABOLT (FOR BREATHER OIL DEFLECTOR)

main91621-60614iNGX50201610-201909

36128BDEFLECTOR, BREATHER OIL

main36128-52010iNGX50201610-201909

37109ABRACKET SUB-ASSY, PROPELLER SHAFT HEAT INSULATOR

main37109-10010iNGX50201610-201909

37117BINSULATOR, PROPELLER SHAFT HEAT

main37117-10010iNGX50201610-201909

4302

9017912068

main90179-12068

9167180820

main91671-80820

21 parts on this diagram · 1 diagram in section
