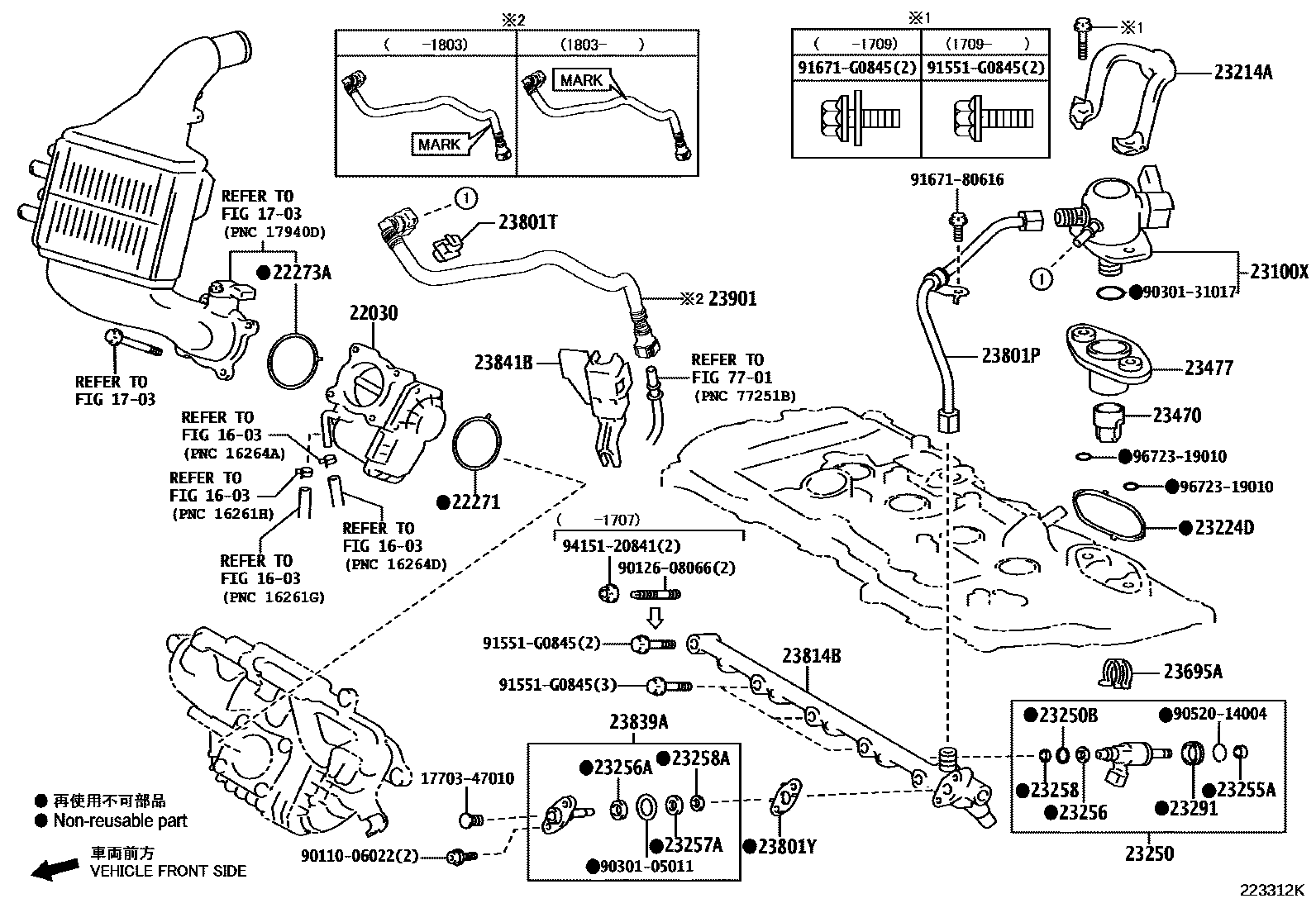

FUEL INJECTION SYSTEM
1603
1703
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22271GASKET, THROTTLE BODY
(L)
(J)
22273AGASKET, THROTTLE BODY, NO.2
23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)
sub23101-47080
23214APROTECTOR, FUEL PUMP
23224DGASKET, FUEL PUMP SPACER
23250INJECTOR ASSY, FUEL
(L)
(J)
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
23250BRING, O(FOR FUEL INJECTOR)
23255ASEAL, FUEL INJECTOR
23256RING, FUEL INJECTOR BACK-UP, NO.1
23256ARING, FUEL PIPE, NO.1
23257ARING, FUEL PIPE, NO.2
23258RING, FUEL INJECTOR BACK-UP, NO.3
23258ARING, FUEL PIPE, NO.3
23291INSULATOR, INJECTOR VIBRATION
TYPE B:REFER ILLUST.
23470LIFTER ASSY, FUEL PUMP
23477GUIDE, FUEL PUMP LIFTER
23695ACLAMP, NOZZLE HOLDER
23801PPIPE SUB-ASSY, FUEL, NO.1
23801TCLAMP OR CLIP, FUEL HOSE(FOR EFI)
23801YGASKET
23814BPIPE, FUEL DELIVERY
23839APLUG, FUEL PIPE, NO.1
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23901TUBE SUB-ASSY, FUEL
MARK = PINK
MARK = WHITE
7701
1770347010CASE SUB-ASSY, BOTTOM AIR CLEANER FILTER
main17703-47010
9011006022
main90110-06022
9012608066
main90126-08066
9030105011
main90301-05011
9030131017
main90301-31017
9052014004
main90520-14004
91551G0845
main91551-G0845
9167180616
main91671-80616
91671G0845
main91671-G0845
9415120841
main94151-20841
9672319010
main96723-19010
39 parts on this diagram · 2 diagrams in section
