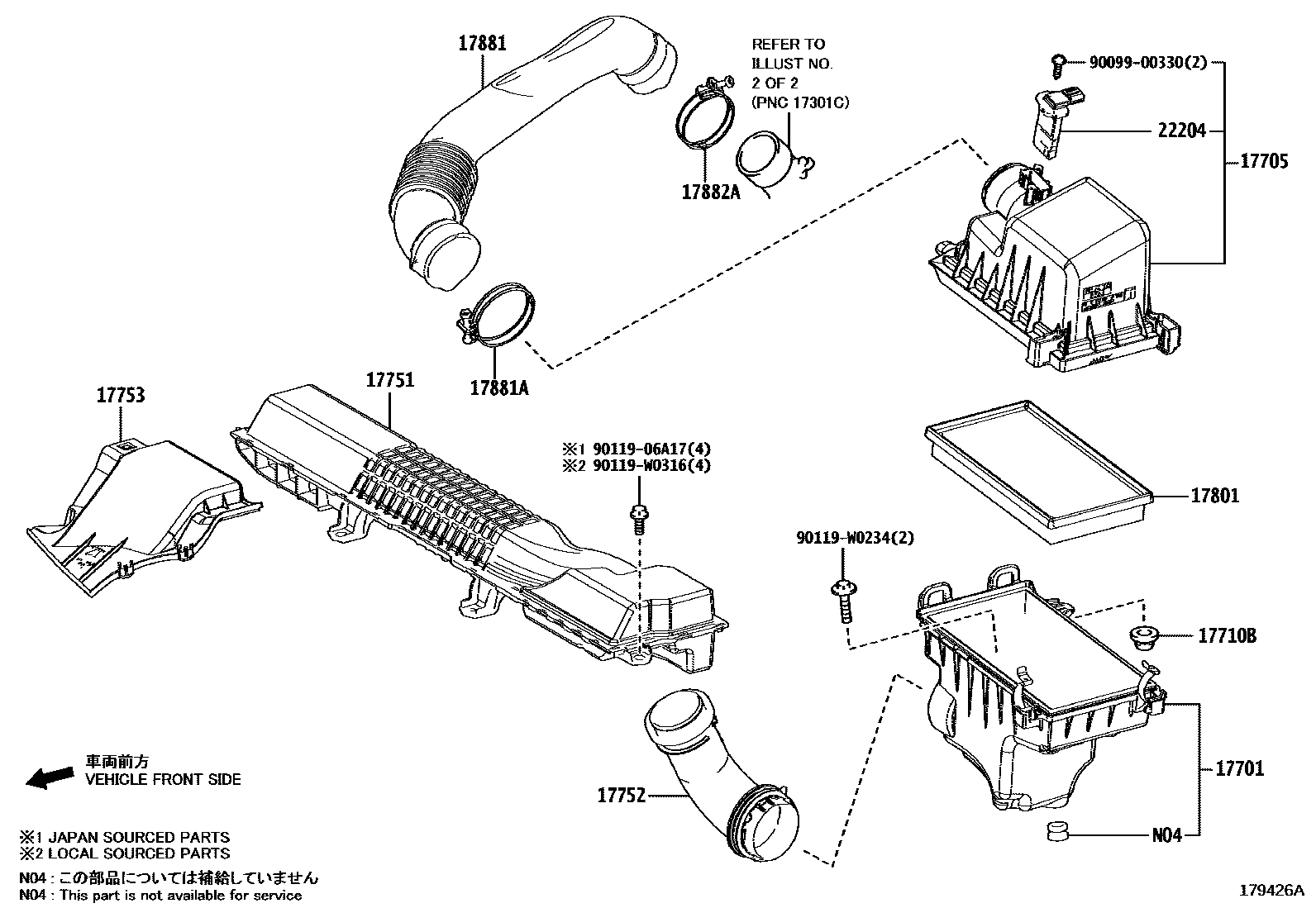

AIR CLEANER
17705CAP SUB-ASSY, AIR CLEANER
17710BGROMMET
17751INLET, AIR CLEANER, NO.1
17752INLET, AIR CLEANER, NO.2
17753INLET, AIR CLEANER, NO.3
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
(L)
(L)
(J)
(J)
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
22204METER SUB-ASSY, INTAKE AIR FLOW
9009900330
9011906A17
90119W0234
main90119-W0234
90119W0316
main90119-W0316
15 parts on this diagram · 3 diagrams in section
