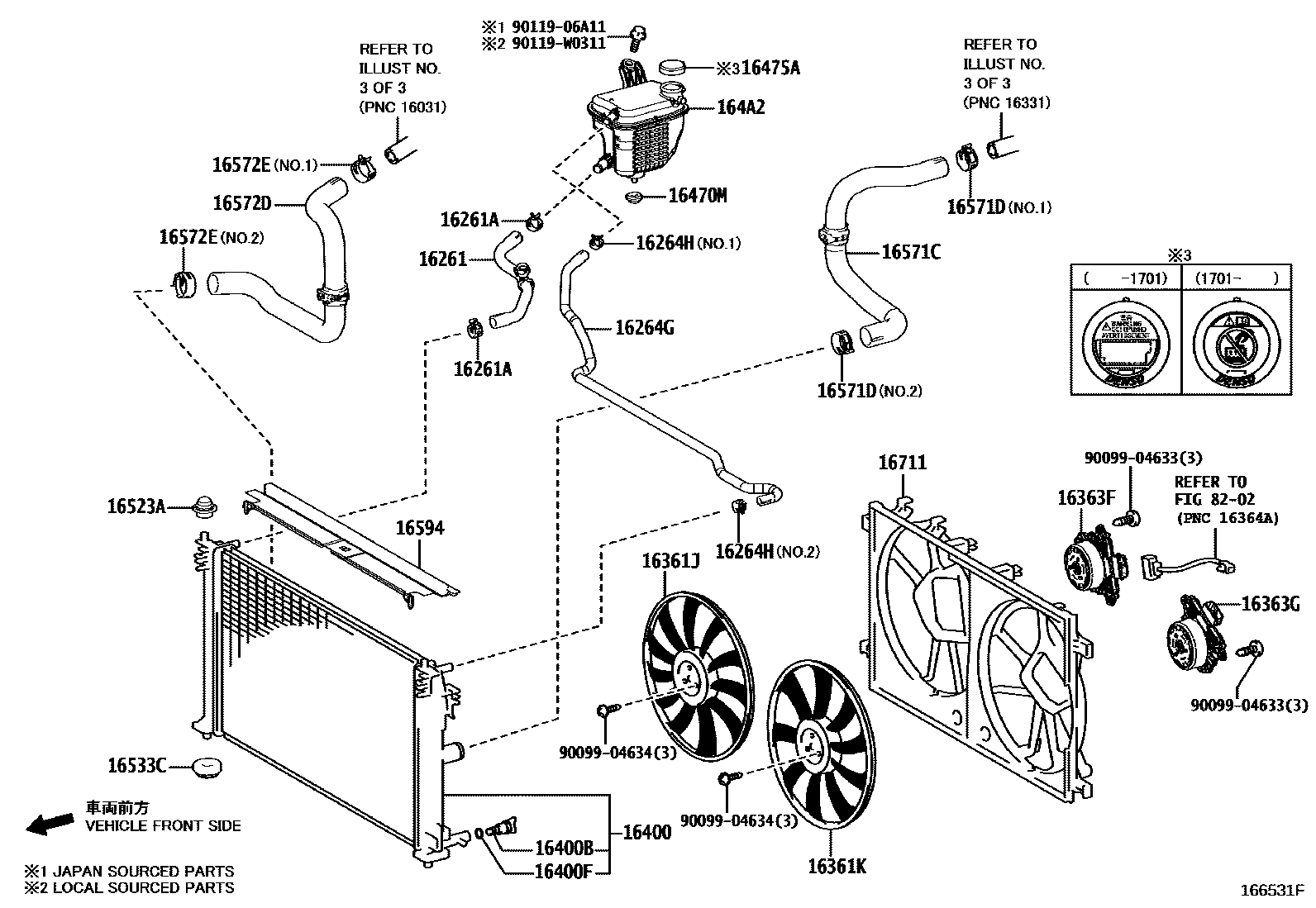

RADIATOR & WATER OUTLET
16261HOSE, WATER BY-PASS
(L)
(J)
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
(L)
(J)
16264HOSE, WATER BY-PASS, NO.2
(L)
(J)
16264GHOSE, WATER BY-PASS, NO.3
16264HCLIP(FOR WATER BY-PASS HOSE NO.3)
NO.2
NO.1
16363FMOTOR, COOLING FAN, RH
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470MGROMMET
164A2TANK, RESERVE SEALED W/O CAP
16523ACUSHION, RADIATOR SUPPORT
16533CGROMMET(FOR RADIATOR SUPPORT)
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
NO.2
(L),NO.2
NO.1
NO.1
NO.2
(J),NO.2
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
NO.2
(L),NO.2
NO.1
(J),NO.2
16594GUIDE, RADIATOR AIR, NO.2
8202
9009904633
main90099-04633
9009904634
main90099-04634
9011906A11
main90119-06A11
90119W0311
main90119-W0311
28 parts on this diagram · 6 diagrams in section
