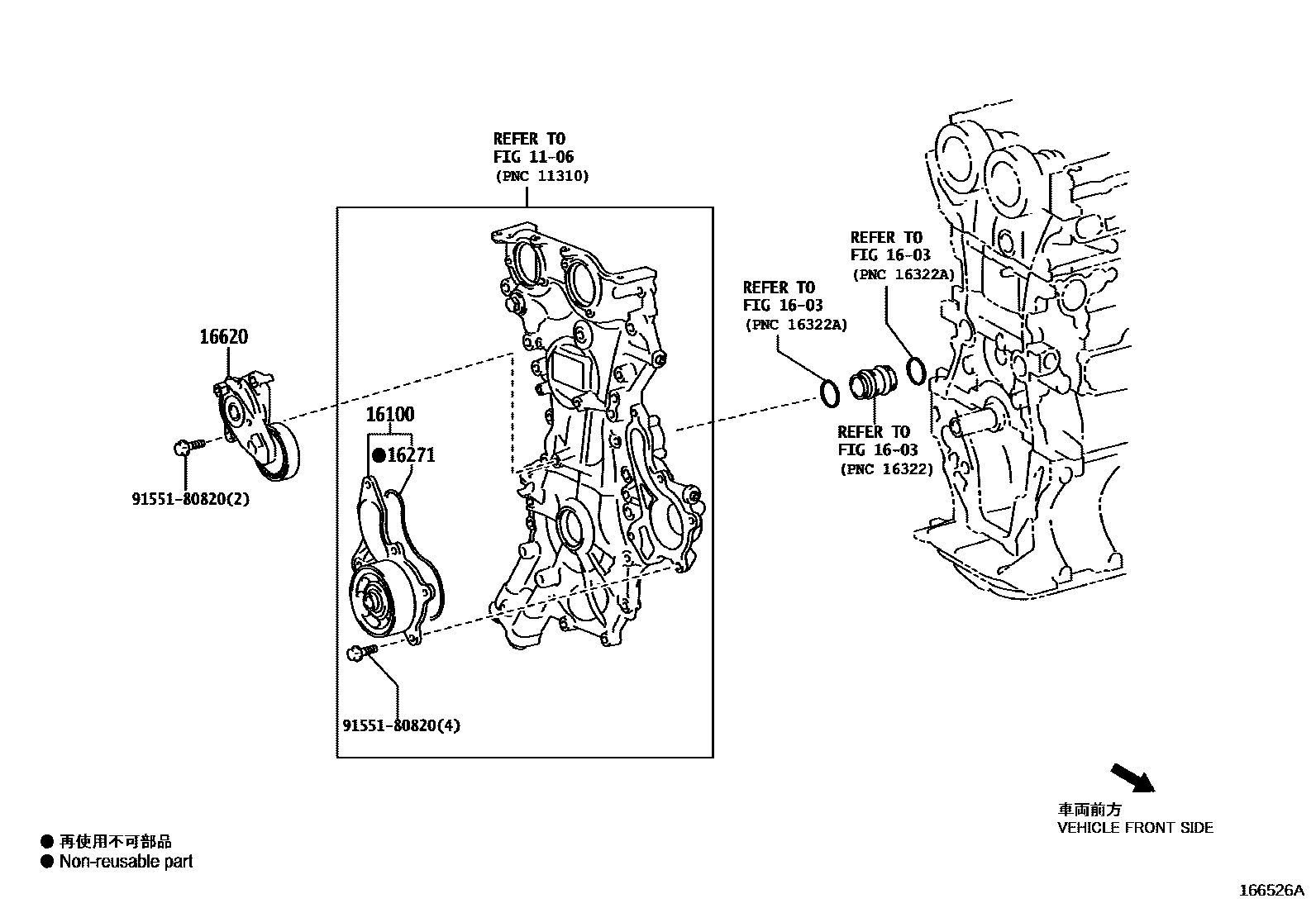

WATER PUMP

0001 1 0002 1

1106

1603

16100PUMP ASSY, ENGINE WATER

main16100-80014i8NRFTS..NGX10,50¥9,000201610-201909

main161A0-39035i2ZRFXE..ZYX10¥15,000201909

16271GASKET, WATER PUMP

main16271-37020i2ZRFXE..ZYX10¥470201909

main16271-47060i8NRFTS..NGX10,50¥410201610-201909

16620TENSIONER ASSY, V-RIBBED BELT

main16620-47060i8NRFTS..NGX10,50¥16,100201610-201612

sub16620-47061¥11,200

main16620-47061i8NRFTS..NGX10,50¥11,200201701-201909

9155180820

main91551-80820¥80

6 parts on this diagram · 2 diagrams in section
