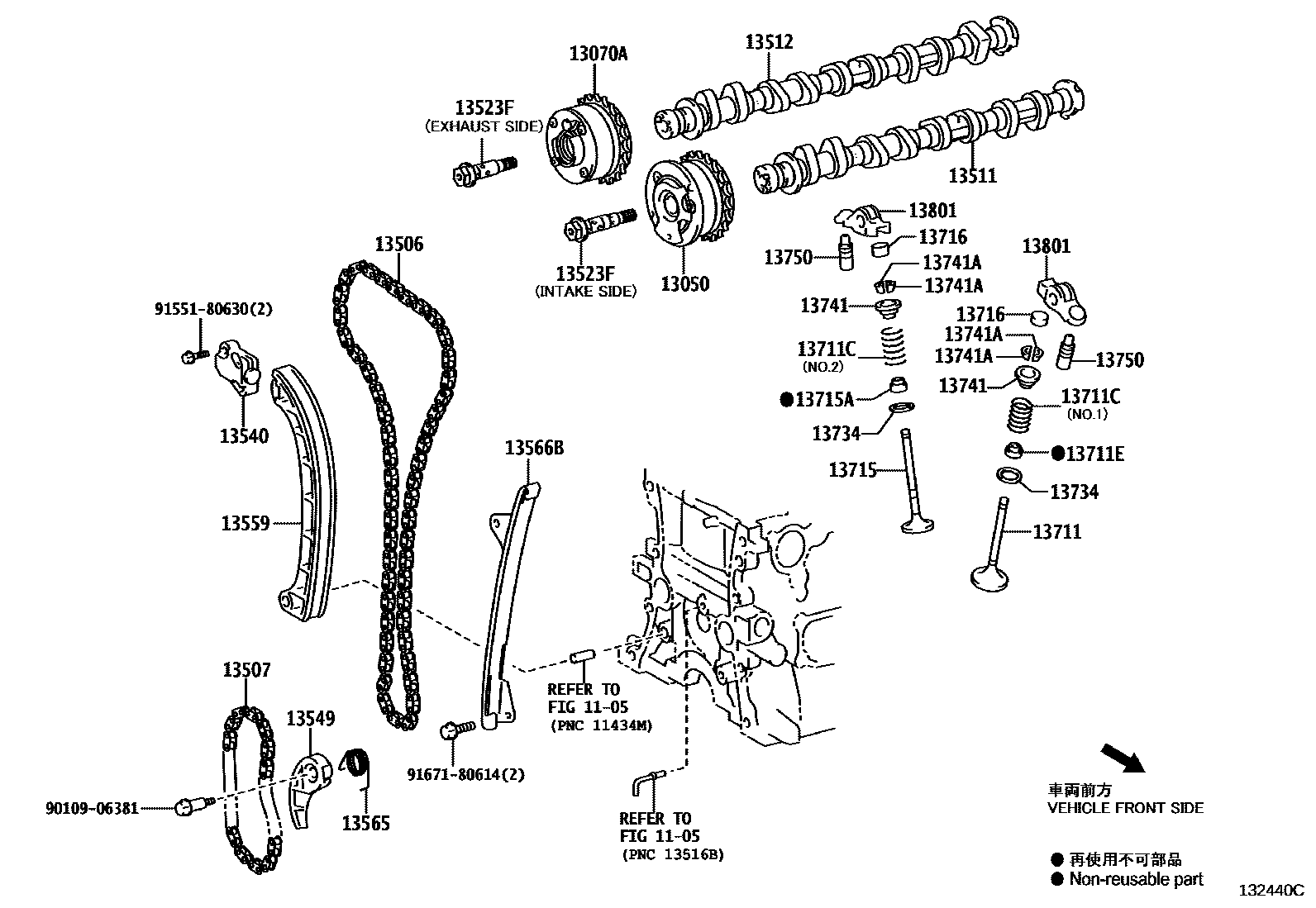

CAMSHAFT & VALVE
1105
13050GEAR ASSY, CAMSHAFT TIMING
13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST
13506CHAIN SUB-ASSY
(L)
(J)
13507CHAIN SUB-ASSY, NO.2
13511CAMSHAFT
*545
*544
13512CAMSHAFT, NO.2
*545
*544
13523FBOLT(FOR CAMSHAFT TIMING GEAR)
INTAKE SIDE
EXHAUST SIDE
13540TENSIONER ASSY, CHAIN, NO.1
(L)
(J)
13549PLATE, CHAIN TENSIONER
MARK=UK
NO MARK
13559SLIPPER, CHAIN TENSIONER
(L)
(J)
13565SPRING, CHAIN DAMPER
(L)
(J)
13566BGUIDE, TIMING CHAIN
13711VALVE, INTAKE
(L)
(J)
13711CSPRING, COMPRESSION(FOR OUTER)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
13711ESEAL, INTAKE VALVE STEM OIL
13715VALVE, EXHAUST
(L)
(J)
13715ASEAL, EXHAUST VALVE STEM OIL
13716CAP, VALVE STEM
(L)
(J)
13734SEAT, VALVE SPRING
(L)
(J)
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
(J)
(L)
13750ADJUSTER ASSY, VALVE LASH
(L)
(J)
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
(L)
(J)
9010906381
main90109-06381
9155180630
main91551-80630
9167180614
main91671-80614
27 parts on this diagram · 2 diagrams in section
