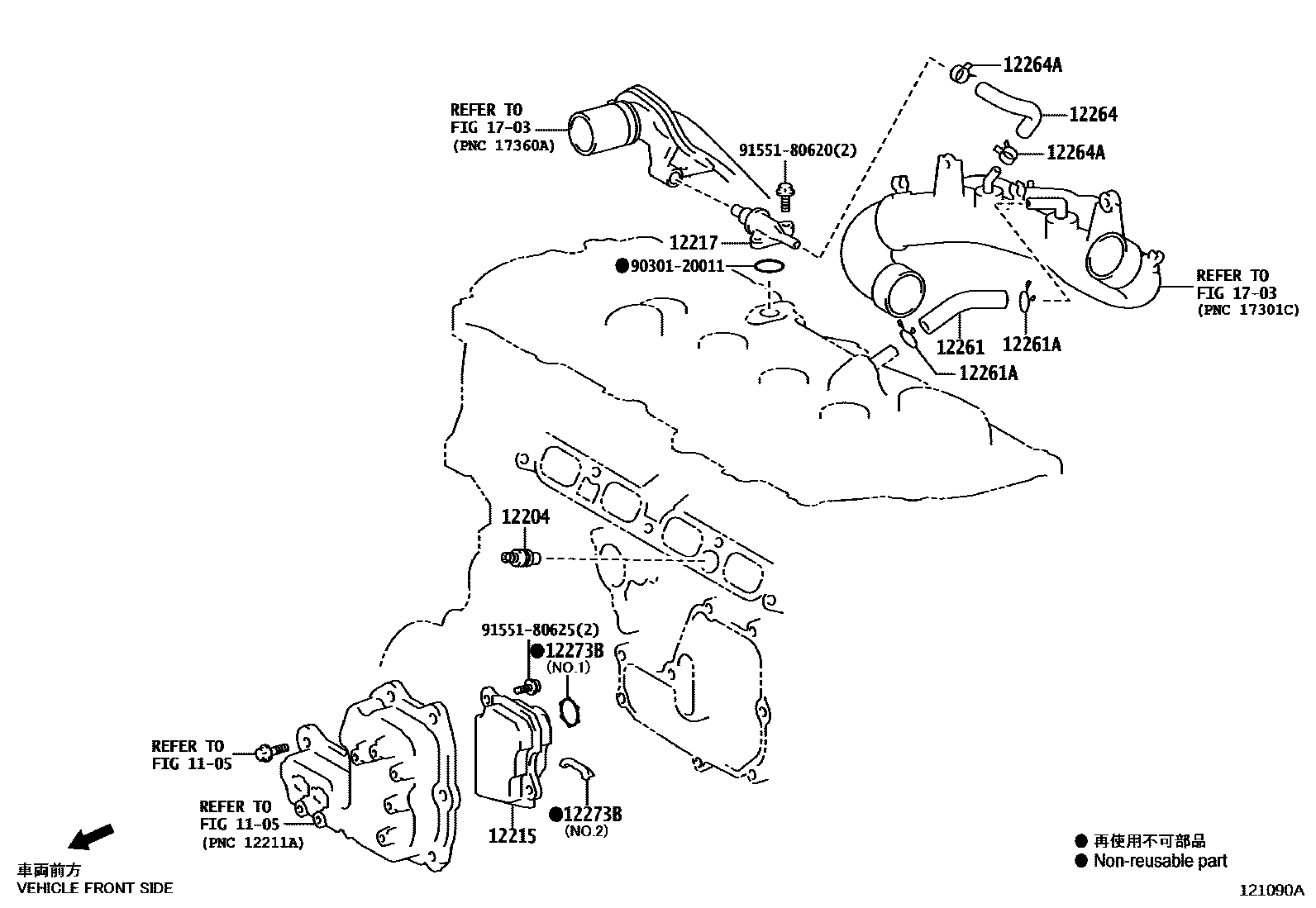

VENTILATION HOSE
1105
12204VALVE SUB-ASSY, VENTILATION
MARK = PURPLE
MARK=GREEN
12215SEPARATOR, CASE
12217EJECTOR, VENTILATION
12261HOSE, VENTILATION
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
NO.2
NO.1
12264HOSE, VENTILATION, NO.4
12264ACLIP(FOR VENTILATION HOSE)
12273BGASKET, OIL SEPARATOR
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
1703
9030120011
9155180620
9155180625
13 parts on this diagram · 2 diagrams in section
