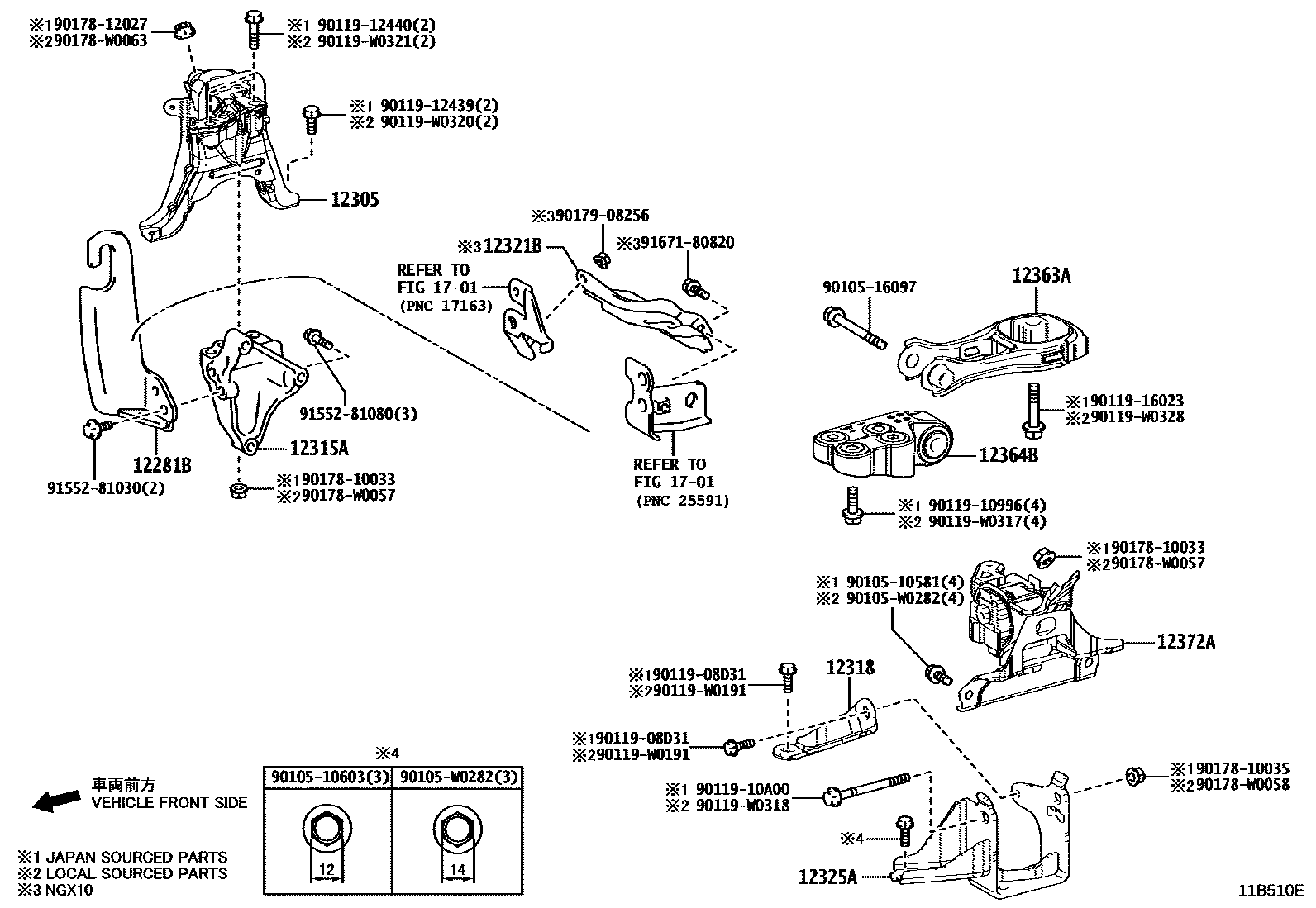

MOUNTING

0001 1 0002 1 0003 1

12281BHANGER, ENGINE, NO.1

main12281-47060i8NRFTS..NGX10,50201610-201909

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-0T332i2ZRFXE..ZYX10201909

main12305-0Y150i8NRFTS..NGX10201610-201811

sub12305-0Y151

main12305-0Y151i8NRFTS..NGX10201812-201909

main12305-0Y160i8NRFTS..NGX50201610-201811

sub12305-0Y161

main12305-0Y161i8NRFTS..NGX50201812-201909

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-37060i2ZRFXE..ZYX10201909

main12315-47081i8NRFTS..NGX10,50201610-201909

12318STAY, ENGINE MOUNTING, LH

main12318-0Y010i8NRFTS..NGX10,50..CVT201610-201909

12321BINSULATOR SUB-ASSY, DRIVE SHAFT HEAT

main43409-02080i8NRFTS..NGX10201610-201911

main43409-02081i8NRFTS..NGX10201912

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-0Y210i8NRFTS..NGX10..6F201610-201909

main12325-0Y220i8NRFTS..NGX10,50..CVT201610-201909

12363AROD, ENGINE MOVING CONTROL

main12363-0Y150i8NRFTS..NGX10..6F201610-201909

main12363-37031i2ZRFXE..ZYX10201909-202302

sub12363-37032

main12363-37032i2ZRFXE..ZYX10202303

main12363-47100i8NRFTS..NGX10,50..CVT201610-201808

sub12363-47101

main12363-47101i8NRFTS..NGX10,50..CVT201809-201909

12364BROD, ENGINE MOVING CONTROL, NO.2

main12364-0T020i2ZRFXE..ZYX10201909

main12364-0Y060i8NRFTS..NGX10..6F201610-201909

main12364-0Y070i8NRFTS..NGX10,50..CVT201610-201909

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-0T571i2ZRFXE..ZYX10201909

main12372-0Y180i8NRFTS..NGX10..6F201610-201805

sub12372-0Y181

main12372-0Y181i8NRFTS..NGX10..6F201806-201811

sub12372-0Y182

main12372-0Y182i8NRFTS..NGX10..6F201812-201909

main12372-0Y190i8NRFTS..NGX10,50..CVT201610-201805

sub12372-0Y191

main12372-0Y191i8NRFTS..NGX10,50..CVT201806-201811

sub12372-0Y192

main12372-0Y192i8NRFTS..NGX10,50..CVT201812-201909

1701

9010510581

main90105-10581

9010510603

main90105-10603

9010516097

main90105-16097

90105W0282

main90105-W0282

9011908D31

main90119-08D31

9011910996

main90119-10996

9011910A00

main90119-10A00

9011912439

main90119-12439

9011912440

main90119-12440

9011916023

main90119-16023

90119W0191

main90119-W0191

90119W0317

main90119-W0317

90119W0318

main90119-W0318

90119W0320

main90119-W0320

90119W0321

main90119-W0321

90119W0328

main90119-W0328

9017810033

main90178-10033

9017810035

main90178-10035

9017812027

main90178-12027

90178W0057

main90178-W0057

90178W0058

main90178-W0058

90178W0063

main90178-W0063

9017908256

main90179-08256

9155281030

main91552-81030

9155281080

main91552-81080

9167180820

main91671-80820

36 parts on this diagram · 3 diagrams in section
