ENGINE OVERHAUL GASKET KIT

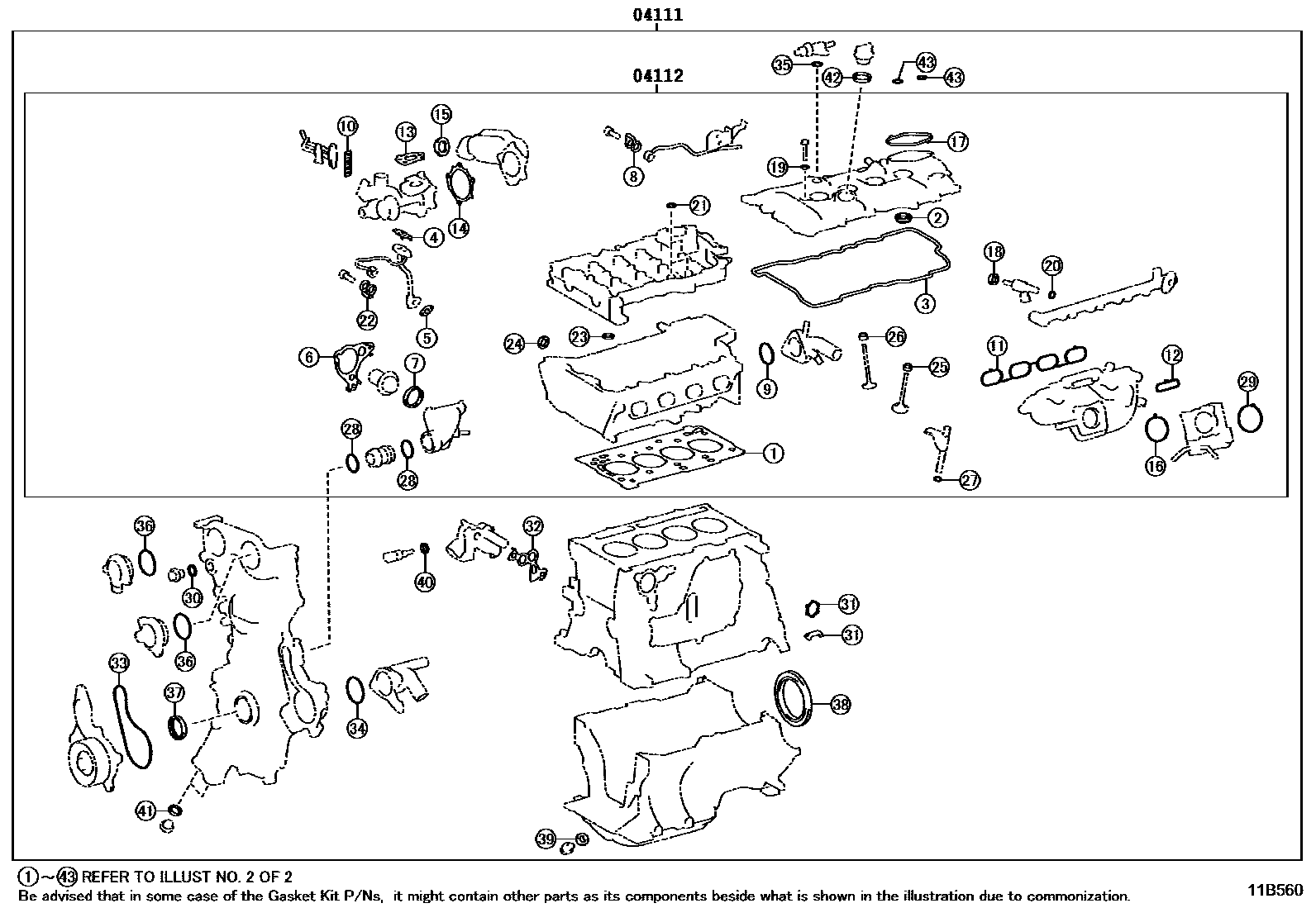

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-0T281i201909-202110
(L)
main04111-0T283i202110
(L)
main04111-37501i¥24,700201909-202110
(J)
sub04111-37502¥22,400
main04111-37502i¥22,400202110
(J)
main04111-47270i¥37,000201610-201711
sub04111-47271¥30,800
main04111-47272i¥27,400201711-201909
main04111-47290i¥34,100201610-201711
sub04111-47291¥28,300
main04111-47291i¥28,300201711-201909
04112GASKET KIT, ENGINE VALVE GRIND
main04112-0T231i201909-202110
(L)
sub04112-0T233
main04112-0T233i202110
(L)
main04112-37381i¥18,200201909-202110
(J)
sub04112-37382¥16,500
main04112-37382i¥16,500202110
(J)
main04112-47180i¥29,900201610-201711
sub04112-47181¥24,900
main04112-47182i¥22,200201711-201909
main04112-47200i¥27,800201610-201711
sub04112-47201¥23,200
main04112-47201i¥23,200201711-201909

2 parts on this diagram · 4 diagrams in section
